• Model NO.：UDL
• Motor Power：0.18kw-160kw
• Voltage：380V ( Also Done as Your Need)
• Frequency：50,60Hz
• Enamelled Wire：Copper Wire ( Also Done Aluminum as Your Need)
• Color：Done as Your Need (Connon Blue)
• Gearbox Body：Cast Iron
• Surface Hardness of Gear：HRC58°-62°
• Protection Grade：IP55
• Gear：20crmnti
• Housing Hardness：Hbs90-240
• Transport Package：Carton ,Plywood Case,Wooden
• Trademark：GPHQ
• Origin：China
• HS Code：84834090
• Production Capacity：200000,Year

Basic Info.

Model NO. UDL Motor Power 0.18kw-160kw Voltage 380V ( Also Done as Your Need) Frequency 50/60Hz Enamelled Wire Copper Wire ( Also Done Aluminum as Your Need) Color Done as Your Need (Connon Blue) Gearbox Body Cast Iron Surface Hardness of Gear HRC58°-62° Protection Grade IP55 Gear 20crmnti Housing Hardness Hbs90-240 Transport Package Carton /Plywood Case/Wooden Trademark GPHQ Origin China HS Code 84834090 Production Capacity 200000/Year

Product Description

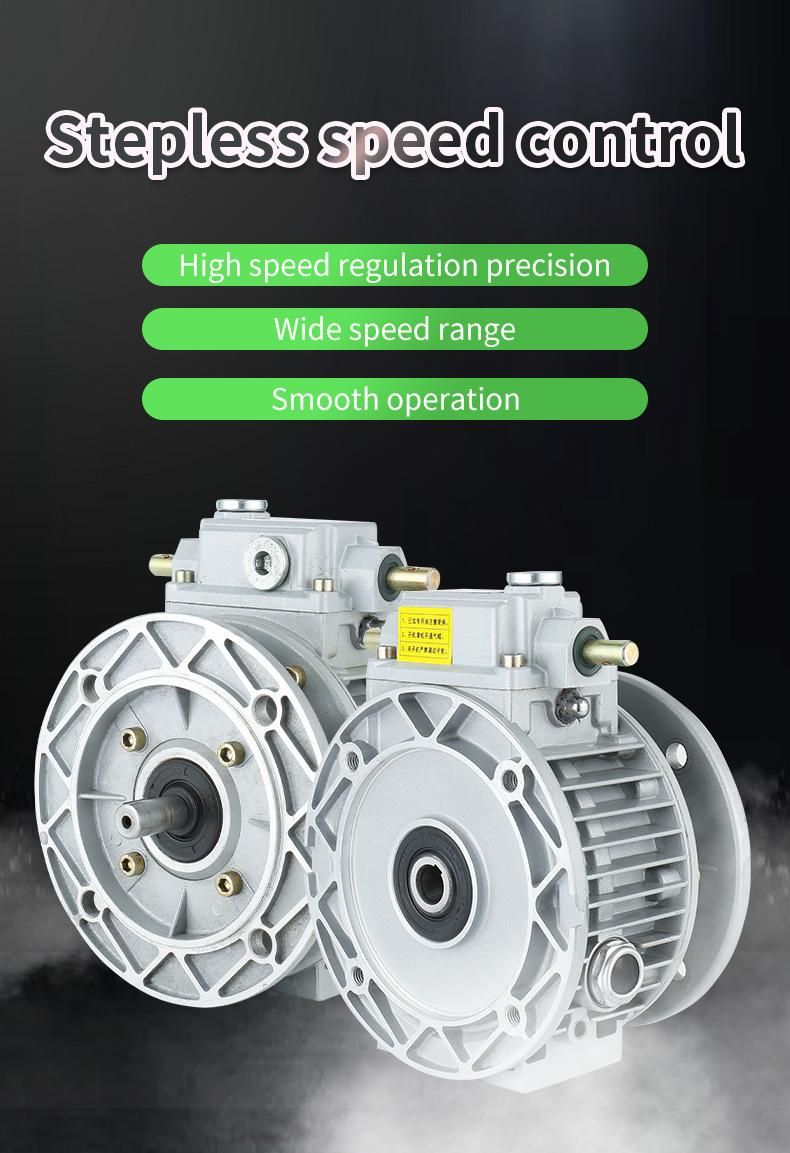

Stepless speed Variator

High modularity
- Matched with a large range of gearboxes, they are suitable to modular assembling of flanges, feet and torque arms.

High versatility
- 11 sizes, more than 200 versions, with wide range of different mounting positions.

High performances
- Power from 0.18 kW to 7.5 kW.
- Max torque 3000 Nm.
- Up to 6000 Nm when combined with bevel helical gearboxes.
- With the differential device, output speed can be brought to "zero" speed, when the motor is running.

High reliability
- Strengthened box for heavy duty applications.
- Planets and races are made in special steel 100Cr6 and are in oil bath, that guarantee the best conditions of transmission of the motion by friction.

The design of UDL series stepless speed variator compromises the advanced technology both at home and abroad. The products include the following main characteristics:
     1. High speed-regulating precision: up to 0.5-1 rotation.
     2. Large speed -changing range: The speed ratio ranges from 1:1.4 to 1:7 freely.
     3. High in strength and long in service life.
     4. Convenient to regulate the speed.
     5. Continuous in running, front-to-back in running direction, smooth in driving, stable in performance and low in noise.
     6. Full in sealing and suitable for any environment.
     7. Compact in structure and small in volume.
     8. Made of high-quality aluminum alloy die cast into forming, good-looking in appearance, light in weight and it never gets rusty.
     9. Good in adaptation: UDL series stepless speed variators can be combined with all kinds of speed reducers, as to achieve low stepless speed changing.











FAQ
1, Q:what's your MOQ for udl speed contorller   ?
A: 1pc is ok for each type electric gear box  motor

2, Q: What about your warranty for your stepless governor ?

A: one year ,but except man-made destroyed

3, Q: which payment way you can accept ?
A: TT, western union .

4, Q: how about your payment way ?
A: 100%payment in advanced less $5000 ,30% payment in advanced payment , 70% payment before sending over $5000.

5, Q: how about your packing of speed reduction motor  ?
A: plywood case ,if size is small  ,we will pack with pallet for less one container

6, Q: What information should be given, if I buy electric helical geared motor  from you ?
A: rated power,  ratio or output speed,type ,voltage , mounting way , quantity , if more is better ,
