Vertical Slewing Gear for Single Axis PV, Cpv Tracker
Coresun Drive Equipment Changzhou Co., Ltd.- Feature：Corrosion-Resistant
- Step：Double-Step
- Openness：Closed
- Installation：Vertical
- Transmission Form：Worm
- Type：Single-Row Ball
Base Info
- Model NO.：VH7-60S92-RC
- Output Torque：6300n.M
- Output Speed：0.025rpm
- Holding Torque：45kn.M
- Gear Ratio：60:1
- IP：65
- Corrosion Protection：C3
- Tilting Moment Torque：10kn.M
- Color：Grey
- Electric Motor：Yes
- Transport Package：Standard Exporting Package
- Specification：VH7-60S92-RC
- Trademark：Coresun Drive
- Origin：Changzhou
- HS Code：8483409000
- Production Capacity：3000PCS,Month
Description
Model
VH7
IP
IP6
Brand
Coresun Drive
Type
Vertical
Material
42CrMo,50Mn
Output Torque
6.3KN.m
Tilting Moment Torque
10KN.m
Holding Torque
45KN.m
Static Axial Rating
350KN
Static Radial Rating
120KN
Square Tube
Motor
Gear Ratio
60:1
Efficiency
40%
Products Photo

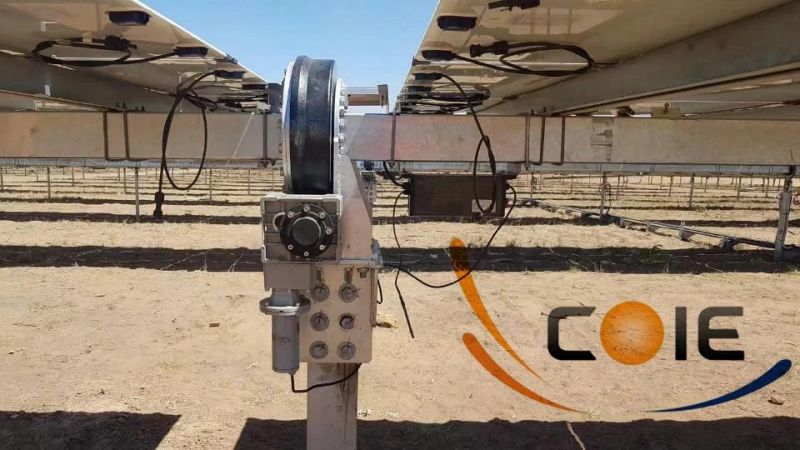

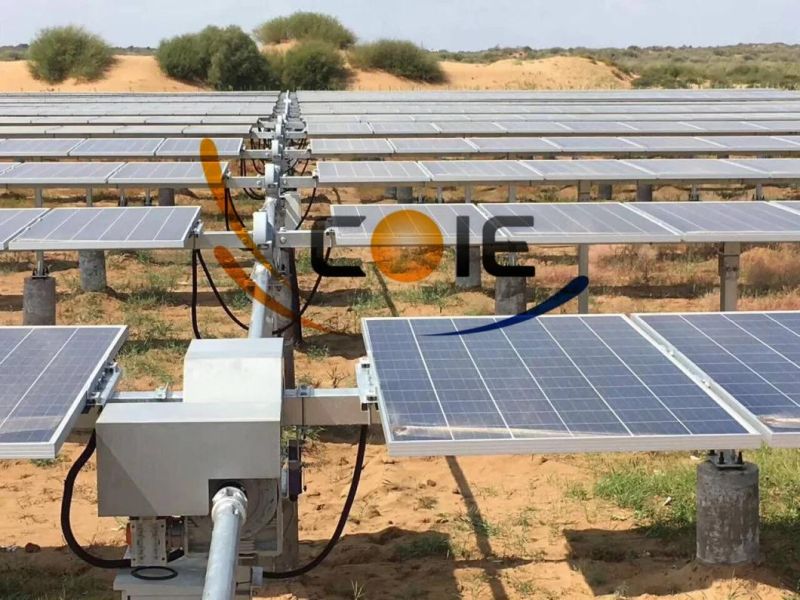

Products Application
Coresun Drive slewing drive VH7 is a good solution to 60-96pcs single axis solar tracker design.
The production is widely export to USA,Canada,Germany,Spain,France,Poland,Turkey,Korea,Australia,South Africa,India, Brazil,Chile...

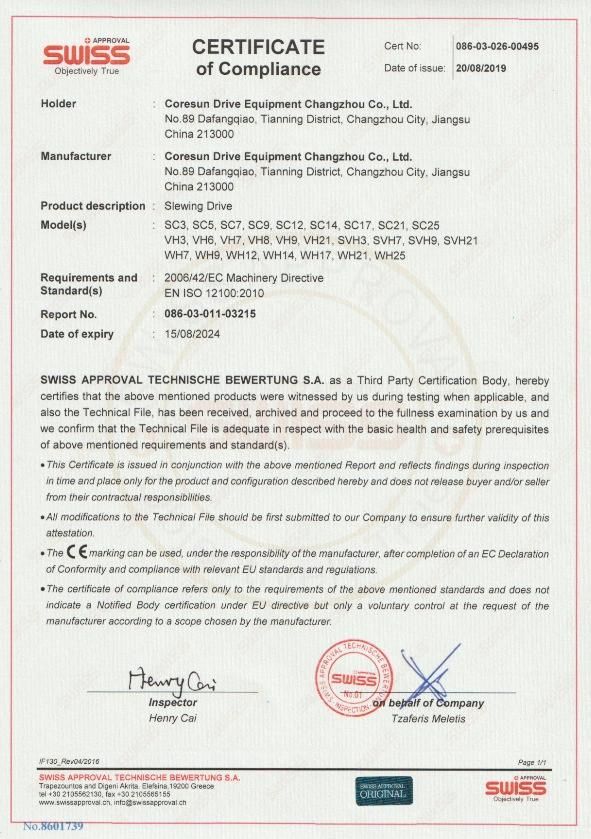

Products Certificate
Our slewing drive gear motor have arroved by CE and ISO2001 certificate.
