Large Diameter Girth Gear for Rotary Kilns and Ball Mill

CITICHL HEAVY INDUSTRIES CO., LTD.
  • Application：Machinery, Industry
  • Hardness：According to Customer′s Requirement
  • Gear Position：External Gear
  • Manufacturing Method：Cast Gear
  • Toothed Portion Shape：Spur Gear
  • Material：Cast Alloy Steel, Cast Carbon Steel, Forged Alloy

Base Info

  • Model NO.：Circular Gear
  • Type：Circular Gear
  • Name：Girth Gear
  • ISO 9001:: 2008 Certificated：BV & SGS Certificated
  • Manipulate Way：Forced Manipulation
  • Changes Way：Stepped
  • Module：Less Than or Equal to 45
  • Diameter：15 M
  • Transport Package：in Container
  • Specification：According to Customer′ s Requirement
  • Trademark：citictic
  • Origin：Luoyang, China
  • HS Code：8479909090
  • Production Capacity：500pieces,Year

Description

UT ReportAfter WeldedAfter Semi Finish Machining8PTDefect AreaNo Defect IndicatedAfter Digging
After WeldedPT Record9Mark InspectionWhole BodyManufacturing StandardFinal InspectionPictures10Appearance InspectionWhole BodyCIC's RequirementBefore Packing
(Final Inspection) 11Anti-rust InspectionWhole BodyAgreed Anti-rust AgentBefore PackingPictures 12Packing InspectionWhole BodyAgreed Packing FormDuring PackingPicturesLarge Diameter Girth Gear for Rotary Kilns and Ball Mill
 Testing Process:
· QA DOC: Chemical Composition Report, Mechanical Properties Report, UT Report, Heat Treatment Report, Dimensions Check Report
· The data on chemical composition report and mechanical properties report are approved by third party, Luoyang Ship Material Research Institute, CSIC.
· UT test: 100% ultrasonic test according to EN10228-3, SA388, Sep 1921 C/c etc.

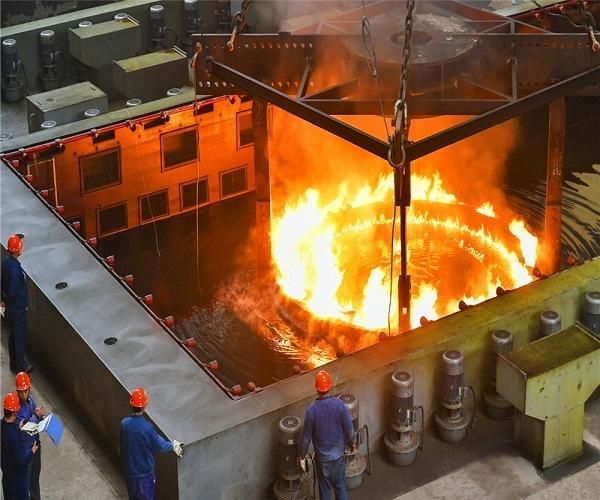

· Heat Treatment Report: provide original copy of heat treatment curve/time table.
Large Diameter Girth Gear for Rotary Kilns and Ball Mill
Large Diameter Girth Gear for Rotary Kilns and Ball Mill
Large Diameter Girth Gear for Rotary Kilns and Ball Mill
