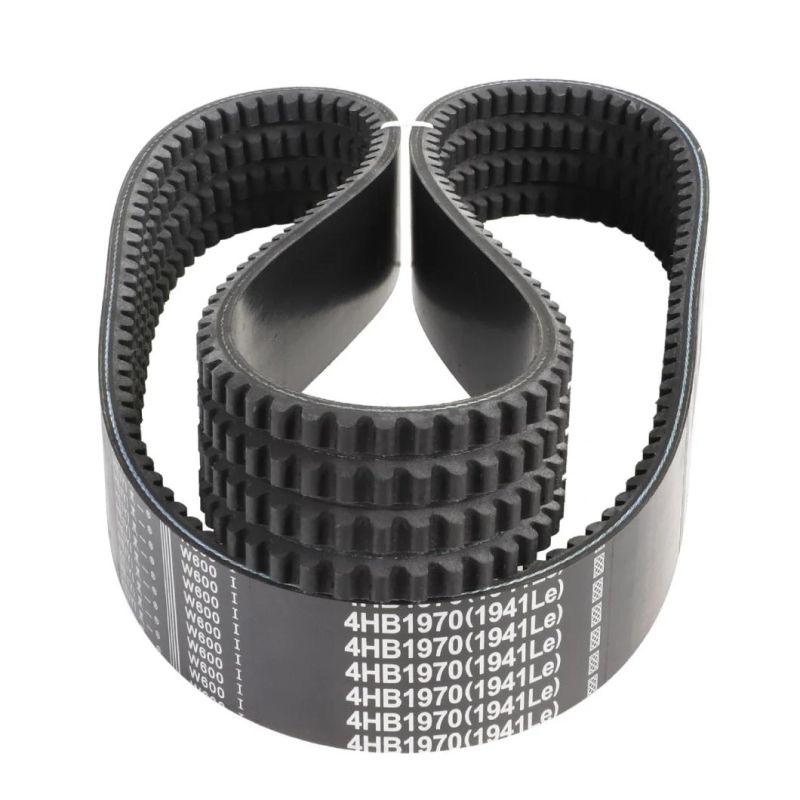

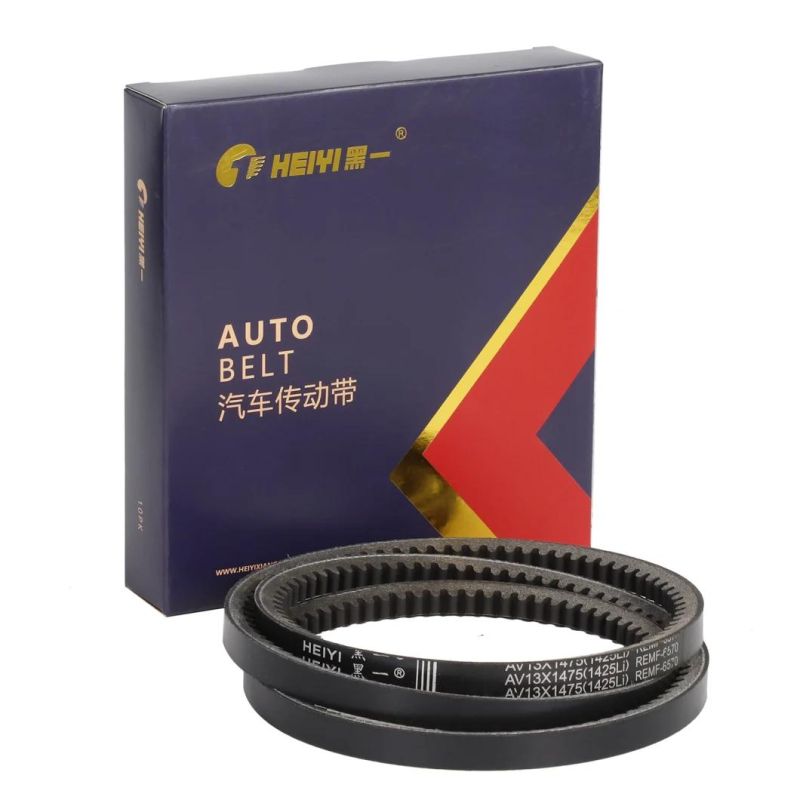

EPDM Transmission System Transmission V-Ribbed Belt Fan Belt for Auto
He Bei Hei Yi Rubber Co., Ltd.- Standard or Nonstandard：Standard
- Application：Textile Machinery, Garment Machinery, Conveyer Equipment, Packaging Machinery, Electric Cars, Motorcycle, Food Machinery, Marine, Mining Equipment, Agricultural Machinery, Car
- Feature：Flame-Retardant, Anti-Static, Oil-Resistant, Cold-Resistant, Corrosion-Resistant, Skid-Resistance, Wear-Resistant, Acid-Resistant, High Temperature-Resistance
- Tensile Strength：Strong
- Material：Rubber
- Type：Multi-Groove Belt
Base Info

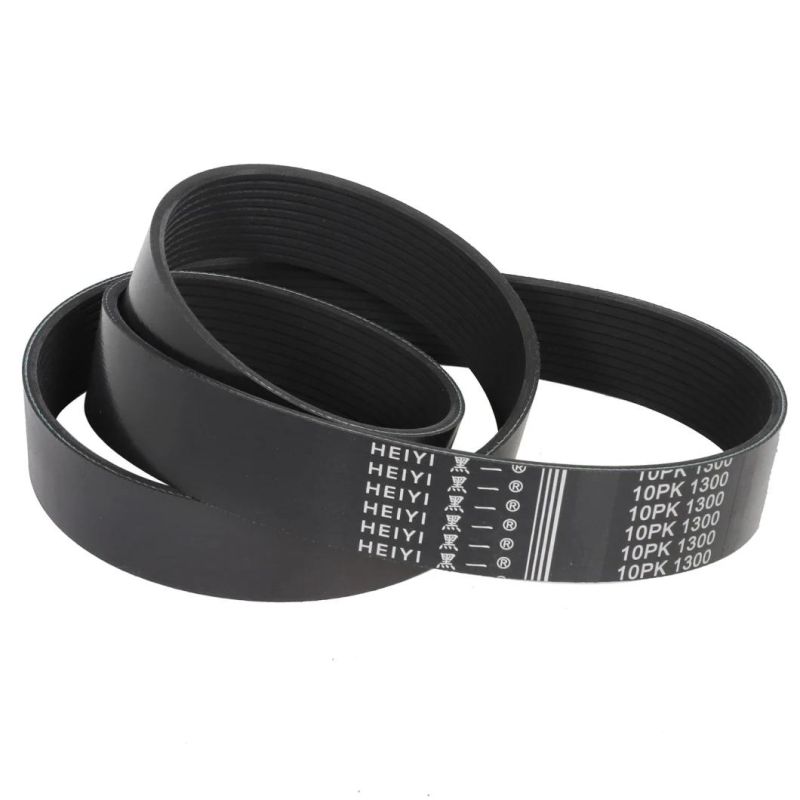

- Model NO.：3pk,4pk,5pk,6pk,7pk,8pk,9pk,10pk,12pk,15pk
- OEM：Available
- Range：500-5000mm
- Warranty：100000-1500000kms
- Certification：ISO9001, Ts16949, SGS
- Body Material：Rubber
- Component：Shock Reducing Rubber
- Model：Pj, Pk, Pl, Pm
- Automotive Belt：AV10X,11X,13X,15X,17X,22X( Ox, Ax, Bx, Cx)

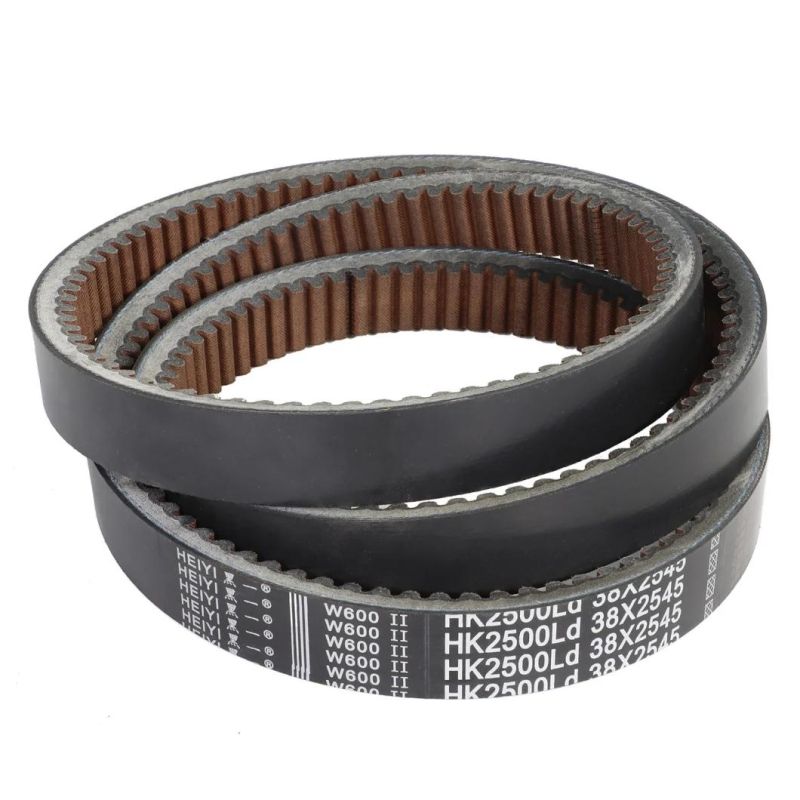

- Variable Speed Belt：Ha, Hb, Hc, Hi, HD, Hdj, Hj, HK, Hl, Hm, Hn, Ho
- Banded Belt：3vx, 5vx, 8vx, 9n, 15n, 9j 2AV10X,13X,17X,22X
- Agriculture Belt：Xpa, Xpb, Xpc, Xpz, Sax, Sbx, Scx
- Tensile Cord：Polyester, Aramid
- Production Machine：Drum Molding Vulcanizing Machine
- Transportation：Express,by Air,by Sea
- Color：Black
- Transport Package：Plastic Bag,Carton
- Specification：EPDM
- Trademark：HEIYI
- Origin：China
- HS Code：40103900
- Production Capacity：100000pieces Per Month
Description
Model
AA,BB,CC Belts are also available, if you have any need of them, please feel free to contact us. We
will confirm all the details and reply you within 24 hours.
Structure of V Belt
| Function | Material | |
| Tension Member | The treated polyester cord is a low stretch high strength tension member able to withstand shock loads on drives with fixed centers | Polyester/Aramid Fiber |
| Rubber Ribs/Teeth | Long wearing, oil resistant, fibre-loaded neoprene rubber is used in the ribs to provide support for the tension member and to transmit the loads to the pulley | EPDM |
| Backing Material | Bias ply type fabric backing resists cracking and provides abrasion resistance | EPDM |
| Insulation Material | oil and heat resistant rubber is used to bond the tension member to the rest of the belt | EPDM |
the order.
Advantages
. Thousands of moulds available. MOQ is based on one mould quantity
. ISO/TS16949 quality certificate
. Warranty: 100,000kms-150,000kms
. We could supply a whole series of auto belts, agricultural belt,accept OEM
Product Description
. Excellent flexibility
. High power transmission efficiency
.Lower noise
. High grade engineered rubber
. Longer service life
.Temperature range from -50ºC to +120ºC
.Oil, heat,ozone and abrasion resistant
FAQ
Q1. Can I have a sample order?
Yes, any sample order is welcomed to know the quality of our products.
Q2. What about the lead time of the sample or the final order?
2-5 days for normal sample.
20-30 days for a formal order.
For large quantity, lead time can be negotiated.
Q3. How much is the minimum quantity for each item in one order?
One mould quantity is ok. Usually around 50pcs for small item, 10-20pcs for big item.
Q4. Is it possible to print our logo or brand on the belt?
Yes, we can print your logo or design on the belt after receipt of your formal authorization letter of the logo or
your brand.
Q5. Do you offer the guarantee for your product?
Yes, usually we offer one year warranty for auto belts; for agricultural belt and industril belts, the warranty
will be different according to your quality demand.
Related products
Application

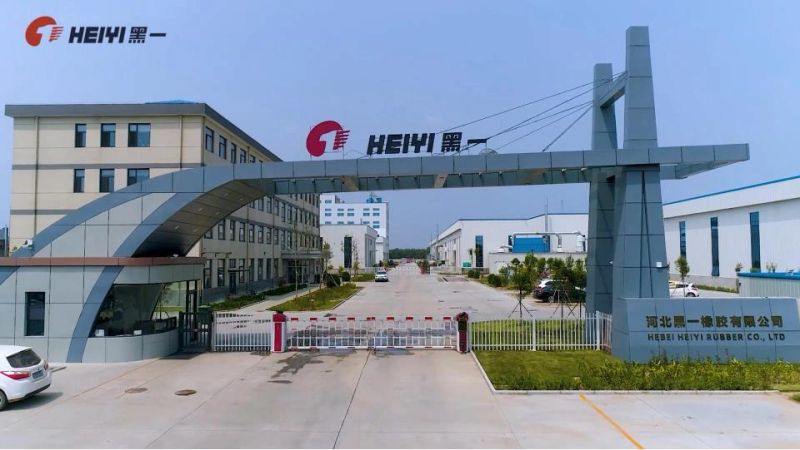

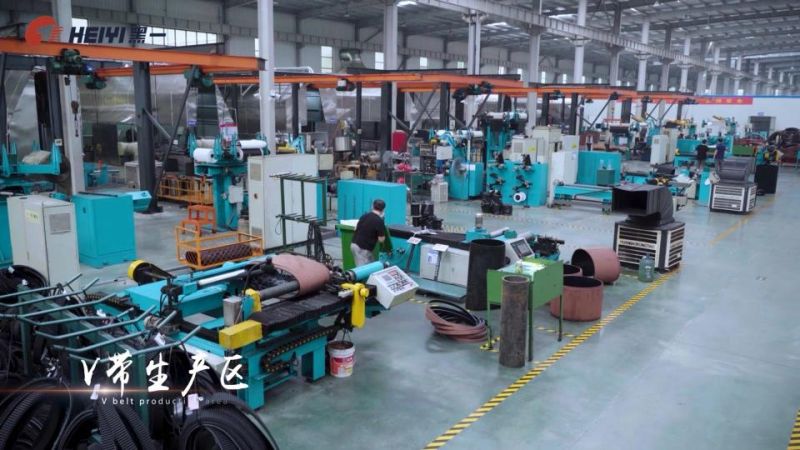

Factory and workshop

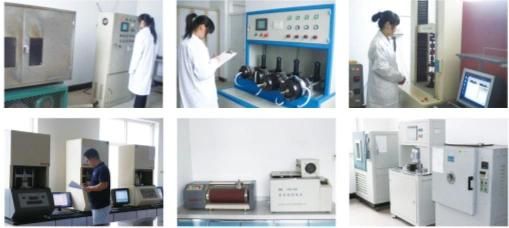

Quality control
Certification
Exhibition
