Cpv Csp Solar Power Slewing Gear Slewing Motor
Coresun Drive Equipment Changzhou Co., Ltd.- Feature：Corrosion-Resistant
- Step：Double-Step
- Openness：Closed
- Installation：Vertical
- Transmission Form：Worm
- Type：Single-Row Ball
Base Info
- Model NO.：VH8-60S110-RC
- Output Torque：6300n.M
- Output Speed：0.025rpm
- Holding Torque：45kn.M
- Gear Ratio：60:1
- IP：65
- Tilting Moment Torque：10kn.M
- Color：Grey
- Electric Motor：Yes
- Transport Package：Standard Exporting Package
- Specification：VH8-60S110-RC
- Trademark：Coresun Drive
- Origin：Changzhou
- HS Code：8483409000
- Production Capacity：3000PCS,Month
Description
Model
VH8
IP
IP65
Brand
Coresun Drive
Type
Vertical
Material
42CrMo,50Mn
Output Torque
6.3KN.m
Tilting Moment Torque
10KN.m
Holding Torque
45KN.m
Static Axial Rating
350KN
Static Radial Rating
120KN
Square Tube
Motor
Gear Ratio
60:1
Efficiency
40%

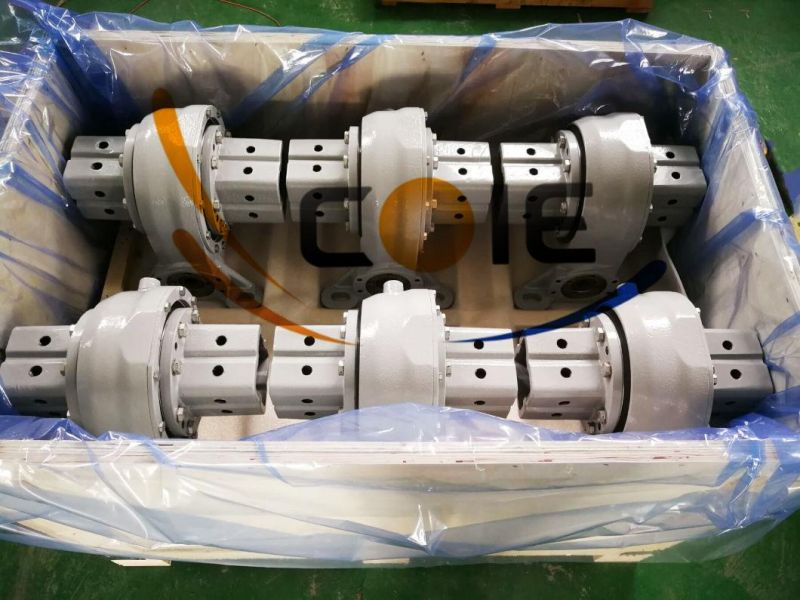

CoreSun - Practical Slewing Drive&Slewing Bearing Promoter. We are committed to researching, developing and applying high quality, precision transmission equipment products,who provides reliable mechanical actuator for horizonal single axis, dual-axis photovoltaic tracking system, CSP,CPV solar tracking design.Our professional and high-quality products will be also applied well as a steady solution on aerial working platform, truck crane, timber grab, drilling rig, spray equipment, hydraulic module vehicle,automated assembly lines, wind yaw systems,etc.

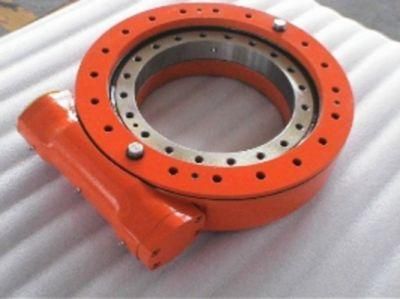

Our slewing drive is powered with hourglass worm technology for maximum gear torque and the smoothest rotation. Typical slew drive applications include solar industry, truck cranes, man lifts, and utility equipment, hydraulic attachments, oil tool equipment, marine cranes, tire handlers, digger derricks and automotive lifts, but the slew drives are used in many other applications requiring load holding and rotational capability. We offer different slew drive models with different moment load capacities. The standard slew drives are fitted with an open housing and single self-locking hourglass worm shaft. Once the power source input is returned to neutral, the worm shaft will lock the load into position without requiring any external braking device.
The slew drive can be with worm gear, spur gear, bevel gear. And also for the inside slewing ring, it can be single-row ball slewing ring, and also can be double-row ball slewing ring. The one with double-row can take much more load. It can be chosen depended on your application.
Worm gear slewing drives are the most cost-effective and optimum solutions for single axis PV trackers. They are designed, tested, and guaranteed for accuracy and performance for a 30-year field life time.
Compared with fixed PV trackers which could produce the highest levels of energy only when the sun is at the optimum angle to the panel, the PV trackers could be directly towards the sun from sunrise to sunset.
1. Introduction: we are a manufacturer of slewing bearing since 2016; our factory occupies an area of 30000 square meters with 4 workshop and 1 office building.
2. Featured products: slewing bearing and slewing drive
3. Capital: Current is 1 million RMB, but we are increasing the capital to 10 million RMB
4. Workers: 40
5. Certificate: ISO9001:2008, 3.1 certificate, CCS certificate, Science and Technology Progress Award
6. Annual Exportation: 8million USD
7. Exported countries: (39)
Asia: India, Pakistan, Iran, Signore, Georgia, Malaysia, Vietnam, Thailand, Philippines, Israel, Korea, UAE, Sri Lanka, Saudi Arabia,
Europe: Turkey, Russia, Spain, Czech Republic, Italy, Poland, Slovakia, Bosnia and Herzegovina, Austria, France, Germany, Switzerland, Finland, Ukraine, UK
America: USA, Canada, Mexico, Brazil, Puerto Rico, Peru, Chile
Africa: South Africa, Egypt
Oceania: Australia
Products Application

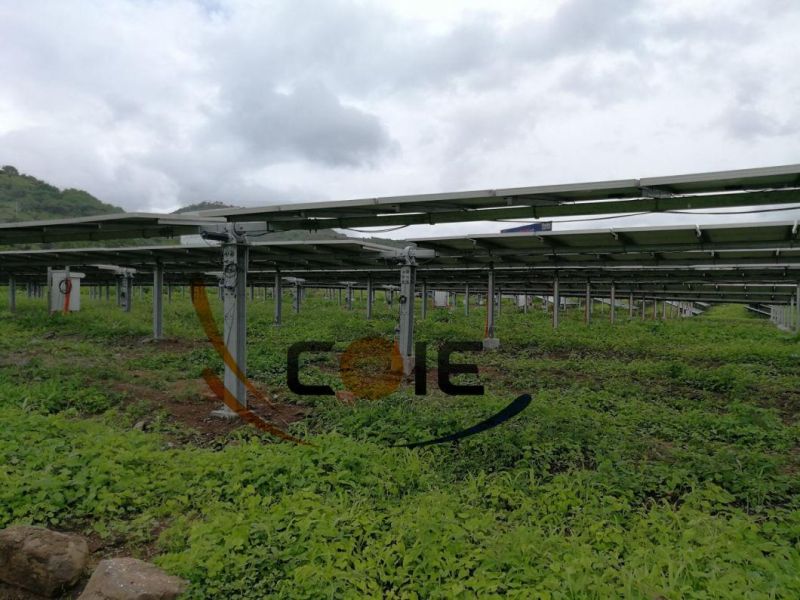

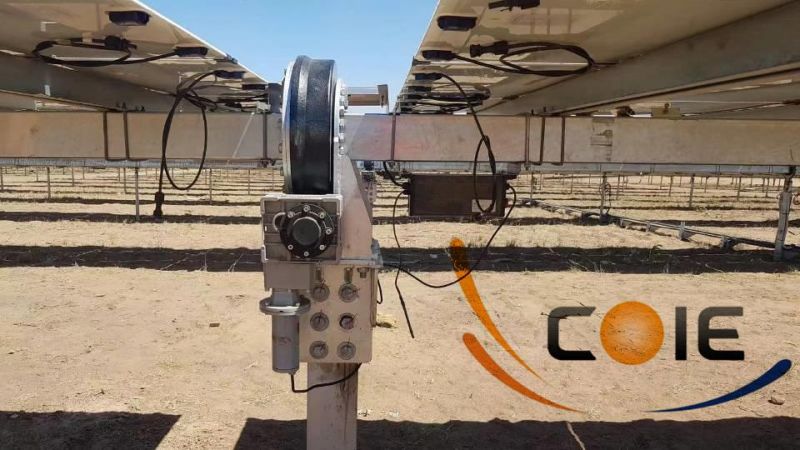

Coresun Drive slewing drive VH8 is a good solution to 60-96pcs single axis solar tracker design.
The production is widely export to USA,Canada,Germany,Spain,France,Poland,Turkey,Korea,Australia,South Africa,India, Brazil,Chile...

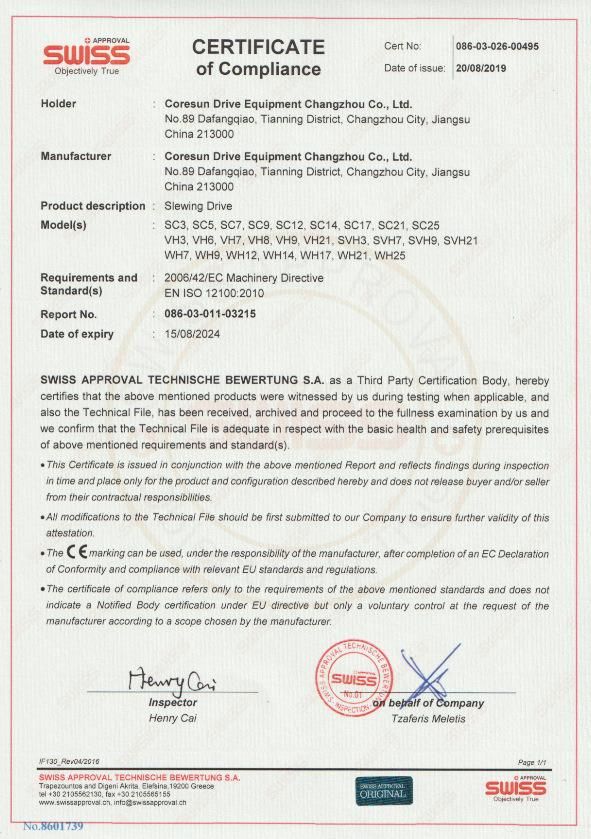

Products Certificate
Our slewing drive gear motor have arroved by CE and ISO2001 certificate.
CONTACT US
It is sincerely looking forward to cooperating with you for and providing you the best quality product & service with all of our heart!
