• Model NO.：Cog v Belt, PK
• OEM：Available
• Range：500-5000mm
• Model No.：Pk
• Warranty：100000kms-150000kms
• Transport Package：Plastic Bag,Carton
• Specification：EPDM,CR,NR
• Trademark：HEIYI
• Origin：China
• HS Code：40103900
• Production Capacity：100000pieces Per Month

Basic Info.

Model NO. Cog v Belt, PK OEM Available Range 500-5000mm Model No. Pk Warranty 100000kms-150000kms Transport Package Plastic Bag/Carton Specification EPDM/CR/NR Trademark HEIYI Origin China HS Code 40103900 Production Capacity 100000pieces Per Month

Product Description

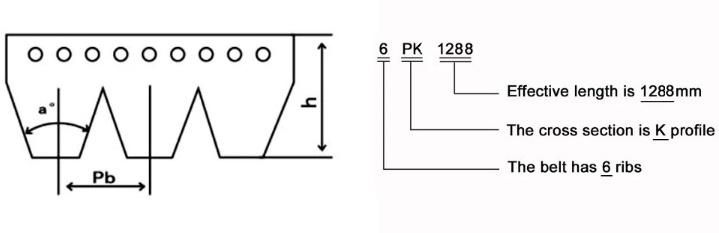

Type and Size of PK Belt/Poly V Belt

Marking

Type	Rib Section	Angle of Rib	Belt Width	Belt  Thickness	Rib Number	Length Range	MOQ
3PK	3.56	40	10	4.8	3	500-5000mm	90pcs
4PK	3.56	40	13.6	4.8	4	500-5000mm	66pcs
5PK	3.56	40	17	4.8	5	500-5000mm	54pcs
6PK	3.56	40	20.7	4.8	6	500-5000mm	44pcs
7PK	3.56	40	24.3	4.8	7	500-5000mm	38pcs
8PK	3.56	40	27.8	4.8	8	500-5000mm	33pcs
9PK	3.56	40	31.4	4.8	9	500-5000mm	28pcs
10PK	3.56	40	35	4.8	10	500-5000mm	26pcs
12PK	3.56	40	42.5	4.8	12	500-5000mm	23pcs
15PK	3.56	40	53	4.8	15	500-5000mm	18pcs

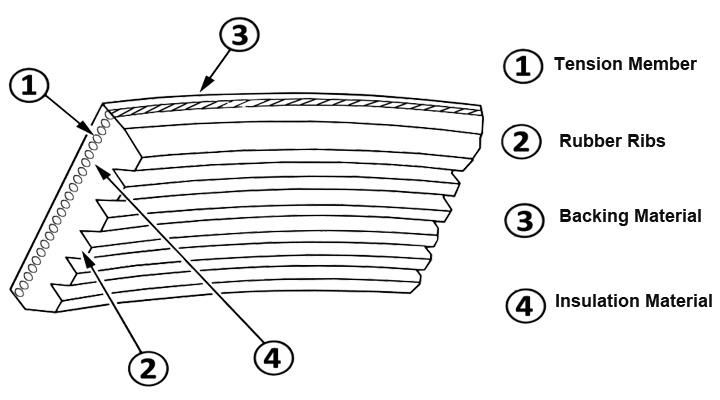

Structure of ribbed Belt

	Function	Material
Tension Member	The treated polyester cord is a low stretch high strength tension member able to withstand shock loads on drives with fixed centers	Polyester/Aramid Fiber
Rubber Ribs	Long wearing, oil resistant, fibre-loaded neoprene rubber is used in the ribs to provide support for the tension member and to transmit the loads to the pulley	NR,CR,EPDM
Backing Material	Bias ply type fabric backing resists cracking and provides abrasion resistance	NR,CR,EPDM
Insulation Material	oil and heat resistant rubber is used to bond the tension member to the rest of the belt	NR,CR,EPDM

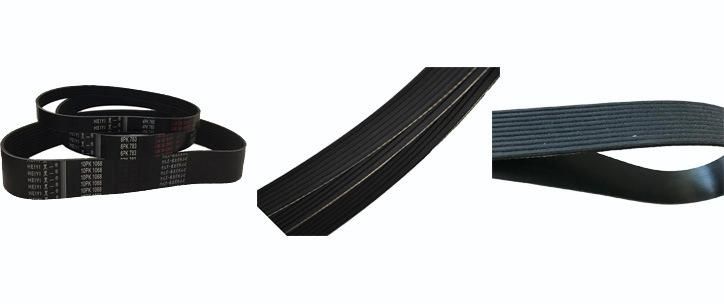

Products Display



Advantages
. Thousands of moulds available. MOQ is based on one mould quantity
. ISO/TS16949 quality certificate
. Warranty: 100000kms-150000kms
. We could supply a whole series of auto PK belts, accept OEM

Product Description
. Excellent flexibility
. High power transmission efficiency
.Reduced noise
. High grade engineered rubber
. Longer service life
.Temperature range from -50ºC to +120ºC
.Oil, heat,ozone and abrasion resistant

FAQ

Q1.  Can I have a sample order?
        Yes, any sample order is welcomed to know the quality of our products.

Q2.  What about the lead time of the sample or the final order?
        2-5 days for normal sample.
        20-30 days for a formal order.

Q3. How much is the minimum quantity for each item in one order?
       One mould quantity is ok. Usually around 50pcs for small item, 10pcs for big item.

Q4. Is it possible to print our logo or brand on the belt?
       Yes, we can print your logo or design on the belt after receipt of your formal authorization letter of the logo or your brand.

Q5. Do you offer the guarantee for your product?
       Yes, usually we offer one year warranty for all of our products.


We are the rubber product factory HEYI RUBBER Co.,Ltd, we have strong technical force,advanced production
technology and sophisticated production equipment.

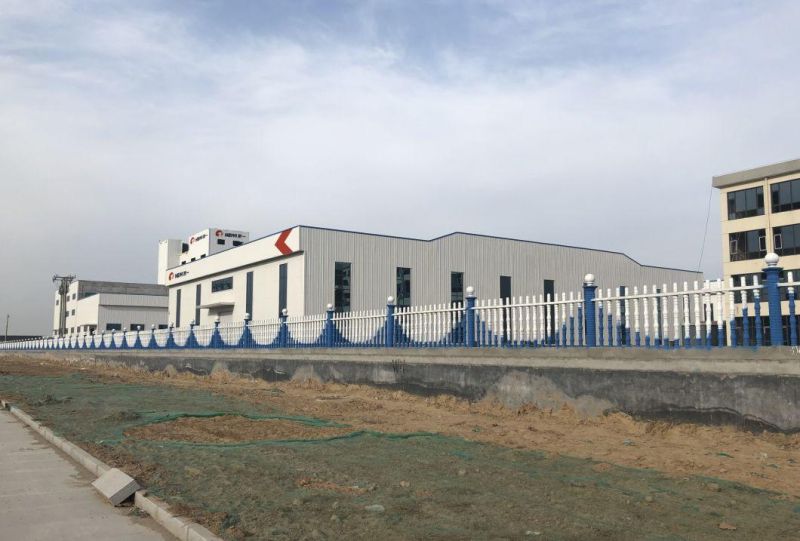

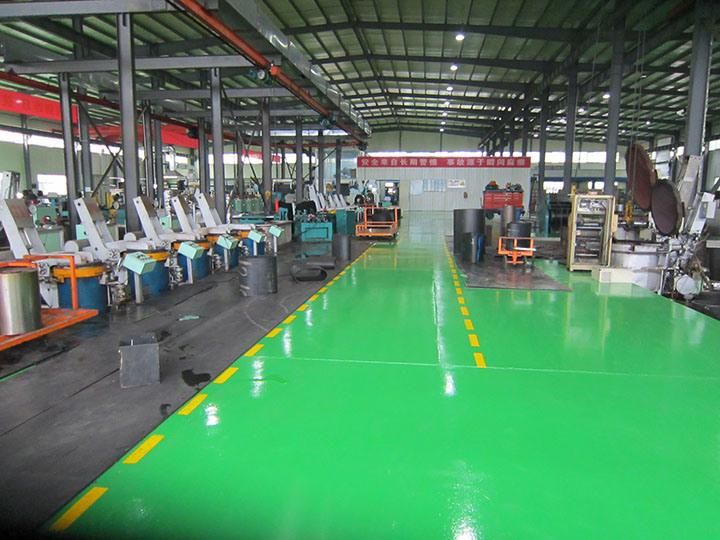

Work Place





Certification
