Js500 Grid Coupling
Jingjiang Huading Machinery Manufacturing Co., Ltd.- Shaft Hole:19-32
- Torque:>80N.M
Base Info
- Model NO.:JS500 Series
- Bore Diameter:19mm
- Speed:10000r,M
- Structure:Flexible
- Material:Cast Iron
- Type:Elastic Coupling
- Delivery Time:Depend on Your Quantity
- Terms of Shipment:by Sea
- Color:Customer Required
- Transport Package:Wooden Case
- Specification:as your requirement
- Trademark:Huading
- Origin:Jingjiang, Jiangsu Province
- HS Code:8483600
- Production Capacity:100000pieces,Year
- Package size per unit product:880.00cm * 850.00cm * 960.00cm
- Gross weight per unit product:58.000kg
Description
No bore mass
KgMax Min Min Standard Max JS502 125 4500 35 14 50 160 120 80 80 52 78 27 50 32 38 1.5 3 5 4 JS504 400 4500 48 14 65 195 160 105 105 62 95 36 60 32 38 1.5 3 5 9 JS506 900 3900 65 19 90 210 185 125 130 82 105 50 65 45 50 1.5 3 5 15.5 JS507 1800 3500 75 28 105 275 218 150 156 112 135 52 86 60 65 1.5 3 5 26 JS508 3150 3500 85 28 125 295 245 180 175 112 145 58 92 70 75 1.5 3 5 37 JS509 5600 2450 100 42 140 370 286 210 208 142 180 70 118 90 95 1.5 3 5 63 JS510 8000 2300 110 42 160 390 325 245 230 142 190 74 125 100 105 1.5 4 6.5 83 JS511 12500 2000 125 60 180 450 330 180 258 142 220 85 150 115 120 1.5 4 6.5 97 JS512 18000 1800 150 70 220 465 365 220 295 172 225 95 150 130 135 1.5 6 10 139 JS513 25000 1600 180 70 255 480 420 255 335 172 235 115 156 140 145 1.5 6 10 208 JS514 35500 1500 200 110 270 550 480 270 390 212 270 105 178 160 165 3 6 13 275 JS515 50000 1300 220 120 305 590 550 305 440 212 290 110 190 200 205 3 6 13 378 JS516 63000 1200 250 130 360 620 605 355 495 252 305 125 200 200 205 3 6 13 515 JS517 90000 1100 275 395 675 665 395 550 252 330 140 227 225 230 3 6 13 712 JS518 125000 1000 305 440 710 710 430 600 302 350 160 242 250 255 3 6 13 890 JS519 180000 900 330 500 745 780 495 660 302 365 175 252 275 280 3 6 13 1196

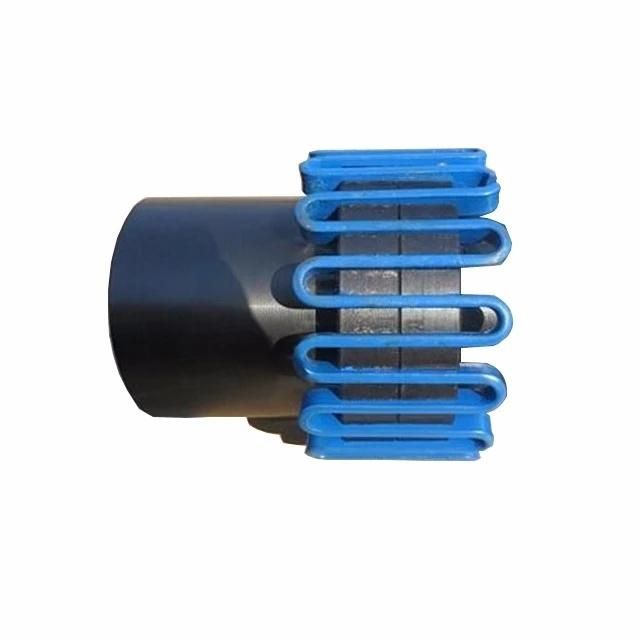

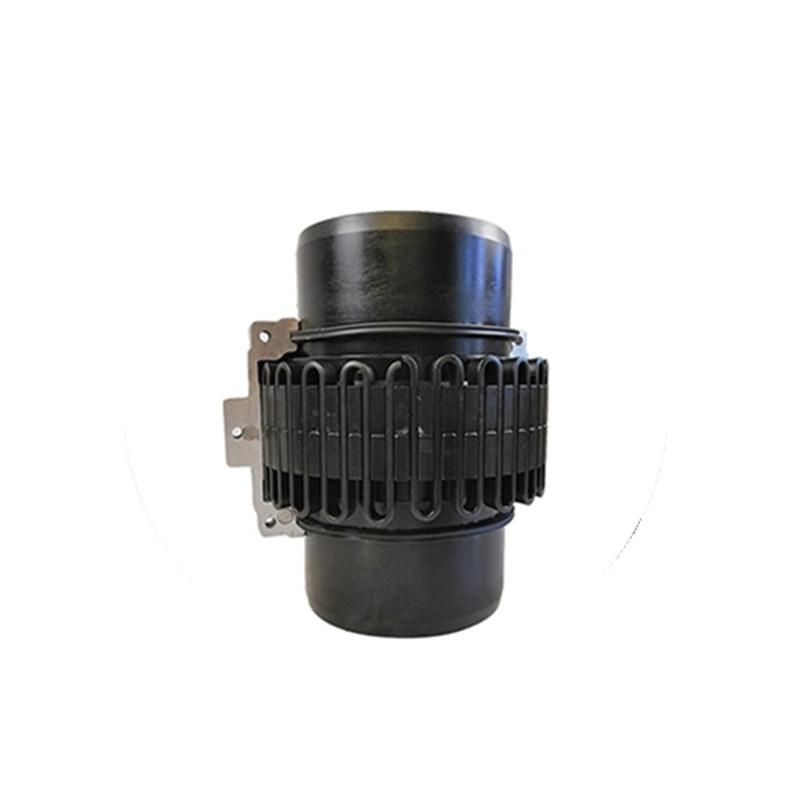

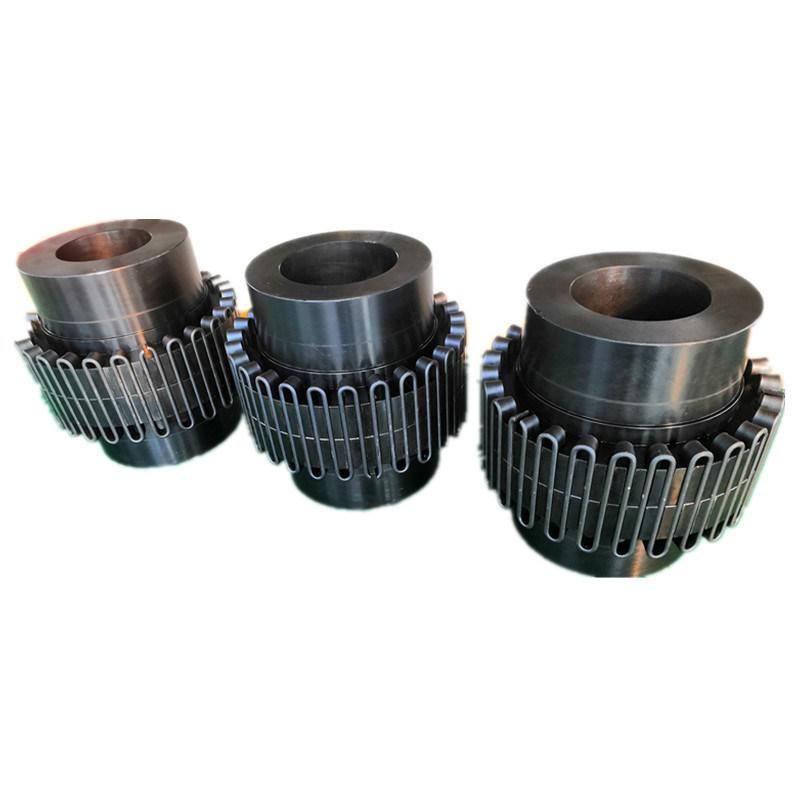

♦Product Display
♦Other Products List
♦Our Company
Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
Welcome to customize products from our factory and please provide your design drawings or contact us if you need other requirements.
♦Our Services
1.Design Services
Our design team has experience in cardan shaft relating to product design and development. If you have any needs for your new product or wish to make further improvements, we are here to offer our support.
2.Product Services
raw materials → Cutting → Forging →Rough machining →Shot blasting →Heat treatment →Testing →Fashioning →Cleaning→ Assembly→Packing→Shipping
3.Samples Procedure
We could develop the sample according to your requirement and amend the sample constantly to meet your need.
4.Research & Development
We usually research the new needs of the market and develop the new model when there is new cars in the market.
5.Quality Control
Every step should be special test by Professional Staff according to the standard of ISO9001 and TS16949.
♦FAQ
Q 1: Are you trading company or manufacturer?
A: We are a professional manufacturer specializing in manufacturing
various series of couplings.
Q 2:Can you do OEM?
Yes, we can. We can do OEM & ODM for all the customers with customized artworks of PDF or AI format.
Q 3:How long is your delivery time?
Generally it is 20-30 days if the goods are not in stock. It is according to quantity.
Q 4: Do you provide samples ? Is it free or extra ?
Yes, we could offer the sample but not for free.Actually we have a very good price principle, when you make the bulk order then cost of sample will be deducted.
Q 5: How long is your warranty?
A: Our Warranty is 12 month under normal circumstance.
Q 6: What is the MOQ?
A:Usually our MOQ is 1pcs.
Q 7: Do you have inspection procedures for coupling ?
A:100% self-inspection before packing.
Q 8: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Q 9: What's your payment?
A:1) T/T. 2) L/C
♦Contact Us
Web: huadingcoupling.en.made-in-china.com
Add: No.1 Fuyang Road,Chengnan park,Jingjiang City,Jiangsu Province,China
Kg
♦Product Display
♦Other Products List
Transmission Machinery Parts Name | Model |
Universal Coupling | WS,WSD,WSP |
Cardan Shaft | SWC,SWP,SWZ |
Tooth Coupling | CL,CLZ,GCLD,GIICL, GICL,NGCL,GGCL,GCLK |
Disc Coupling | JMI,JMIJ,JMII,JMIIJ |
High Flexible Coupling | LM |
Chain Coupling | GL |
Jaw Coupling | LT |
Grid Coupling | JS |
