Matech Custom Design Aluminum Gravity Casting Foundry

Shanghai Matech Machinery Manufacture Corporation Ltd.
  • Application:Motor, Motorcycle, Machinery, Marine, Agricultural Machinery, Car
  • Function:Change Drive Torque
  • Layout:Three-Ring
  • Hardness:Soft Tooth Surface
  • Installation:Torque Arm Type
  • Step:Stepless

Base Info

  • Model NO.:aluminum casting foundry
  • Type:Worm Gear Box
  • Casting Material:Aluminium Alloy Zl101, A356, ADC12, Alsi7mg
  • Casting Blank Size:as Customer Request
  • Manufacturing Process:Die Casting, Option Gravity Casting, Low Pressure
  • Casting Tolerance:CT5-7 for Aluminum Casting Foundry
  • Machining Process:CNC Machining, Lathing, Milling, Turning, Boring,
  • Surface Treatment:Anodize, Painting
  • Rough Surface Roughness:Ra3.2-25
  • Package:Multilayer Wooden Box,Pallet, with Big Plastic Bag
  • Lead Time:45 Days for Aluminum Casting Foundry
  • Service for Aluminum Casting:Custom Mechanical Parts Based on Drawing or Sampl
  • Transport Package:Multilayer Wooden Box,Pallet
  • Specification:Customized Size
  • Trademark:Matech Industry
  • Origin:China Zhejiang
  • HS Code:8701901990
  • Production Capacity:150 Ton,Month

Description

• Instrumentation equipment
YOUR DESIGN WE HELP TO ACHIEVE,AS YOUR SINCERE PARTNER!

              SINCERITY                QUALITY                COMPETENCE


General Products Application /Service Area:
Metal parts for vehicle, agriculture machine, construction machine, transportation equipment, Valve and Pump system. E.g. Engine bracket, truck chassis bracket, gear box , gear housing , gear cover, shaft, spline shaft , pulley, flange, connection pipe, pipe, hydraulic valve, valve housing ,Fitting , flange, wheel, flywheel, oil pump housing, starter housing, coolant pump housing, transmission shaft , transmission gear, sprocket, chains etc
.


Product NameMATECH custom design aluminum gravity casting foundry

Main blank Process for Aluminum Casting

Die Casting, Permanent Molding /Gravity Casting, Low Pressure Casting,
High Pressure Casting/Sand Casting, Extrusion Casting etc.

Blanks Tolerance -Casting  Tolerance


CT4-6 for Permanent Molding, Die Casting.

Applicable Material for casting


A356.0/ZL101,GAlSi7Mg  (3.2371.61)/AlSi7Mg/, A-S7G, Al Si Alloy,  Al Cu Alloy ZL201 Al Mg Alloy ZL301,ZL302,
Al Zn Alloy ZL401Zn Alloy Zamak 3, Zamak 5, Zamak 7, Zamak 2
Or according to customer requirements


Casting Blank Size  /Dimensions

2 mm-1500mm / 0.08inch-60inch , or according to customer requirements

Casting Blank Weight

Range from 0.01kg-50kg

Applicable Machining Process


CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/
Broaching/Reaming /Grinding/Honing and  etc.


Machining Tolerance

From 0.005mm-0.01mm-0.1mm

Machined Surface Quality

Ra 0.8-Ra3.2 according to customer requirement

Applicable Heat Treatment

T5~T6

Applicable Finish Surface  Treatment

Shot/sand blast, polishing,  Primer Painting , Powder coating, ED- Coating,
Finish Painting, Anodize (White or Black Color)

MOQ

1000pcs per batch


Lead Time

45days from the receipt date of aluminum casting foundry

Technical Support:
Shanghai Matech is professional at independent development and design. Our engineers are skilled at AUTO CAD, PRO ENGINEER, SOLID WORKS and other 2D & 3D softwares. We are able to design, develop,produce and deliver your PO according to your drawings, samples or just an idea. Dural control of standard products and OEM products.

Quality Control:
1) Checking the raw material after they reach our factory------- Incoming quality control ( IQC)
2) Checking the details before the production line operated
3) Have full inspection and routing inspection during mass production---In process quality control(IPQC)
4) Checking the goods after they are finished---- Final quality control(FQC)
5) Checking the goods after they are finished-----Outgoing quality control(OQC)

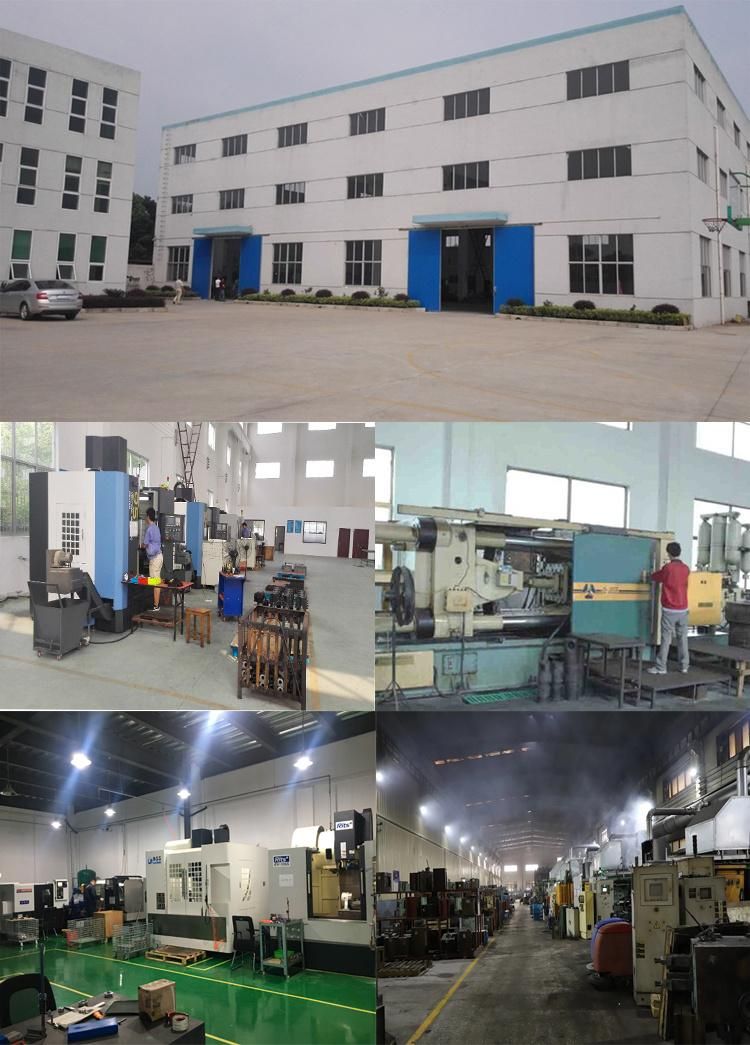

Our Factory

                               Shanghai Matech Machinery Manufacturer Co., Ltd.
                                                                 --Branch of Matech Industry ltd.


We specialize in Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine, transportation equipment, Valve and Pump system etc.

 With keeping manufacturing process design, quality planning, key manufacturing processes and final quality control in house we are mastering key competence to supply quality mechanical parts and assembly to our customers for both Chinese and Export Market .

To satisfy different mechanical and functional requirements from our customers we are making a big range of metal products for our clients on base of different blanks solutions and technologies. These blanks solutions and technologies include processes of Iron Casting, Steel Casting, Stainless Steel Casting, Aluminum Casting and Forging.

During the early involvement of the customer's design process we are giving professional input to our customers in terms of process feasibility, cost reduction and function approach. You are welcome to contact us for technical enquiry and business cooperation.

Matech Custom Design Aluminum Gravity Casting Foundry

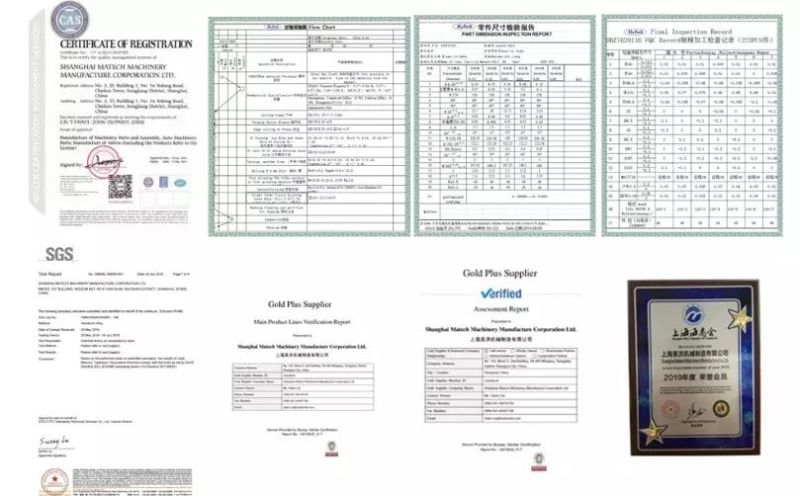

Our Certificate
Matech Custom Design Aluminum Gravity Casting Foundry
Our Customer
Matech Custom Design Aluminum Gravity Casting Foundry
Our Team
Matech Custom Design Aluminum Gravity Casting Foundry
Our Package

 Inner Packing →Strong & waterproof plastic big is packed inside, to keep the product in safe condition.Or as customer requests.

Outer Packing →Multilayer wooden box with strong bandages, used for standard export package. Or customized as per customer's requirements.

FAQ

1. What do you do?
We are a professional manufacturer with over 15 years' export experience for designing and producing vehicle machinery parts.
 2. How can I get some samples? If you need, we are glad to offer you samples for free, but the new clients are expected to pay the courier cost, and the charge will be deducted from the payment for formal order.

3. Can you make aluminum casting foundry according to our drawing?Yes, we can make aluminum casting foundry according to your drawing, 2D drawing, or 3D cad model. If the 3D cad model can be supplied, the development of the tooling can be more efficient. But without 3D, based on 2D drawing we can still make the samples properly approved.

4. Can you make aluminum casting foundry based on our samples?Yes, we can make measurement based on your samples to make drawings for tooling making.

5. What's your quality control device in house?We have spectrometer in house to monitor the chemical property, tensile test machine to control the mechanical property and UT Sonic as NDT checking method to control the casting detect under the surface of die casting part.
