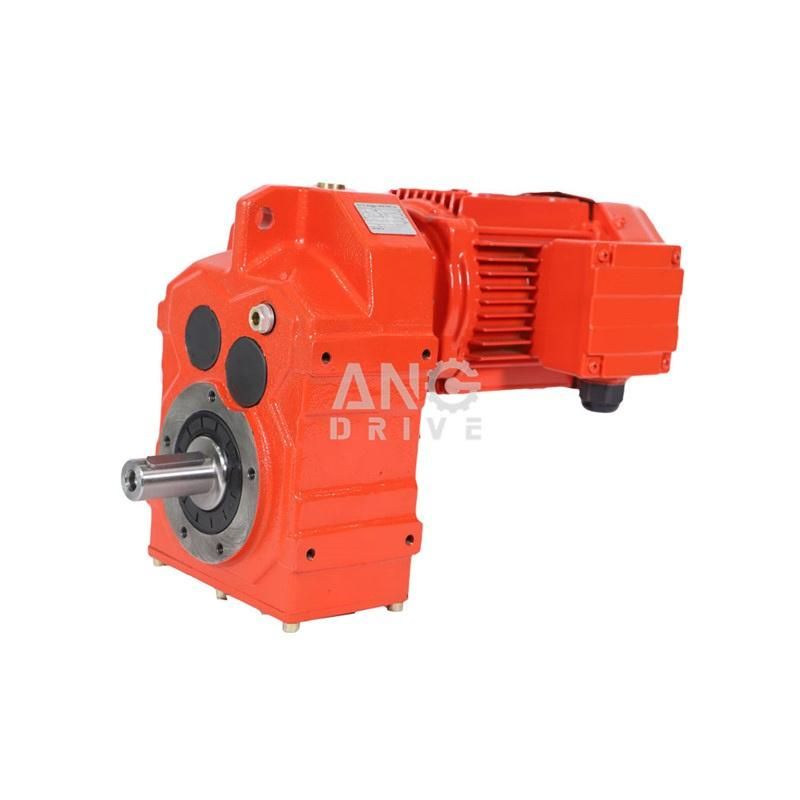

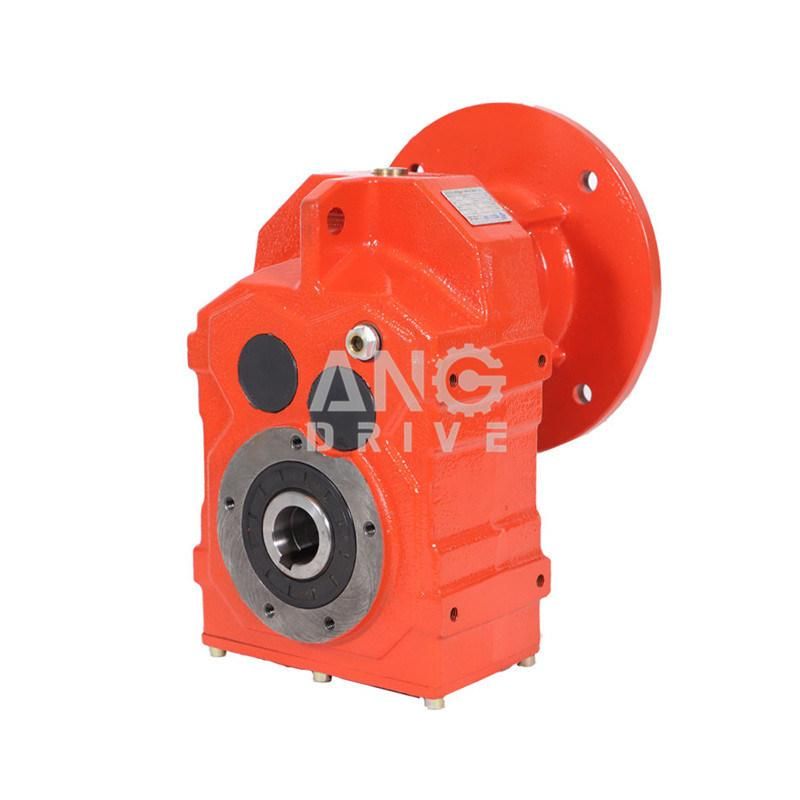

F Series Parallel Shaft Hollow Output Reducer Helical Gearbox

Hangzhou ANG Drive Co., Ltd.
  • Application:Motor, Machinery, Marine
  • Function:Distribution Power, Change Drive Torque, Change Drive Direction, Speed Reduction
  • Layout:Coaxial, Flat, Parallel, Right Angle...
  • Hardness:Hardened Tooth Surface
  • Installation:Horizontal Type
  • Step:Three-Step

Base Info

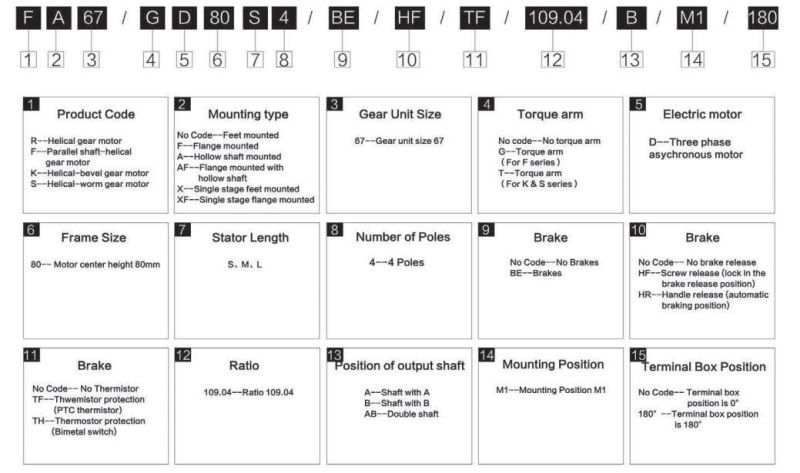

  • Model NO.:F37~F157
  • Type:Coaxial, Flat, Parallel, Right Angle...
  • Power:0.06 ~ 250kw
  • Ratio:3.8-273
  • Output Speed:0.1~356
  • Torque:3.2-18000nm
  • Transport Package:Carton+Pallet
  • Specification:F37-177
  • Trademark:ANG Drive
  • Origin:China
  • HS Code:8483409000
  • Production Capacity:3000PCS Per Month

Description

F Series Parallel Shaft Hollow Output Reducer Helical GearboxF Series Parallel Shaft Hollow Output Reducer Helical GearboxF Series Parallel Shaft Hollow Output Reducer Helical GearboxF Series Parallel Shaft Hollow Output Reducer Helical GearboxF Series Parallel Shaft Hollow Output Reducer Helical GearboxF Series Parallel Shaft Hollow Output Reducer Helical Gearbox
Specification:                                                                  ANG Helical Gear MotorModelR17 ~ 187, F37-177, K37-187, S37-97Input power0.06kw ~ 250kwInput speed750rpm ~ 3000rpmReduction ratio1/1.3 ~ 1/27000Input motorAC (1 phase or 3 phase) / DC / BLDC motorInstall typeFoot / Solid shaft / Hollow shaft / Output flange…Efficiency94% ~ 98 % for R F K seriesMaterial of housingdie-cast aluminum / Cast iron / Stainless steel Precision of gearAccurate grinding, class 6Heat treatmentCarburizing and quenchingAccessoriesBrake / Flange / Motor adapter / Torque arm …F Series Parallel Shaft Hollow Output Reducer Helical GearboxF Series Parallel Shaft Hollow Output Reducer Helical Gearbox

F Series Parallel Shaft Hollow Output Reducer Helical Gearbox
F Series Parallel Shaft Hollow Output Reducer Helical Gearbox


FAQ

Q: Can you make the gear motor with customization?
A: Yes, we can customize per your request, like power, voltage, speed, shaft size, flange, terminal box, IP grade, etc.


Q: Do you provide samples?
A: Yes. The sample is available for testing.


Q: What is your MOQ?
A: It is 1pcs for the beginning of our business.


Q: What's your lead time?
A: Standard products need 5-30days, a bit longer for customized products.


Q: Do you provide technical support?
A: Yes. Our company have design and development team, we can provide technical support if you
need.


Q: How to ship to us?
A: It is available by air, or by sea, or by train.


Q: How to pay the money?
A: T/T and L/C are preferred, with a different currency, including USD, EUR, RMB, etc.


Q: How can I know the product is suitable for me?
A: >1ST confirm drawing and specification >2nd test sample >3rd start mass production.


Q: Can I come to your company to visit?
A: Yes, you are welcome to visit us at any time.


Q: How shall we contact you?
A: You can send an inquiry directly, and we will respond within 24 hours.
