• Model NO.：ATA
• Type：Parallel Gear Box
• Input Power(N1= 900r/Min)：1.6~155kw
• Output Torque(N1=900r/Min)：150~16000n.M
• Material：Cast Iron
• Manipulate Way：Forced Manipulation
• Manufacturing Method：Cast Gear
• Toothed Portion Shape：Bevel Wheel
• Changes Way：Stepped
• Ratio：5~31
• Mounting Type：Tie Rod Hanging Shaft Mounted
• Color：Blue,Gray,Customer Requirement
• Warranty：One Year
• Transport Package：Plywood Case
• Specification：ISO
• Trademark：AOKMAN DRIVE
• Origin：China
• HS Code：8483409000
• Production Capacity：5000PCS,Year

5

7

10

12.5

15

20

25

31ATA3535mm420NmATA4040mm/45mm950NmATA4545mm/50mm/55mm1400NmATA5050mm/55mm/60mm2300NmATA6060mm/70mm3600NmATA7070mm/85mm5100NmATA8080mm/100mm7000NmATA100100mm/125mm11000NmATA125125mm/135mm17000Nm

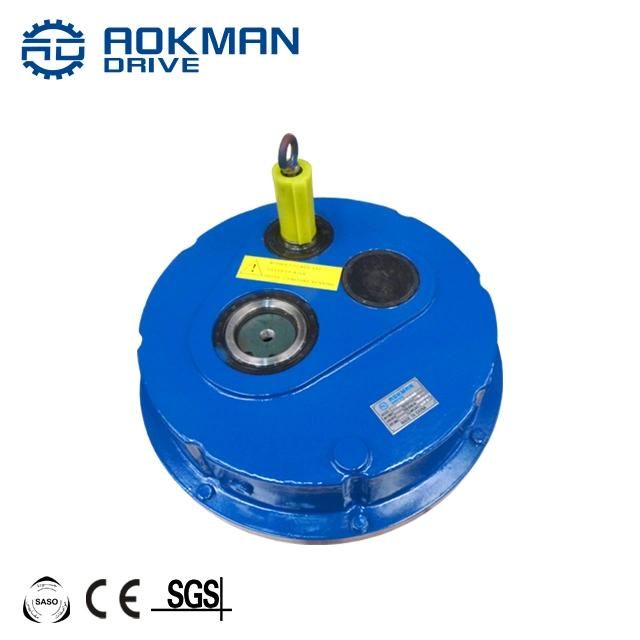

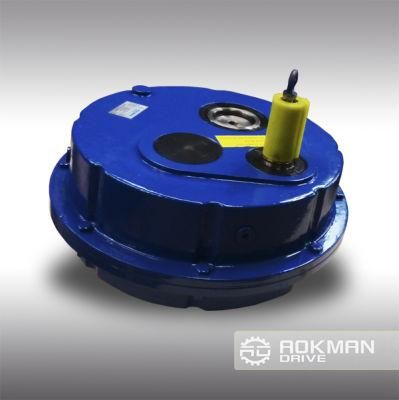

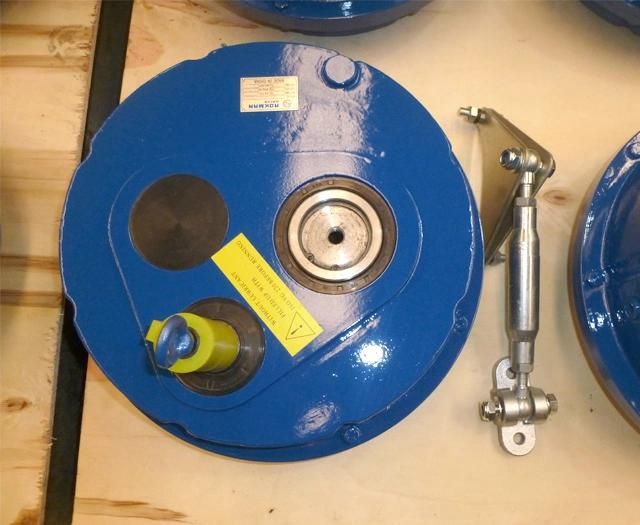

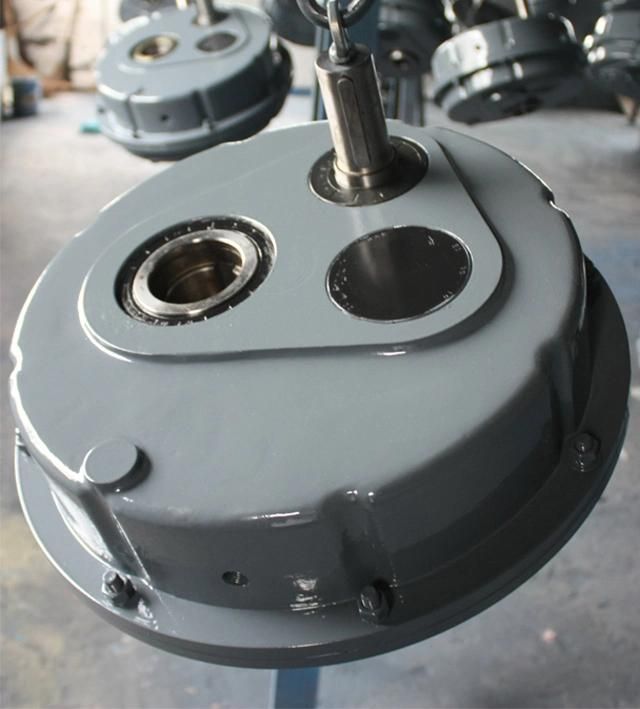

Product pictures:

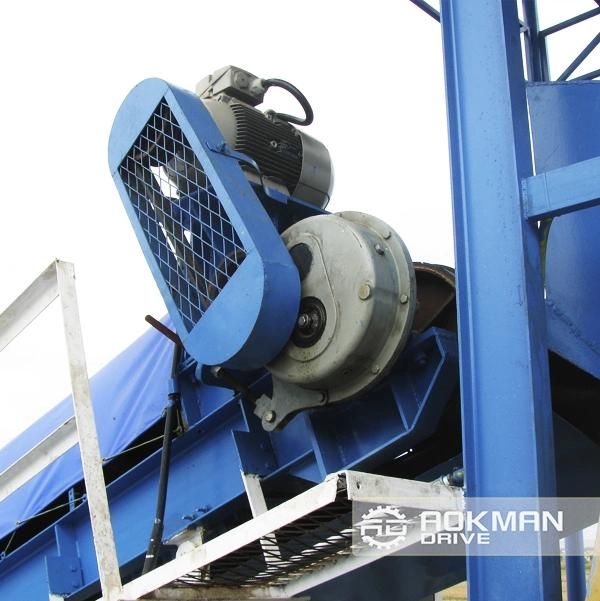

Product application:

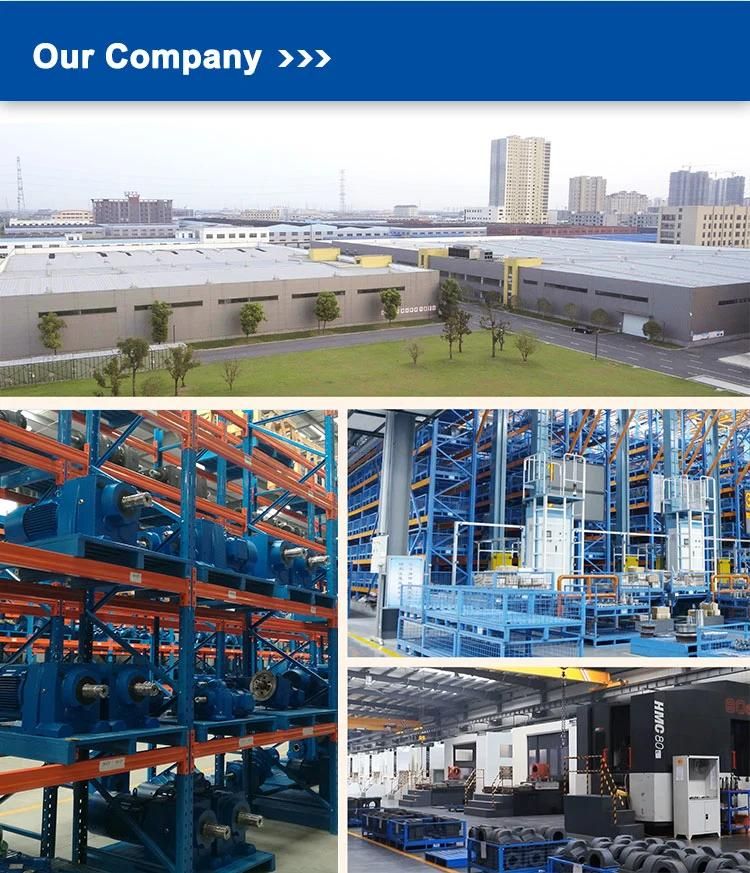

Our company :
AOKMAN® was founded in 1982, which has more than 36 years in R & D and manufacturing of gearboxes, gears, shaft, motor and spare parts.
We can offer the proper solution for uncountable applications. Our products are widely used in the ranges of metallurgical, steel, mining, pulp and paper, sugar and alcohol market and various other types of machines with a strong presence in the international market.
AOKMAN® has become a reliable supplier, able to supply high quality gearboxes.With 36 years experience, we assure you the utmost reliability and security for both product and services.


Customer visiting:


Our Services:Pre-sale services1. Select equipment model.2.Design and manufacture products according to clients' special requirement.3.Train technical personal for clientsServices during selling1.Pre-check and accept products ahead of delivery.2. Help clients to draft solving plans.After-sale services1.Assist clients to prepare for the first construction scheme.2. Train the first-line operators.3.Take initiative to eliminate the trouble rapidly.4. Provide technical exchanging.
FAQ:
1.Q:What kinds of gearbox can you produce for us?
A:Main products of our company: UDL series speed variator,RV series worm gear reducer, ATA series shaft mounted gearbox, X,B series gear reducer,
P series planetary gearbox and R, S, K, and F series helical-tooth reducer, more
than one hundred models and thousands of specifications
2.Q:Can you make as per custom drawing?
A: Yes, we offer customized service for customers.
3.Q:What is your terms of payment ?
A: 30% Advance payment by T/T after signing the contract.70% before delivery
4.Q:What is your MOQ?
A: 1 Set
