• Model NO.：RC
• Type：Planetary Gear Box
• Ratio：3.66~54
• Max. Torque：120n.M~500n.M
• Configurations：Without Motors (Default)
• Housing：Aluminum Alloys
• Input Power：0.12kw~4kw
• Shafts Position：Inline
• Gears：Hardened Helical Gears
• Output Speed：Based on Ratio
• Mount Position：Foot or Flange Mounted
• Input Form：Motor, Motor Flange, Input Solid Shaft
• Warranty：1 Year
• Heat Treatmen：Quenching
• Brand Name：Aokman Drive
• Color：Customer Request
• Place of Origin：Henan, China
• Transport Package：Wooden Case; Carton; Pallet
• Specification：ISO; CE; SGS
• Trademark：AOKMAN DRIVE
• Origin：China
• HS Code：8483409000
• Production Capacity：50000

Basic Info.

Model NO. RC Type Planetary Gear Box Ratio 3.66~54 Max. Torque 120n.M~500n.M Configurations Without Motors (Default) Housing Aluminum Alloys Input Power 0.12kw~4kw Shafts Position Inline Gears Hardened Helical Gears Output Speed Based on Ratio Mount Position Foot or Flange Mounted Input Form Motor, Motor Flange, Input Solid Shaft Warranty 1 Year Heat Treatmen Quenching Brand Name Aokman Drive Color Customer Request Place of Origin Henan, China Transport Package Wooden Case; Carton; Pallet Specification ISO; CE; SGS Trademark AOKMAN DRIVE Origin China HS Code 8483409000 Production Capacity 50000

Product Description

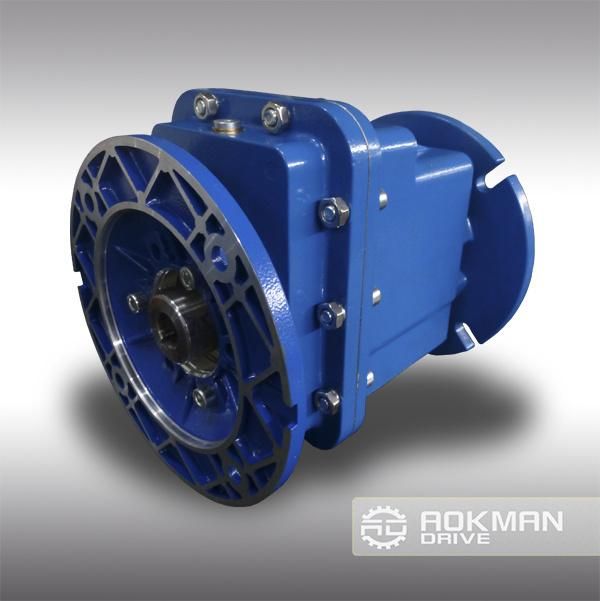

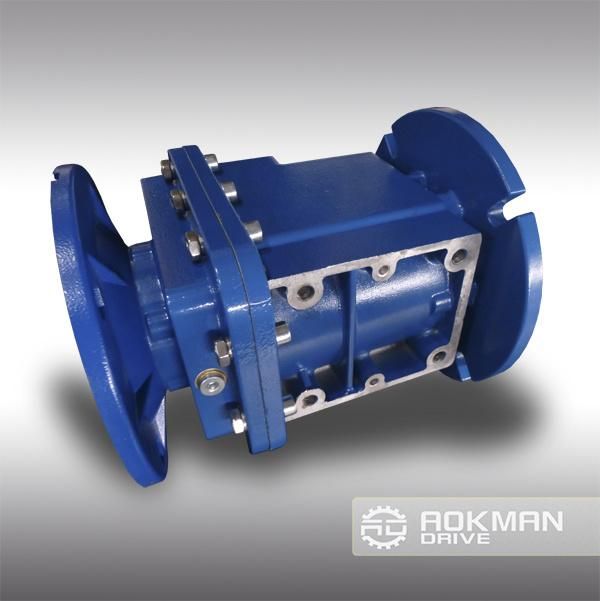

Power Transmission RC Helical motor gearbox shaft mounted reducer


 Components:
1. Housing:
Aluminum Alloys
2. Gears:
Hardened Helical Gears
3. Input Configurations:
Hollow Shaft with IEC Normalized Motor Flange
Solid Shaft Input
4. Applicable Motors:
IEC-normalized Motors and Brake Motors
Explosion-proof Motors
Inverter Motors
Servo Motors
5. Output Configurations:
Solid Shaft with B5 Output Flange
Solid Shaft with B14 Output Flange

Models:
RC(Foot-mounted): RC01,RC02,RC03,RC04
RCF(B5 Flange-mounted): RCF01,RCF02,RCF03,RCF04
RCZ(B14 Flange-mounted): RCZ01,RCZ02,RCZ03,RCZ04

Features:
1. Modular design, dismountable frame foot, optional different frame sizes and flanges
2. Aluminum housing, compact structures, light weight
3. Carburizing and grinding hardened gears, sturdy and durable
4. Multiple mounting positions
5. Low noise

Parameters:

Frame Sizes	Power	Ratio	Max. Torque
01,02,03,04	0.12kW~4kW	3.66~54	120N.m~500N.m

Applications:
Textile, Food, Ceramics, Packaging, Logistics, Plastics Industry
Installation:
Foot-mounted
B5 Flange-mounted
B14 Flange-mounted

Lubrication:
Oil-bath and Splash Lubrication
Cooling:
Natural Cooling

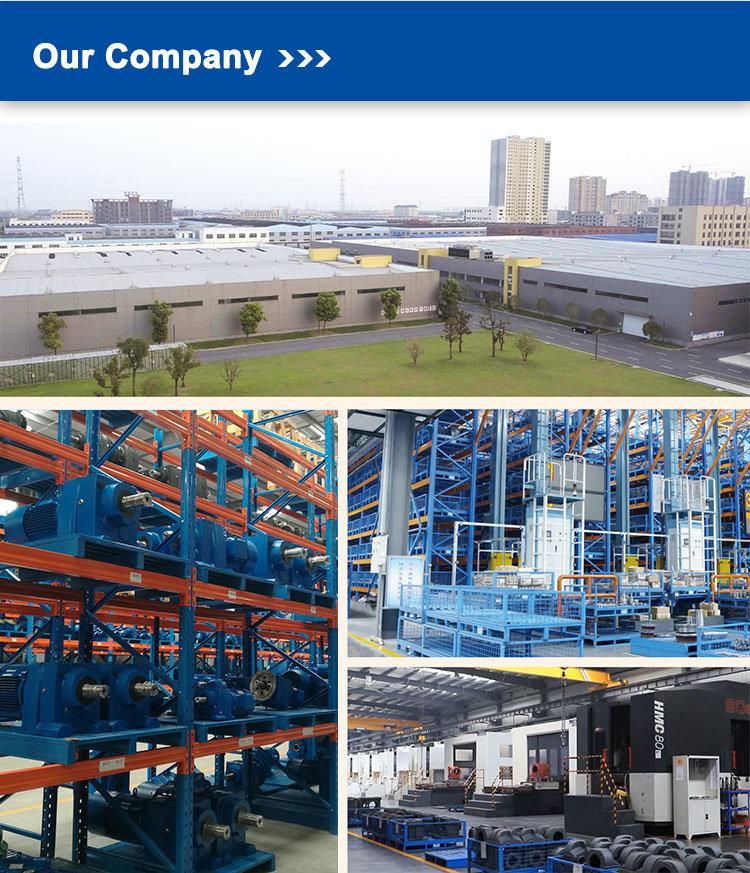

Our company :
AOKMAN® was founded in 1982, which has more than 36 years in R & D and manufacturing of gearboxes, gears, shaft, motor and spare parts.
We can offer the proper solution for uncountable applications. Our products are widely used in the ranges of metallurgical, steel, mining, pulp and paper, sugar and alcohol market and various other types of machines with a strong presence in the international market.
AOKMAN® has become a reliable supplier, able to supply high quality gearboxes.With 36 years experience, we assure you the utmost reliability and security for both product and services.


Customer visiting:


FAQ:
1.Q:What kinds of gearbox can you produce for us?
A:Main products of our company: UDL series speed variator,RV series worm gear reducer, ATA series shaft mounted gearbox, X,B series gear reducer,
P series planetary gearbox and R, S, K, and F series helical-tooth reducer, more
than one hundred models and thousands of specifications
2.Q:Can you make as per custom drawing?
A: Yes, we offer customized service for customers.
3.Q:What is your terms of payment ?
A: 30% Advance payment by T/T after signing the contract.70% before delivery
4.Q:What is your MOQ?
A: 1 Set

If you have any demand for our products please feel free to contact me.
