Large Girth Gear with 45 Module

CITICHL HEAVY INDUSTRIES CO., LTD.
  • Application：Machinery, Industry
  • Hardness：According to Customer′s Requirement
  • Gear Position：External Gear
  • Manufacturing Method：Cast Gear
  • Toothed Portion Shape：Spur Gear
  • Material：Cast Alloy Steel, Cast Carbon Steel, Forged Alloy

Base Info

  • Model NO.：Circular Gear
  • Type：Circular Gear
  • Name：Girth Gear
  • ISO 9001:: 2008 Certificated：BV & SGS Certificated
  • Manipulate Way：Forced Manipulation
  • Changes Way：Stepped
  • Module：Less Than or Equal to 45
  • Diameter：15 M
  • Transport Package：in Container
  • Specification：According to Customer′ s Requirement
  • Trademark：citictic
  • Origin：Luoyang, China
  • HS Code：8479909090
  • Production Capacity：500pieces,Year

Description

UT ReportAfter WeldedAfter Semi Finish Machining8PTDefect AreaNo Defect IndicatedAfter Digging
After WeldedPT Record9Mark InspectionWhole BodyManufacturing StandardFinal InspectionPictures10Appearance InspectionWhole BodyCIC's RequirementBefore Packing
(Final Inspection) 11Anti-rust InspectionWhole BodyAgreed Anti-rust AgentBefore PackingPictures 12Packing InspectionWhole BodyAgreed Packing FormDuring PackingPicturesLarge Girth Gear with 45 Module
 Testing Process:
· QA DOC: Chemical Composition Report, Mechanical Properties Report, UT Report, Heat Treatment Report, Dimensions Check Report
· The data on chemical composition report and mechanical properties report are approved by third party, Luoyang Ship Material Research Institute, CSIC.
· UT test: 100% ultrasonic test according to EN10228-3, SA388, Sep 1921 C/c etc.

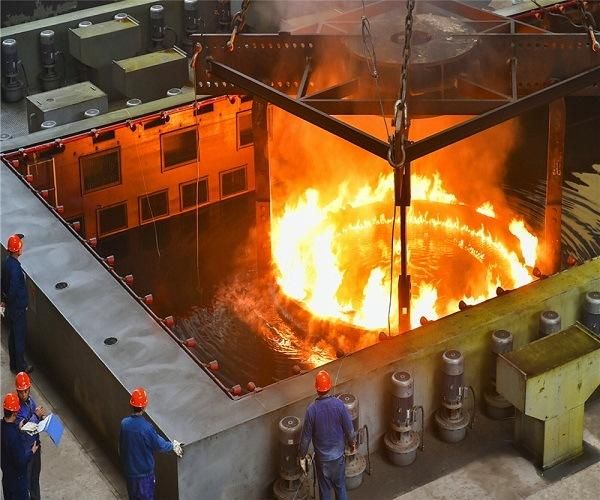

· Heat Treatment Report: provide original copy of heat treatment curve/time table.

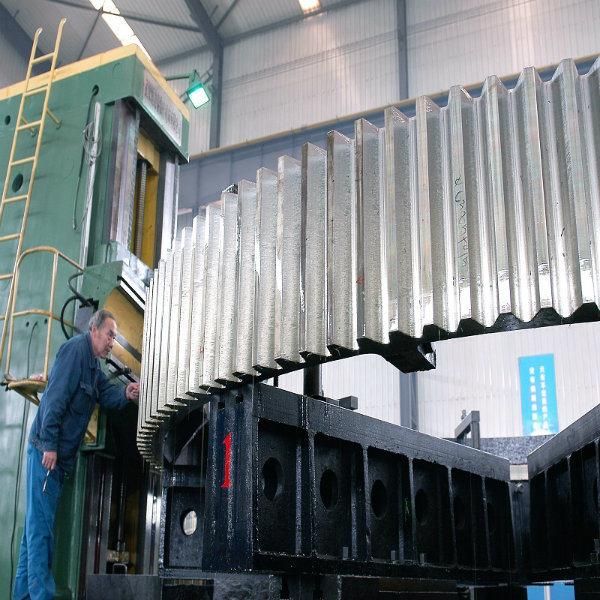

Large Girth Gear with 45 Module

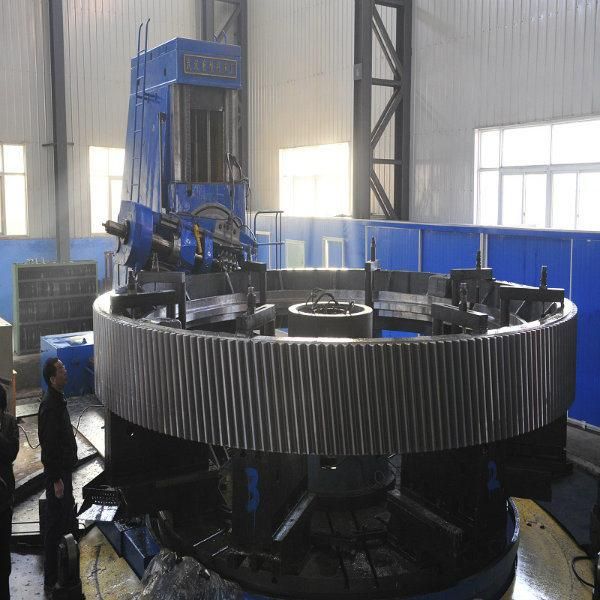

Large Girth Gear with 45 Module
Large Girth Gear with 45 Module
