9 Inch Slewing Drive Used for Wind Power Generation
Coresun Drive Equipment Changzhou Co., Ltd.- Holding Torque：38.7kn.M
- Tilting Moment Torque：33.9kn.M
- Output Torque：7320n.M
- Solar Tracker：Single and Dual Axis
- Slewing Drive：Worm Gear
- 24VDC Motor：24V Sun Tracker Motor
Base Info
- Model NO.：SC9-61-RC-24H15300-RV. A
- Keyword：Slew Worm Gear Drive
- Application：Solar Power System
- Transport Package：Wooden Case
- Specification：SC9-61-RC-24H15300-RV. A
- Trademark：Coresun Drive
- Origin：Changzhou, China
- HS Code：8483409000
- Production Capacity：5000PCS,Month
Description
Model
SC9
IP
IP65
Brand
Coresun Drive
Available Load Weight
500-800kg
IP Class
IP65
Output Torque
854N.m
Tilting Moment Torque
33.9KN.m
Holding Torque
38.7KN.m
Mounting Bolts
M16
24VDC
Gear Ratio
61:1
Efficiency
40%
Coresun Drive Equipment Changzhou Co., Ltd. Slewing drives function with standard worm technology, in which the worm on the horizontal shaft acts as the driver for the gear. The rotation of the horizontal screw turns a gear about an axis perpendicular to the screw axis. This combination reduces the speed of the driven member and also multiplies its torque; increasing it proportionally as the speed decreases. The speed ratio of shafts depends upon the relation of the number of threads on the worm to the number of teeth in the worm wheel or gear.
Slew Drive is a new type of slewing product, usually called slewing ring, which is usually composed of worm, slewing ring, housing, motor and other components. Since the core components are slewing bearings, they can simultaneously withstand axial forces, radial forces, and overturning moments. Compared with traditional rotary products, the new slewing drive features easy installation, easy maintenance and a greater degree of installation space.
Slew Drive are widely used in PV,CPV,STP solar tracking systems and construction applications including truck cranes, manlifts, turntables, port machinery, modular vehicles, small wind power systems and satellite communications.
3.With abundant raw materials and high production efficiency, the company can supply products to customers as quickly as possible and shorten the time for customers to wait for products.
4.Our internal quality control includes first inspection, mutual inspection, in-process quality control and sampling inspection to ensure product quality.The company has complete testing equipment and advanced testing method.5.Strong after-sales service team, timely solve customer problems, to provide customers with a variety of services.

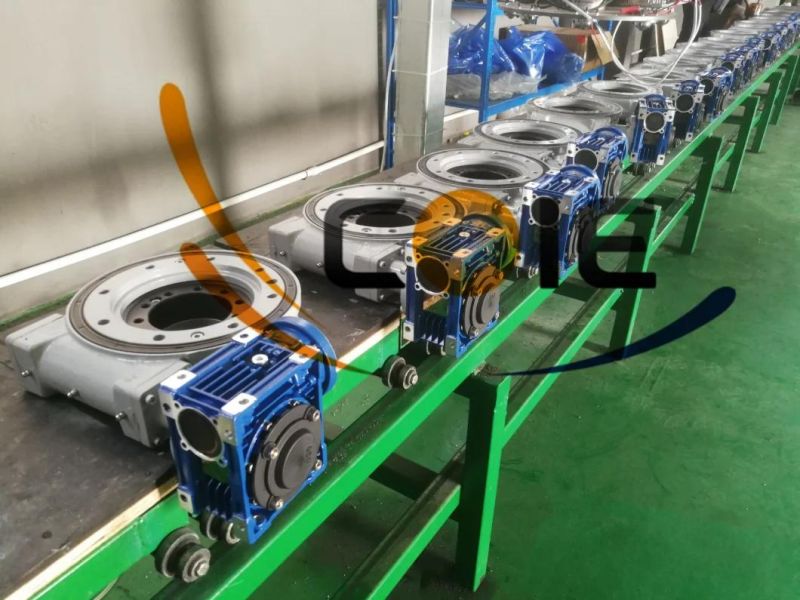

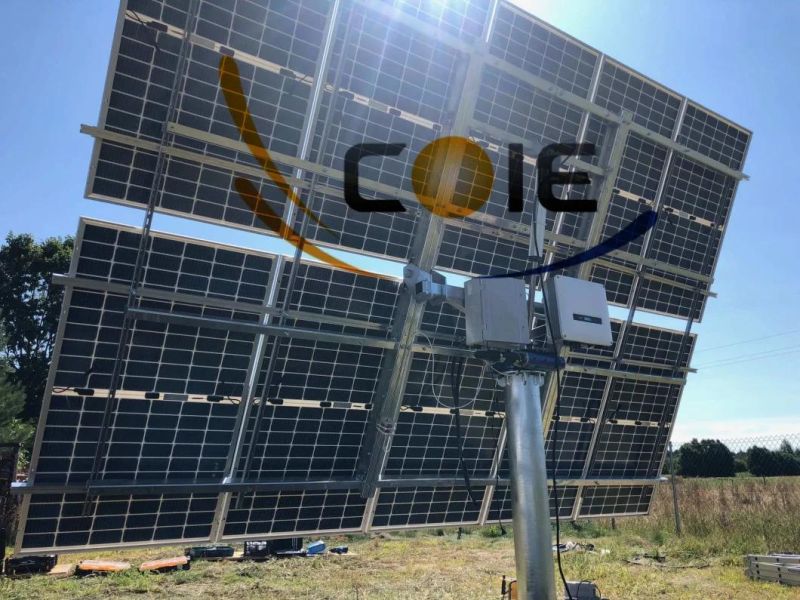

Coresun Drive Slewing Drive Motor Production Photo and Application

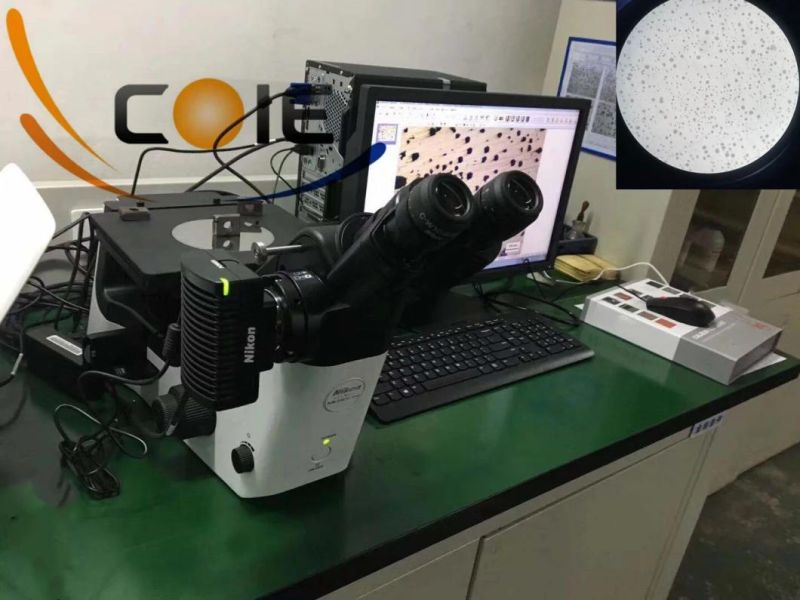

Coresun Drive processes the metallography detection to check the material and organization structure of worm shaft,slewing gear and casting housing.
Coresun Drive slewing drive gear motor with 24VDC motor is certificated by CE
