- Model NO.：S55HK1 and S88
- Pitch：41.40mm
- Width Between Inner Plates：22.23mm
- Roller Diameter：17.78mm
- Pin Diameter：8.28mm
- Plate Height：21mm
- Plate Thickness：3mm
- Chain No：S55HK1
- Tensile Strength：42kn
- Structure (for Chain)：Roller Chain
- Leaf Chains Type：Mine High-Intensity Ring Chain
- Transport Package：Plywood Case
- Specification：ISO, CE
- Trademark：LECTSTYLE
- Origin：China
- HS Code：73151190
- Production Capacity：50 Tons Each Year
Overview

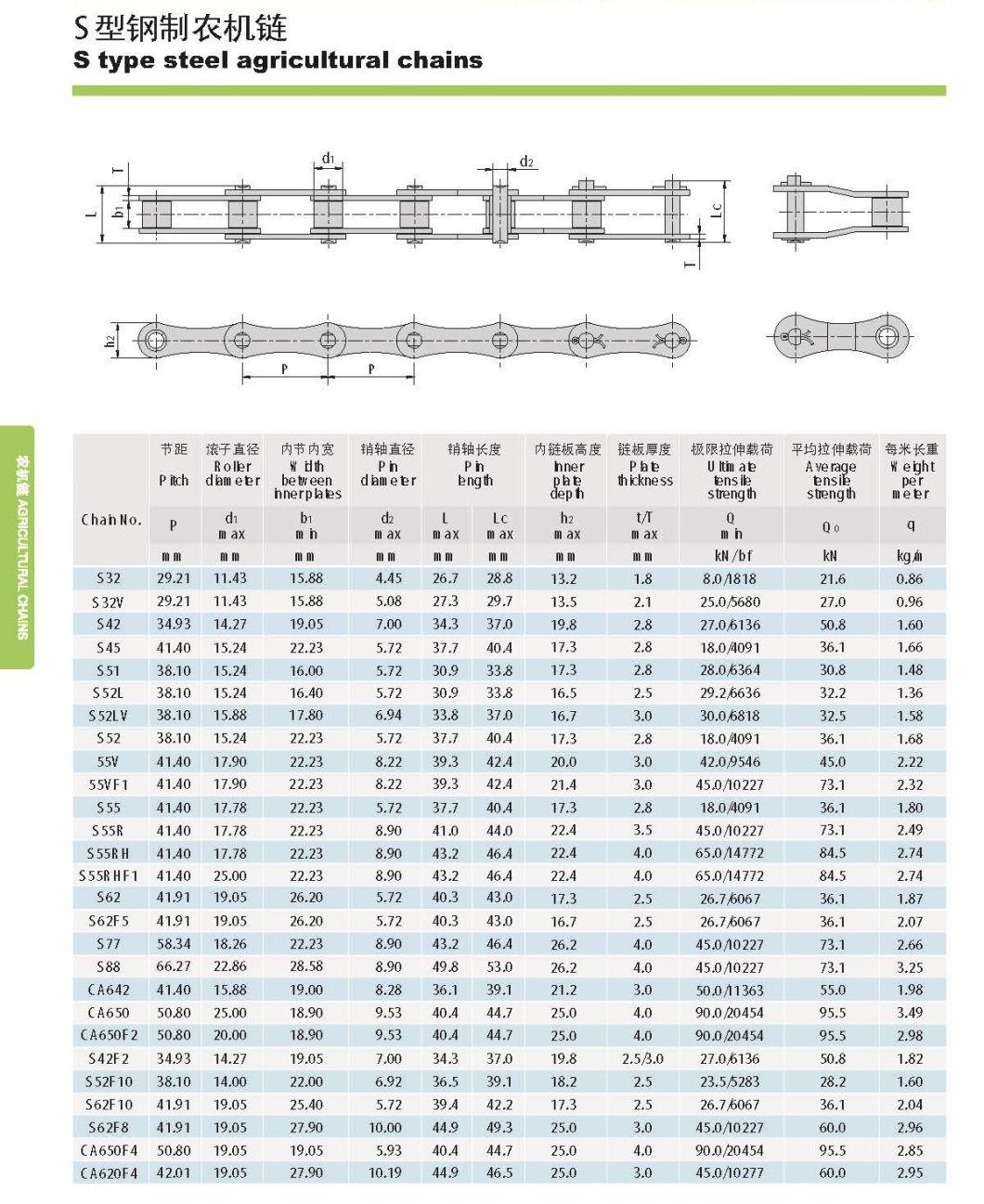

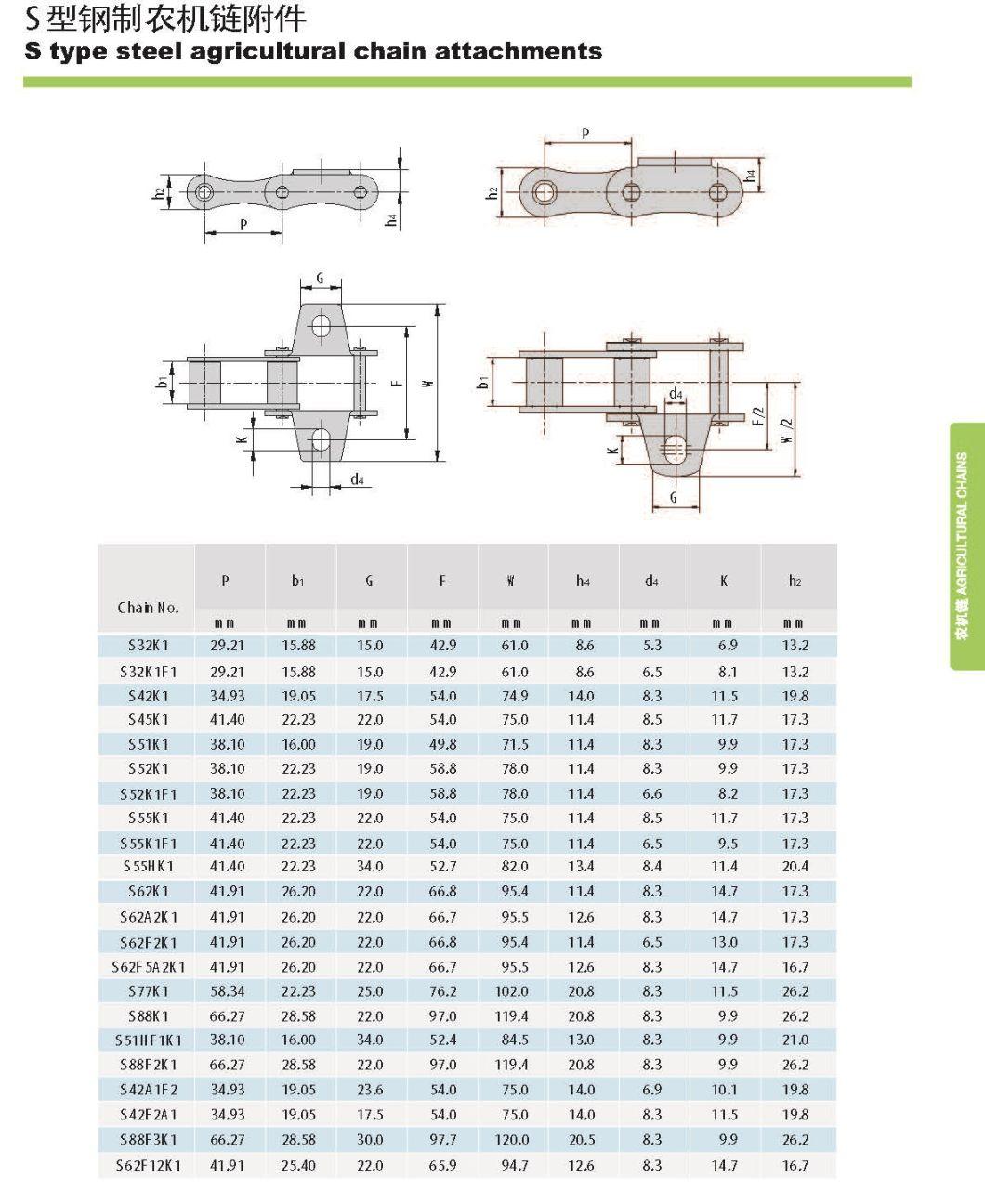

Product DescriptionChain No.
Pitch | Roller diameter | Width between inner plates | Width between outer plates | Depth of chain plates | Pin diameter | Pin length | Plate thickness | Ultimate tensile strength | Weight per meter | | p | d1(Max) | b1(min) | b3(min) | h2(Max) | d2(Max) | b4(Max) | T(Max) | Qo(min) | Q |
| mm | mm | mm | mm | mm | mm | mm | mm | Kn | Kg/m |
| S32 | 29.21 | 11.43 | 15.88 | 20.57 | 13.5 | 4.47 | 26.7 | 1.8 | 8 | 0.86 |
| S32-H | 29.21 | 11.43 | 15.88 | 20.57 | 13.5 | 4.47 | 26.7 | 2 | 17.5 | 0.88 |
| S32V | 29.21 | 11.43 | 15.88 | | 13.5 | 5.08 | 29.7 | 2.1 | 25 | 0.96 |
| S42 | 34.93 | 14.27 | 19.05 | 25.65 | 19.8 | 7.01 | 34.3 | 2.8 | 26.7 | 0.96 |
| S42-H | 34.93 | 14.27 | 19.05 | 25.65 | 19.8 | 7.01 | 34.3 | | 41 | |
| S45 | 41.4 | 15.24 | 22.23 | 28.96 | 17.3 | 5.74 | 38.1 | 2.8 | 17.8 | 1.6 |
| S45-H | 41.4 | 15.24 | 22.23 | 28.96 | 17.3 | 5.74 | 38.1 | | 32 | |
| S45HF1 | 41.4 | 15.24 | 22.23 | | 17.3 | 7.14 | 39.5 | 3 | 36.75 | 2 |
| S55HSD | 41.4 | 17.78 | 22.23 | | 20.4 | 8.27 | 39.5 | 3 | 45 | 2.9 |
| S52 | 38.1 | 15.24 | 22.23 | 28.96 | 17.3 | 5.74 | 38.1 | 2.8 | 17.8 | 1.68 |
| S52-H | 38.1 | 15.24 | 22.23 | 28.96 | 17.3 | 5.74 | 38.1 | | 32 | |
| S55 | 41.4 | 17.78 | 22.23 | 28.96 | 17.3 | 5.74 | 38.1 | 2.8 | 17.8 | 1.8 |
| S55-H | 41.4 | 17.78 | 22.23 | 28.96 | 17.3 | 5.74 | 38.1 | | 32 | 2.25 |
| S55V | 41.4 | 17.78 | 22.23 | 35.3 | 20.7 | 8.27 | 39.4 | 2.9 | 45 | 2.22 |
| S55R | 41.4 | 17.78 | 22.23 | 34.5 | 21.2 | 5.72 | 37.5 | 2.6 | 45 | 2.49 |
| S55RH | 41.4 | 17.78 | 22.23 | 41.4 | 22.4 | 8.9 | 46.4 | 4 | 84.5 | 2.74 |
| S62 | 41.91 | 19.05 | 25.4 | 32 | 17.3 | 5.74 | 40.6 | 6.2 | 26.7 | 1.87 |
| S62-H | 41.91 | 19.05 | 25.4 | 32 | 17.3 | 5.74 | 40.6 | | 32 | |
| S62R-C6E | 41.91 | 19.05 | 25.8 | | 20.1 | 8.5 | 44.6 | 3 | 42 | |
| S62F3 | 41.91 | 19.05 | 25.4 | | 26.2 | 8 | 44.8 | 3 | 58.7 | 3.12 |
| S77 | 58.34 | 18.26 | 22.23 | 31.5 | 26.2 | 8.92 | 43.2 | 4 | 44.5 | 2.66 |
| S77-H | 58.34 | 18.26 | 22.23 | 31.5 | 26.2 | 8.92 | 43.2 | | 80 | |
| S88 | 66.27 | 22.86 | 28.58 | 37.85 | 26.2 | 8.92 | 50.8 | 4 | 44.5 | 3.25 |
| S88-H | 66.27 | 22.86 | 28.58 | 37.85 | 26.2 | 8.92 | 50.8 | | 80 | |
| 38.4R | 38.4 | 15.88 | 19.05 | | 17.3 | 6.92 | 36.4 | 3 | 41.2 | 1.7 |
| 38.4V | 38.4 | 15.88 | 18 | | 17.3 | 6.92 | 38 | 3 | 50 | 1.83 |
| 38.4VB | 38.4 | 15.88 | 19.05 | | 26.2 | 8.28 | 39.4 | 2.8 | 62.5 | 2.17 |
| 38.4VBF2 | 38.4 | 15.88 | 19.05 | | 20.5 | 8.28 | 39.1 | 3 | 50 | 2.33 |
| S38 | 38 | 16 | 21.8 | | 21 | 9 | 43 | 3 | 55 | 2 |
| 55VD | 41.4 | 17.8 | 23 | | 26.2 | 8.22 | 42.4 | 3 | 45 | 2.34 |
| 55VDF1-CPEF | 41.4 | 17.9 | 22.5 | | 23 | 9 | 39.7 | 3 | 50 | 2.68 |
| 55VF1H2 | 41.4 | 17.9 | 22.23 | | 21.4 | 8.22 | 48.4 | 3 | 60 | 2.92 |
| S55HF2 | 41.4 | 23 | 22.23 | | 20 | 8.28 | 45.5 | 3 | 47.5 | 4.27 |
| S55HF1 | 41.4 | 17.78 | 22.23 | | 20.4 | 8.28 | 42.8 | 3 | 45 | 2.9 |
| LV40 | 40 | 12 | 22 | | 17.5 | 6 | 41 | 3 | 31.4 | 1.53 |
| P41.3 | 41.3 | 15.88 | 22.23 | 35.3 | 20.7 | 8.27 | 39.4 | 3 | 50 | 2.45 |
| P40.6 | 40.6 | 15.88 | 20 | 35.45 | 20.7 | 8.27 | 39.4 | 3 | 35 | 1.55 |
| 40SH | 12.7 | 7.95 | 7.84 | | 12 | 3.96 | 19.9 | 2.03 | 22.4 | 0.82 |
| 50SH | 15.875 | 10.16 | 9.4 | | 15.09 | 5.08 | 23.4 | 2.42 | 30.4 | 1.25 |
| 60SH | 19.05 | 11.91 | 12.57 | 25.54 | 18 | 5.94 | 31.6 | 3.25 | 44.1 | 1.87 |
| 80SH | 25.4 | 15.88 | 15.75 | | 24 | 7.92 | 37.7 | 4 | 88.2 | 3.1 |
| 100SH | 31.75 | 19.05 | 18.9 | | 30 | 9.53 | 46.9 | 4.8 | 116.6 | 4.52 |
| 120SH | 38.1 | 22.23 | 25.22 | | 35.7 | 11.1 | 57.5 | 5.6 | 158.2 | 6.6 |
| 630SK | 19.05 | 14.28 | 9.53 | 17.15 | 18.1 | 7.11 | 28 | 3.6 | 42 | 2.18 |
| 630H | 19.05 | 11.91 | 9.53 | | 18.1 | 5.94 | 27.8 | 3.25 | 42 | 2.16 |
| C40, C08A-1 | 12.7 | 7.95 | 7.85 | | 12 | 3.96 | 16.6 | 1.5 | 14.1 | 0.78 |
| C50, C10A-1 | 15.875 | 10.16 | 9.4 | | 15.09 | 5.08 | 20.7 | 2 | 22.2 | 1.27 |
| C60, C12A-1 | 19.05 | 11.91 | 12.57 | | 18 | 5.94 | 25.9 | 2.42 | 31.8 | 1.86 |
| C80, C16A-1 | 25.4 | 15.88 | 15.75 | | 24 | 7.92 | 32.7 | 3.25 | 56.7 | 3.03 |
| C100, C20A-1 | 31.75 | 19.05 | 18.9 | | 30 | 9.53 | 40.4 | 4 | 88.5 | 4.51 |
| C120, C24A-1 | 38.1 | 22.23 | 25.22 | | 36.2 | 11.1 | 50.3 | 4.8 | 127 | 6.63 |
| | | | | | | | | | | |
| C550 | 41.4 | 16.87 | 19.81 | 26.16 | 19.05 | 7.19 | 38.2 | 2.7 | 39.8 | 1.94 |
| C550-H | 41.4 | 16.87 | 19.81 | 26.16 | 19.05 | 7.19 | 39 | 3 | 39.8 | 2.24 |
| C620 | 42.01 | 17.91 | 24.51 | 31.72 | 19.05 | 7.19 | 42.2 | 3.15 | 39.1 | 2.35 |
| C620-H | 42.01 | 17.91 | 24.51 | 31.72 | 19.05 | 7.19 | 42.2 | | 57.8 | |

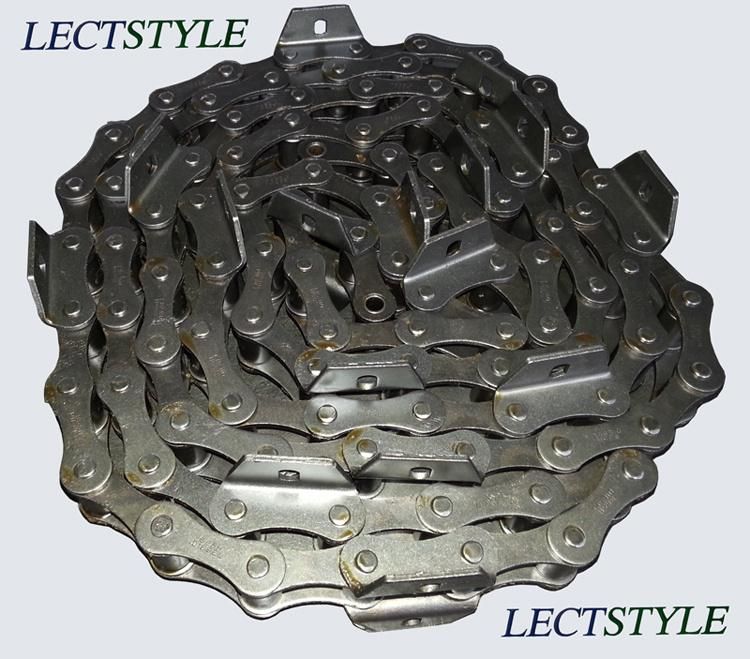

Detailed Photos
Product Parameters
Packaging & ShippingOur Advantages
Company Profile
After Sales Service
FAQ
Question:
1.Q:How about mould cost?
A: primarily depend on : 1.Drawing, 2.material, 3.weight and quantity.
We need to know the structure of each parts to analyze the mold solution by:
1) --Complete design drawing, product model or actual sample ----- the best way
--PDF drawing with complete dimension for each parts
--Clearly photos for each parts with more angle-views to show every features.
2)The materials, technical parameters and surface treatments.
technical parameters: tell us about its model, pitch, roller diameter, width between inner plates, attachment type, outside drawing etc.
3)The quantity of order.
2.Q:How to control the product processing?
A: The processing report or pictures will be sent to the customer every week/ each month for review.
3.Q:Who will own the mould?
A:Customer, also the mould can be kept in our factory for future order.
4.Q:How long do you make your quotation?
A:After receiving detail informations we will quote in 1 to 3 days.
5.Q: MOQ? ---
small chain type: if its pitch is less than 38.10mm and its thickness is less than 5mm, MOQ is 1500 meters on these roller chains or conveyor chains;
middle chain type: MOQ is 1000 meters on these roller chains or conveyor chains;
big chain type: if its pitch is more than 76.20mm and its thickness is more than 10mm, MOQ is 200 meters on these roller chains or conveyor chains;
I hope we can do business together, and look forward to hearing from you soon
