Small Size and Light Weight Jt15 Spiral Bevel Industrial Gearboxes

Dongguan Jacton Industry Co., Ltd.
  • Application:Motor, Electric Cars, Machinery, Marine, Agricultural Machinery, Car
  • Function:Distribution Power, Clutch, Change Drive Torque, Change Drive Direction, Speed Changing, Speed Reduction, Speed Increase
  • Layout:T Type, L Type
  • Hardness:Hardened Tooth Surface
  • Installation:Universal Mounting
  • Step:Single-Step

Base Info

  • Model NO.:JT15-1: 1and 2: 1 Ratio
  • Type:Spiral Bevel Gearbox
  • Structures:Spiral Bevel Gears, Input Shaft and Output Shaft..
  • Max. Input Power:1.79kw
  • Max. Torque:28.1nm
  • Gear Ratios:1:1, 2:1
  • Shafts Configurations:2 Way, 3 Way, 4 Way
  • Drive Shafts Diameter:15mm
  • Max. Input and Output Speed:1500rpm
  • High Efficiency:95%-98%
  • Shafts Rotation Directions:Forward and Reverse Direction
  • Assembly Drawing Type:3D Model, 2D Drawing
  • Warranty Period:1 Year
  • Transport Package:Standard Exporting Plywood Cases
  • Trademark:JACTON
  • Origin:Guangdong, China
  • HS Code:8483409000
  • Production Capacity:6650 PCS,Month

Description

Basic Info.

Model NO. JT15-1: 1and 2: 1 Ratio Type Spiral Bevel Gearbox Structures Spiral Bevel Gears, Input Shaft and Output Shaft.. Max. Input Power 1.79kw Max. Torque 28.1nm Gear Ratios 1:1, 2:1 Shafts Configurations 2 Way, 3 Way, 4 Way Drive Shafts Diameter 15mm Max. Input and Output Speed 1500rpm High Efficiency 95%-98% Shafts Rotation Directions Forward and Reverse Direction Assembly Drawing Type 3D Model, 2D Drawing Warranty Period 1 Year Transport Package Standard Exporting Plywood Cases Trademark JACTON Origin Guangdong, China HS Code 8483409000 Production Capacity 6650 PCS/Month

Product Description

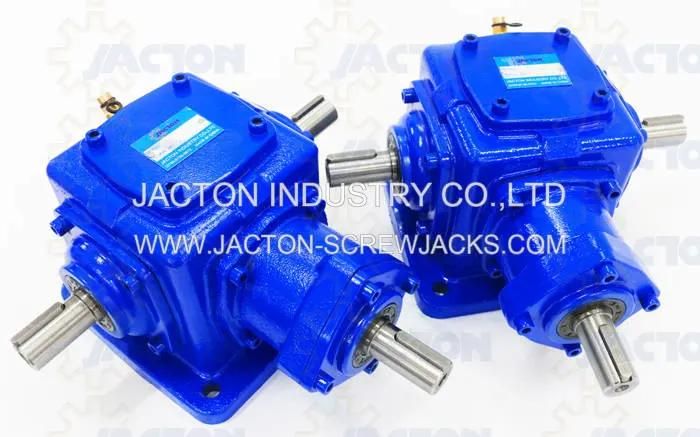

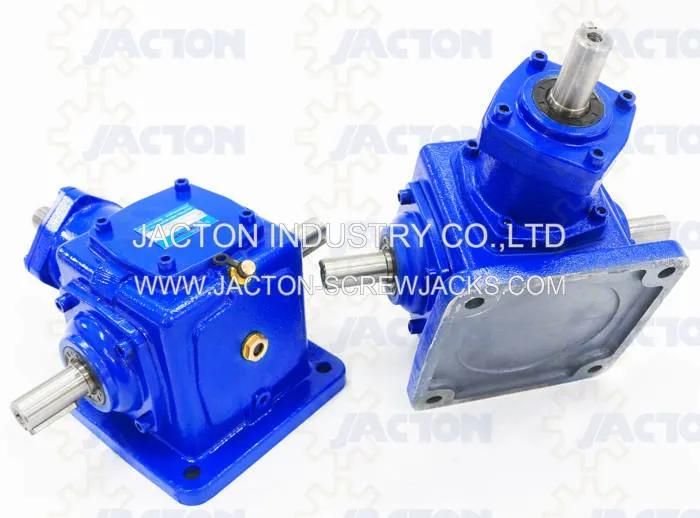

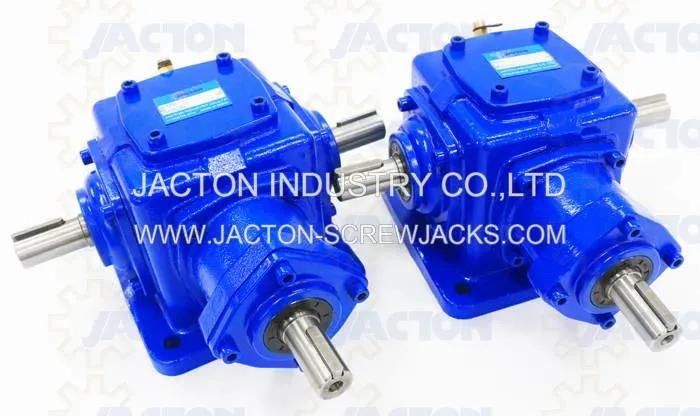

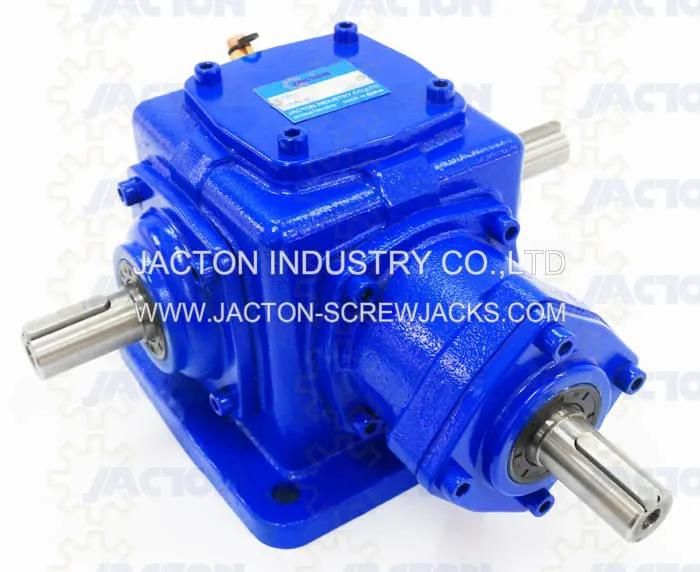

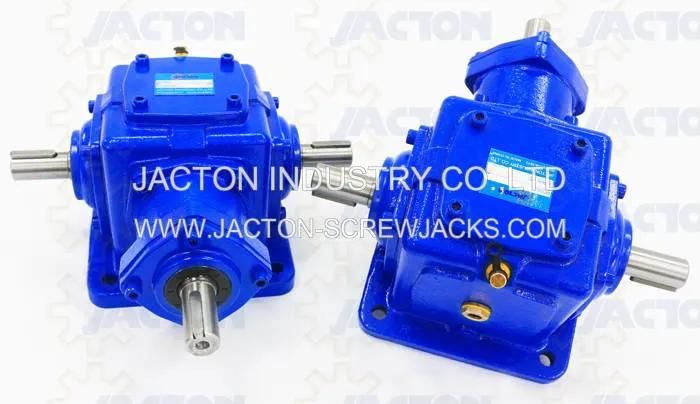

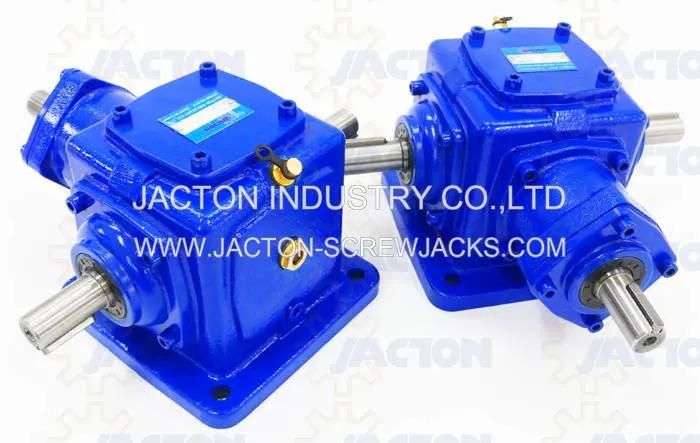

Jacton Small Size and Light Weight JT15 Spiral Bevel Industrial Gearboxes are available in numerous configurations to meet our customers' specific requirements. These right angle gearboxes provide outputs at 90° from the input with superior performance, durability, and versatility for nearly any power transfer application.

Small Size and Light Weight JT15 Spiral Bevel Industrial Gearboxes Features:
1. Maximum allowable torque 28.1 Nm, Maximum allowable power 1.79 kw, maximum allowable input or output speed 1500 rpm.
2. Spiral bevel gears ratios 1:1 and 1:2, customize 1:3 reduction ratios. Transmission efficiency up to 94-98%.
3. Used in pairs spiral bevel gears to transmit rotary motion, mechanical power and torque.
4. Solid input and output shafts as standard. Customized hollow shaft, motor adapter like IEC, NEMA flange etc.
5. Two-way gearboxes, three-way 90° gearboxes, four-way right angle gearboxes configurations as standard.
6. 42 types input and output shaft arrangements and rotating directions. Note: input and output shafts can be rotated in both clockwise and anti-clockwise rotation directions.
7. Mouting positions: horizontal mounting, over hung mounting, side wall mounting.
8. Lubrication depends on output speed. Standard is industrial gear oil lubrication that is maintenance free.
9. High efficiency, high transmission capacity, low backlash, noiseless operation, low running temperature and long service life.

Small Size and Light Weight JT15 Spiral Bevel Industrial Gearboxes main components with international standard materials: The main components are Spiral Bevel Gears: alloy steel material, case hardened and lapped in pairs for intersecting shafts, low noise with grinded spiral teeth, high rigidity and wear risistance. Input Shaft and Output Shaft: hardened and tempered alloy steel material, hanging heavy load capacity, with key and keyway. Customized stainless steel, chromium coated or other corrosion resistance painting. Customized spline shaft, shaft without key and keyway. Housing: high rigidity cast iron, customized aluminum, stainless steel, galvanic coating or other corrosion resistance painting. Bearing: heavy duty on soild input shafts and output shafts, ball bearings on hollow input shaft for motor flange, customized reinforced bearings for higher radial and axial load.
Small Size and Light Weight Jt15 Spiral Bevel Industrial Gearboxes
Small Size and Light Weight Jt15 Spiral Bevel Industrial Gearboxes
Small Size and Light Weight Jt15 Spiral Bevel Industrial Gearboxes
Small Size and Light Weight Jt15 Spiral Bevel Industrial Gearboxes
Small Size and Light Weight Jt15 Spiral Bevel Industrial Gearboxes
Small Size and Light Weight Jt15 Spiral Bevel Industrial Gearboxes
Small Size and Light Weight JT15 Spiral Bevel Industrial Gearboxes Specifications

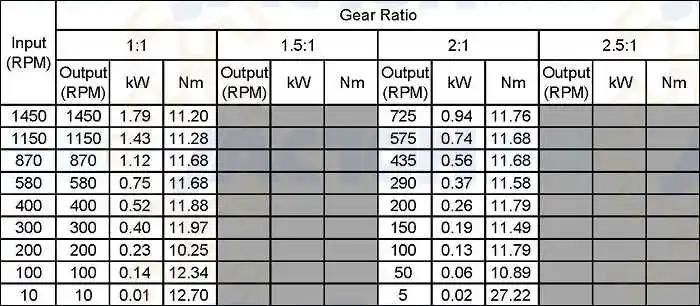

The specifications of Small Size and Light Weight JT15 Spiral Bevel Industrial Gearboxes include bevel gears ratio, input speed, output speed, power rating, and working torque.
Small Size and Light Weight Jt15 Spiral Bevel Industrial Gearboxes

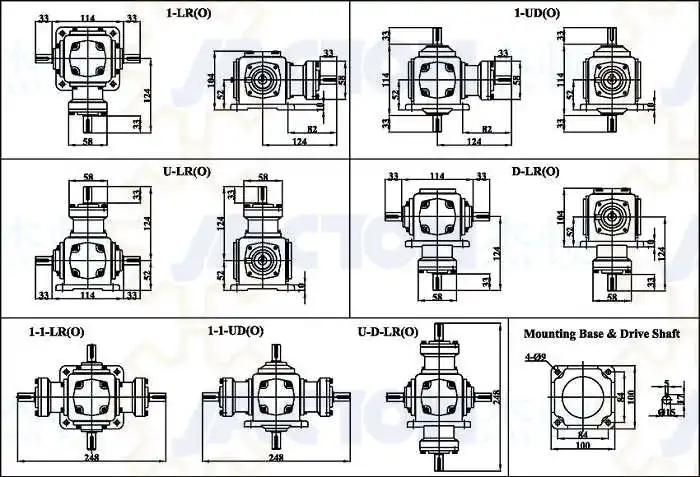

Small Size and Light Weight JT15 Spiral Bevel Industrial Gearboxes Dimension Drawing
Find out Small Size and Light Weight JT15 Spiral Bevel Industrial Gearboxes front view, side view and top view assembly drawings. About 2D Autocad dwg, dxf assembly drawings, and 3D stp, step, model, igs, prt or catpart assembly drawings, please contact us directly.
Small Size and Light Weight Jt15 Spiral Bevel Industrial Gearboxes
