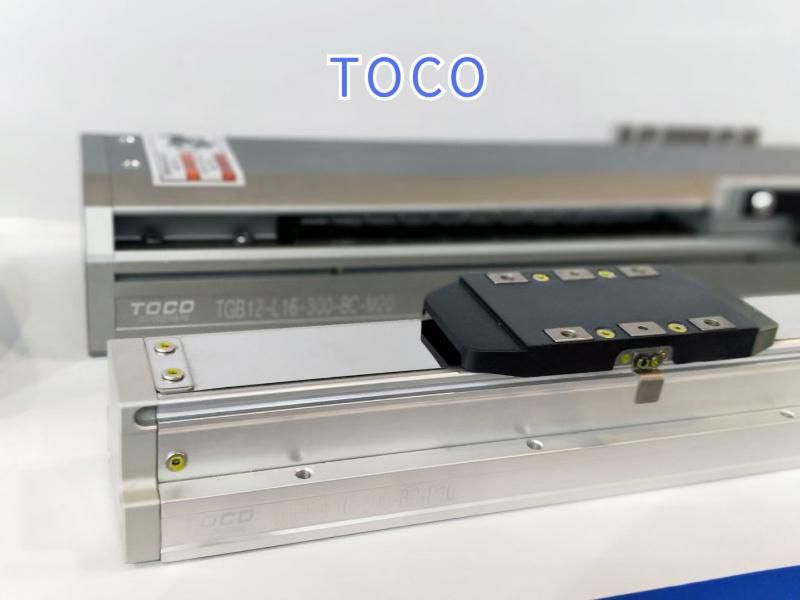

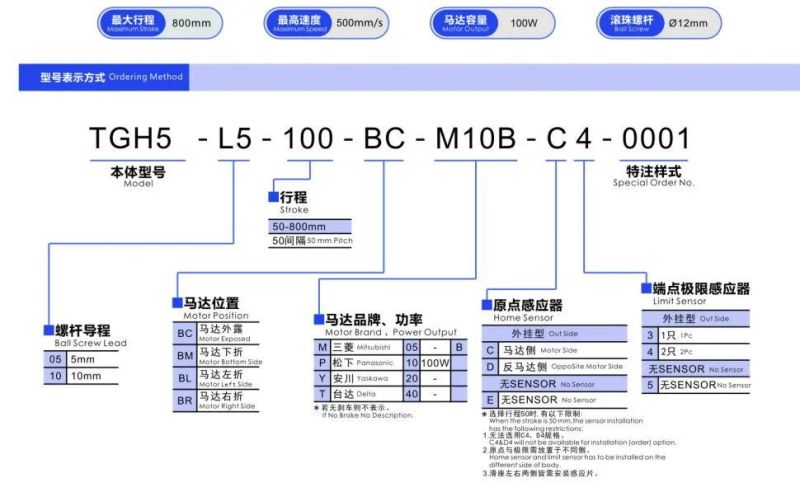

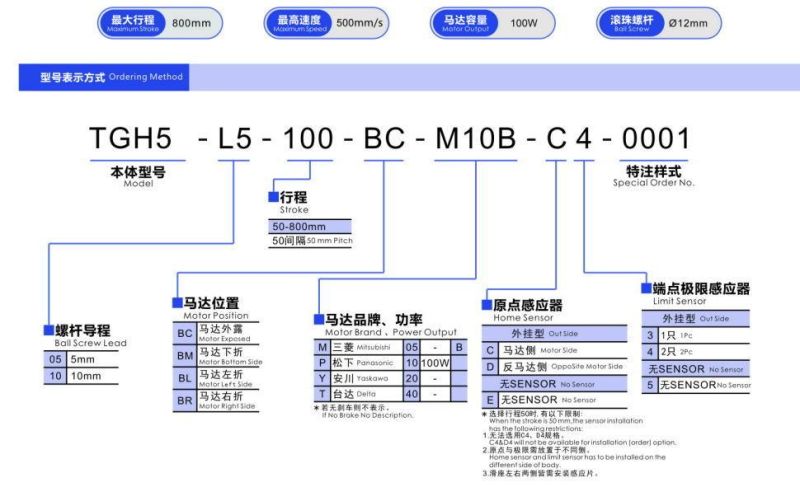

• Model NO.：TGH5, TGH8, TGH12
• Max Stroke：800mm to 1000mm
• Max Playload：30kg to 50kg
• OEM：Yes
• Driven：Ball Screw
• Sealed Structure：Yes
• Transport Package：Carton Box or Wooden Case
• Specification：TGH5, TGH8, TGH12
• Trademark：TOCO
• Origin：China
• HS Code：8487900000
• Production Capacity：5000 Sets,Month

BrandTOCO MOTIONModelTGHSize customizeTGH5,TGH8,TGH12HS-CODE8487900000Items packingPlastic bag+Cartons Or Wooden Packing Payment termsT/T, Western UnionProduction lead time15 business days for sample, 35 days for the bulkKeywordSingle axiseApplication1. Automatic controlling machine
2. Semi-conductor industry
3. General industry machinery
4. Medical equipment
5. Solar energy equipment
6. Machine tool
7. Parking system
8. High-speed rail and aviation transportation equipment, etc.



Operation
1. The operation conditions need to be within the rated values as shown in the technical information.

2. Avoid dust, debris, and any foreign objects from entering the ball return system.

3. The operational temperature should be under 80 ºC. In high-temperature environments above 80ºC.

4. If the product can be used in a special environment, such as vacuum, vibration,
clean room, corrosive chemicals, organic solvents, extremely high or low temperatures, humidity, liquid splashes,
oil drops or mist, high salt, heavy load, vertical or cantilever installations. Please Confirm first with TOCO.

5. For vertical installations, when loaded, there is a possibility that the slider may fall. We recommend adding
proper braking and ensure functionality before the operation.

Maintenance
1. Lubricate the product before the initial use. Note the type of grease used and avoid mixing different types together.

2. For normal operating conditions, it is recommended to check the operation every 100km, clean and supply grease onto the rail and shaft.

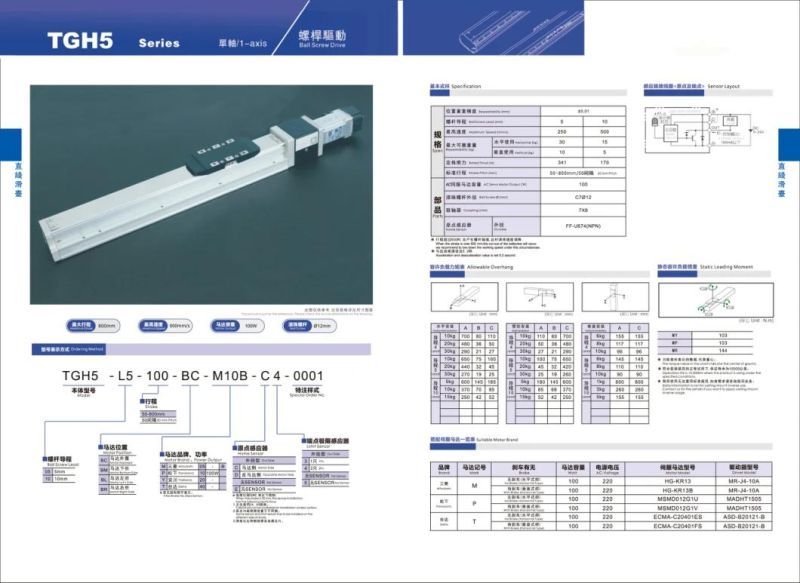

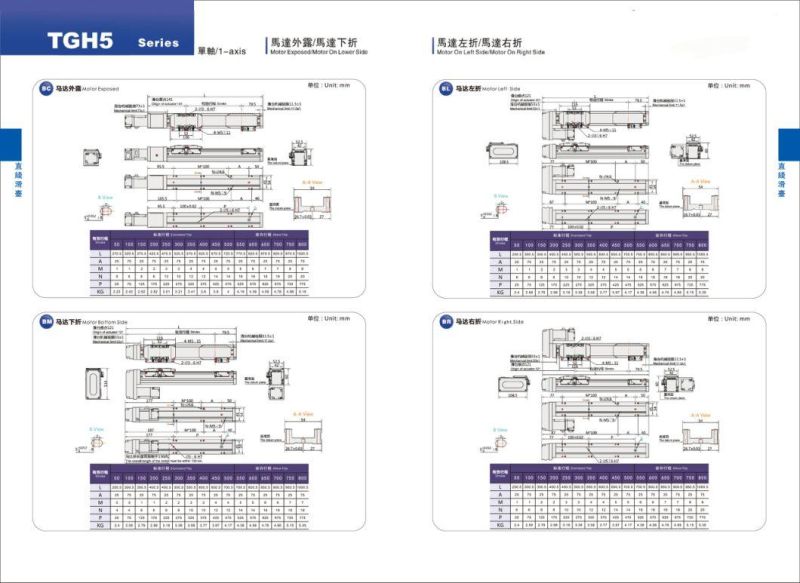

Catalogs








Package & Shipping
1.Package: Carton or wooden case.
2.Delivery time: 15 days after receiving payment.
3.Shipping: by express (DHL, TNT, FedEx, etc.) or by sea.

TOCO Exhibition



Taiwan brand registered trademark, High-Tech Enterprise, letter patents, and ISO.
