Udl 0.18kw Stepless Speed Controller for Speed Reducer

Zhejiang Tuosu Motor Manufacturing Co., Ltd.
  • Application：Motor, Machinery, Agricultural Machinery
  • Function：Speed Changing, Speed Reduction
  • Layout：Bevel
  • Hardness：Hardened Tooth Surface
  • Installation：Horizontal Type
  • Step：Double-Step

Base Info

  • Model NO.：UDL
  • Type：Bevel
  • Motor Power：0.18kw-160kw
  • Voltage：380V ( Also Done as Your Need)
  • Frequency：50,60Hz
  • Enamelled Wire：Copper Wire ( Also Done Aluminum as Your Need)
  • Color：Done as Your Need (Connon Blue)
  • Gearbox Body：Cast Iron
  • Surface Hardness of Gear：HRC58°-62°
  • Protection Grade：IP55
  • Gear：20crmnti
  • Housing Hardness：Hbs90-240
  • Transport Package：Carton ,Plywood Case,Wooden
  • Trademark：GPHQ
  • Origin：China
  • HS Code：84834090
  • Production Capacity：200000,Year

Description

Technical dataGear unit reduction ratio[i]1.4 to 7.0Output torque[Nm]≤118Motor power range[kW]0.18 to 7.5

The design of UDL series stepless speed variator compromises the advanced technology both at home and abroad. The products include the following main characteristics:
     1. High speed-regulating precision: up to 0.5-1 rotation.
     2. Large speed -changing range: The speed ratio ranges from 1:1.4 to 1:7 freely.
     3. High in strength and long in service life.
     4. Convenient to regulate the speed.
     5. Continuous in running, front-to-back in running direction, smooth in driving, stable in performance and low in noise.
     6. Full in sealing and suitable for any environment.
     7. Compact in structure and small in volume.
     8. Made of high-quality aluminum alloy die cast into forming, good-looking in appearance, light in weight and it never gets rusty.
     9. Good in adaptation: UDL series stepless speed variators can be combined with all kinds of speed reducers, as to achieve low stepless speed changing.

 Our  reduction geared motor Advantage

1,reasonable price with excellent quality
2,delivery in time
3,safe ,reliable ,economical and durable
4,stable transmission ,quiet operation
5,smooth running and low noise
6,nice appearance ,durable service life
7,high heat-radiating efficiency ,high carrying ability
8,each speed variator must be tested before packing
9.reply in high efficiency during one working day
10. professional to produce speed variator


If there is any question, please don't hesitate to contact with me (EVA), U can send us your inquiry. And you will get response in 1 working day.

CATALOGUE :

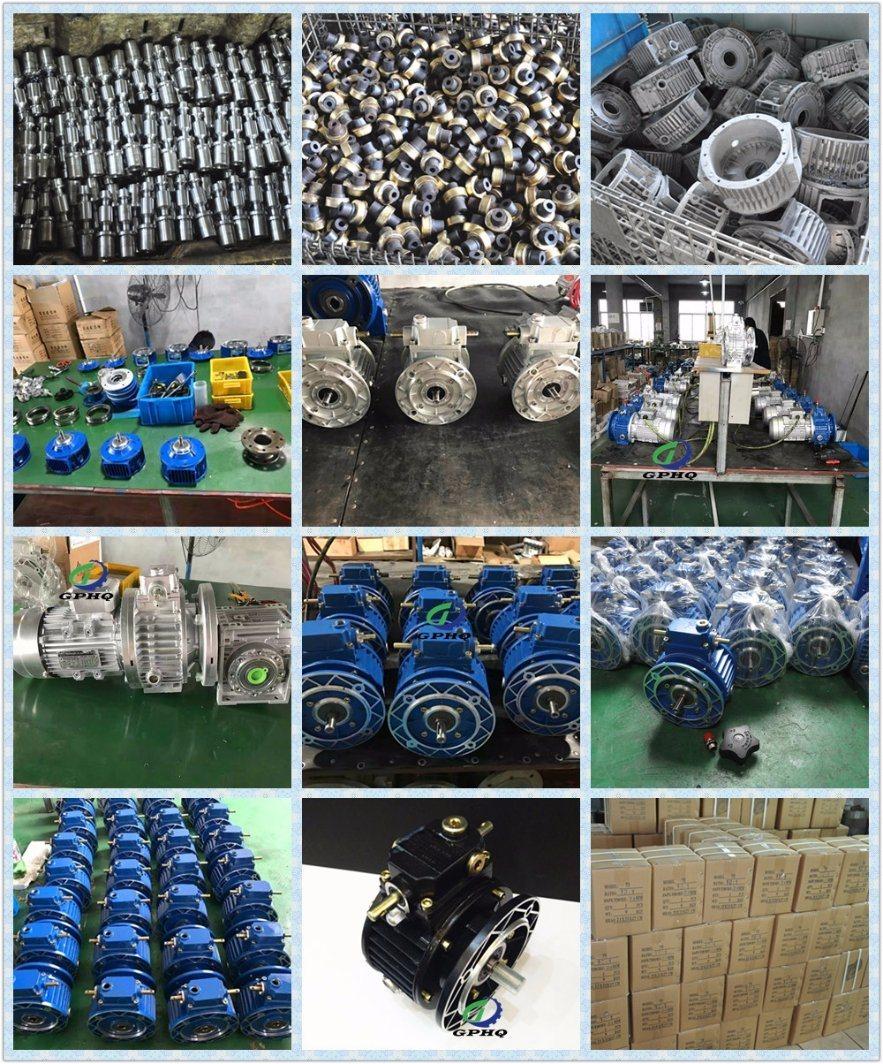

PRODUCING PROCESS:

Udl 0.18kw Stepless Speed Controller for Speed Reducer

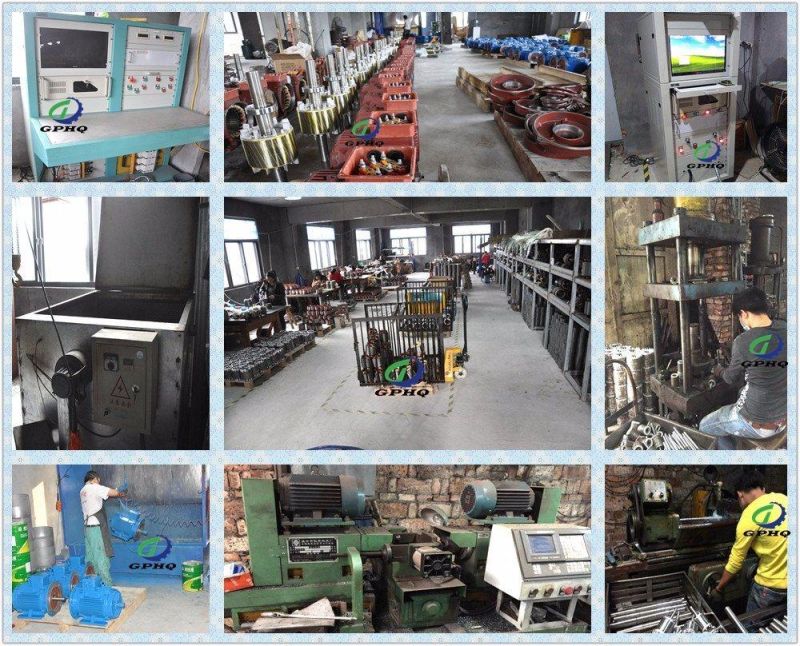

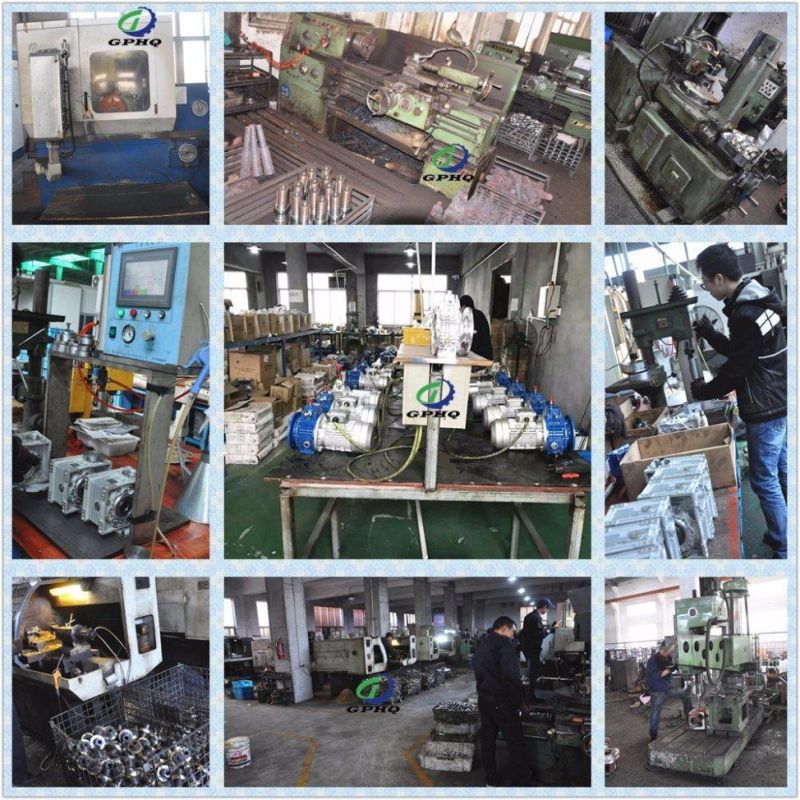

WORKSHOP EQUIPMENT:
Udl 0.18kw Stepless Speed Controller for Speed Reducer
Udl 0.18kw Stepless Speed Controller for Speed Reducer

CONTACT US :
Udl 0.18kw Stepless Speed Controller for Speed Reducer



FAQ
1, Q:what's your MOQ for ac gearbox motor  ?
A: 1pc is ok for each type electric gear box  motor

2, Q: What about your warranty for your induction speed reducer motor ?
A: one year ,but except man-made destroyed

3, Q: which payment way you can accept ?
A: TT, western union .

4, Q: how about your payment way ?
A: 100%payment in advanced less $5000 ,30% payment in advanced payment , 70% payment before sending over $5000.

5, Q: how about your packing of speed reduction motor  ?
A: plywood case ,if size is small  ,we will pack with pallet for less one container

6, Q: What information should be given, if I buy electric helical geared motor  from you ?
A: rated power,  ratio or output speed,type ,voltage , mounting way , quantity , if more is better ,
