• Model NO.：SA67-Y80N4-0.75-121.33-M1
• Hardness：Hardened Tooth Surface
• Installation：Vertical Type
• Step：Double-Step
• Type：Helical Worm Gear
• Color：Ral5010&Blue or Customized
• Mounted Type：Foot Mounted, Flange Mounted
• Mounting Position：M1-M6
• Based No.：S37-97
• Ratio：6.8-288r,Min
• Output Torque：11-4530n.M
• Input Speed：0.12-22kw
• Input Module：Aqa, Am, Ad
• Gear Material：20grmnti
• Heat Treatment：Integral Carburizing and Quenching
• Case Processing Technology：Horizontal Machine Center
• Precision：T6
• Bearing Brand：C&U
• Oil Seal Brand：SKF
• Cover Brand：Nak
• Transport Package：Wooden Case, Polywood
• Specification：ISO, CE, SGS, TUV, UL
• Trademark：Starshine Drive
• Origin：China
• HS Code：8483409000
• Production Capacity：3000PCS, Month
• Package size per unit product：2.30cm * 3.00cm * 4.50cm
• Gross weight per unit product：57.000kg

Basic Info.

Model NO. SA67-Y80N4-0.75-121.33-M1 Hardness Hardened Tooth Surface Installation Vertical Type Step Double-Step Type Helical Worm Gear Color Ral5010&Blue or Customized Mounted Type Foot Mounted, Flange Mounted Mounting Position M1-M6 Based No. S37-97 Ratio 6.8-288r/Min Output Torque 11-4530n.M Input Speed 0.12-22kw Input Module Aqa, Am, Ad Gear Material 20grmnti Heat Treatment Integral Carburizing and Quenching Case Processing Technology Horizontal Machine Center Precision T6 Bearing Brand C&U Oil Seal Brand SKF Cover Brand Nak Transport Package Wooden Case/ Polywood Specification ISO, CE, SGS, TUV, UL Trademark Starshine Drive Origin China HS Code 8483409000 Production Capacity 3000PCS/ Month

Packaging & Delivery

Package size per unit product 2.30cm * 3.00cm * 4.50cm Gross weight per unit product 57.000kg

Product Description

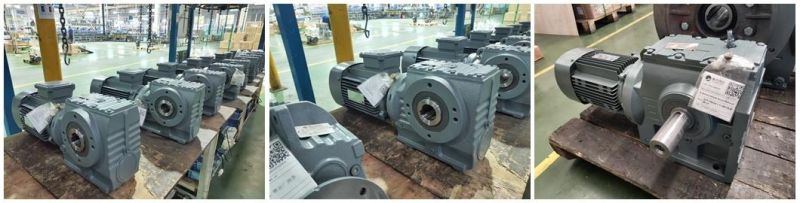

Starshine Drive S Series Helical-Worm Geared Motor

Features:

1. High efficiency: 75%-80%;
2. High technology: the helical gear and a worm gear combined with an integrated transmission to improve the torque and efficiency.
3. High precision: the gear is made of high-quality alloy steel forging, carbonitriding and hardening treatment, grinding process to ensure high precision and stable running
4. High interchangeability: highly modular, serial design, strong versatility and interchangeability.

Technical parameters

Type	Old Type	Output Torque	Output Shaft Dia.
SHS37	S37	90N.m	φ20
SHS47	S47	170N.m	φ25
SHS57	S57	300N.m	φ30
SHS67	S67	520N.m	φ35
SHS77	S77	1270N.m	φ45
SHS87	S87	2280N.m	φ60
SHS97	S97	4000N.m	φ70

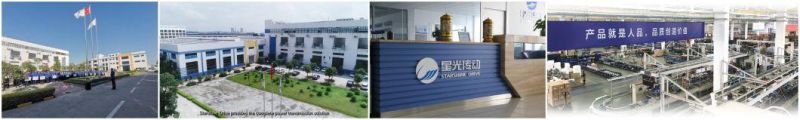

About Starshine Drive

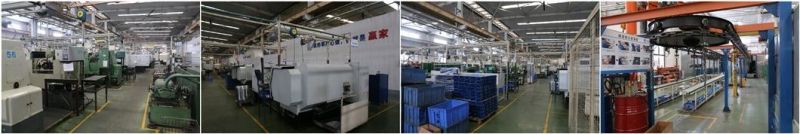

Guangdong Starshine Drive Co.,Ltd(Starshine) have a strong technical force with over 350 employees at present, including over 30 engineering technicians, 30 quality inspectors, covering an area of 80000 square meters and kinds of advanced processing machines and testing equipments. We have a good foundation for the industry application development and service of high-end speed reducers & variators owning to the provincial engineering technology research center,the lab of gear speed reducers, and the base of modern R&D.

Our products are widely used in ceramic industry, glass industry, woodworking machinery , high voltage switch, food & beverage, packaging & printing, Storage & logistics, hoisting & transportation facilities…etc , and Starshine technically provide the professional product & service for the medium and high-end customers, and our gearboxes are best-selling in domestic, and even in abroad , such as in Europe, North America, South America, Middle East, South Asia, Southeast Asia, Africa…etc.

 In the future , Starshine will hold the creed of "serving customer, diligence & simplicity, self-criticism, innovation, honesty, teamwork", and the concept of "quality creates value" to focus on the customers' requirements and provide them the competitive transmission solution and create value for them constantly, and make a high-end equipment manufacturing industry and create a preferred brand of replacing import products and upgrading continuously for the end users.

Team

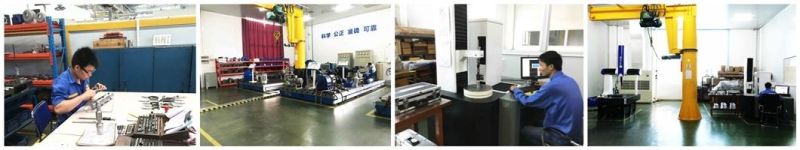

Quality Control
Quality:Insist on Improvement,Strive for Excellence With the development of equipment manufacturing indurstry,customer never satirsfy with the current quality of our products,on the contrary,wcreate the value of quality.
Quality policy:to enhance the overall level in the field of power transmission
Quality View:Continuous Improvement , pursuit of excellence
Quality Philosophy:Quality creates value

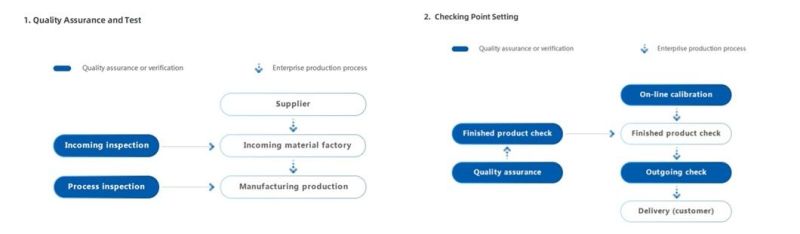

3. Incoming Quality Control
To establish the AQL acceptable level of incoming material control, to provide the material for the whole inspection, sampling, immunity. On the acceptance of qualified products to warehousing, substandard goods to take return, check, rework, rework inspection; responsible for tracking bad, to monitor the supplier to take corrective measures to prevent recurrence.

4. Process Quality Control
The manufacturing site of the first examination, inspection and final inspection, sampling according to the requirements of some projects, judging the quality change trend; found abnormal phenomenon of manufacturing, and supervise the production department to improve, eliminate the abnormal phenomenon or state

5. FQC(Final QC)
After the manufacturing department will complete the product, stand in the customer's position on the finished product quality verification, in order to ensure the quality of customer expectations and needs.

6. OQC(Outgoing QC)
After the product sample inspection to determine the qualified, allowing storage, but when the finished product from the warehouse before the formal delivery of the goods, there is a check, this is called the shipment inspection.Check content:In the warehouse storage and transfer status to confirm, while confirming the delivery of the product is a product inspection to determine the qualified products.

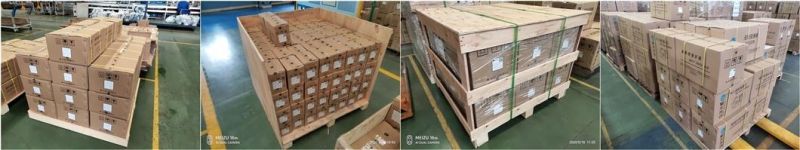

Packing

Delivery
