• Model NO.：CW,WH series hollow flank worm reducer CWU140

Basic Info.

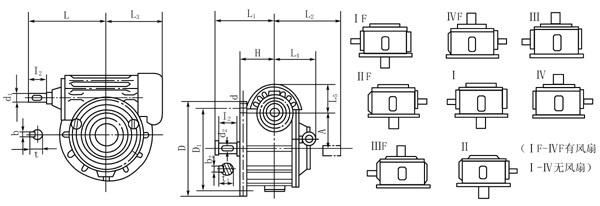

Model NO. CW/WH series hollow flank worm reducer CWU140

Product Description

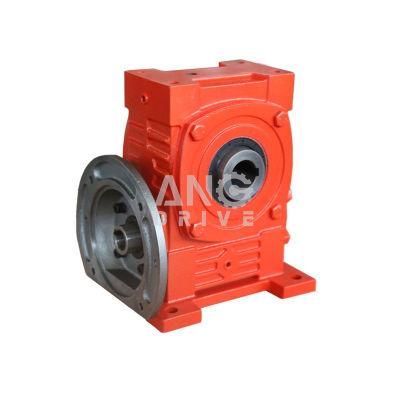

CW/WH series hollow flank worm gearbox is divided into circular cylindrical worm reducer (GB9147-88) and circular arc tooth cylindrical worm reducer series, using the single-stage worm reduction drive. Suitable for metallurgy, mining, lifting, transport, cement, textile, chemical, construction, energy, light industry and other industry machinery reduction drive.

• Reducer input speed n1 1500 r/min or less.
• Reducer working environment temperature for - 40 ~ 40 ºC; When the working environment temperature is lower than 0 ºC, before the start of the lubricating oil must be heated to 0 ºC above; When the working environment temperature is higher than 40 ºC, the cooling measures must be taken.







Model: CWU140

Ratio: 5, 6.3, 8, 10, 12.5, 16, 20, 25, 31.5, 40, 50, 63(could be changed according to customer).
Input speed(rpm): 750, 1000, 1500(could be changed according to customer)
Input power(kW): 3.5-189
Center distance(mm): 140
