Inline Shaft G3 Helical Gear Reducer AC Geared Motor for Conveyor Transmission

Zhejiang Gele Transmission Technology Co., Ltd.
  • Application：Motor, Machinery, Marine, Agricultural Machinery, Power Transmission Applications
  • Function：Distribution Power, Clutch, Change Drive Torque, Change Drive Direction, Speed Changing, Speed Reduction
  • Layout：Coaxial
  • Hardness：Hardened Tooth Surface
  • Installation：Vertical or Horizontal Type
  • Step：Two Stage- Three Stage

Base Info

  • Model NO.：G3LM G3FM G3LS G3FS 0.1 0.2 0.4 0.75 1.5 2.2KW
  • Type：Helical Gear Box
  • Ratio：5-200
  • Power Range：0.1-0.2-0.4-0.75-1.5-2.2kw
  • Voltage：110V-200V-220V-230V-240V-380V-400V-415V-440V
  • Starting Method：Direct Start
  • Output Torque：3.2-764nm
  • Installation Form：Foot or Flange Mounted
  • Output Shaft Material：20crmnti
  • Housing Material：Aluminum or Cast Iron
  • Oil Seal：SKF or Ksk
  • Bearing：Good Chinese Brand
  • Lubrication：Maintenance-Free Grease Filled
  • Color：Blue,Silver or on Request
  • Ambient Temperature：-10-40 Degree
  • Warranty：1 Year
  • Lead Time：10-15 Days
  • Transport Package：Carton+Pallets
  • Specification：G3LM-G3FM-G3LS-G3FS 0.1-0.2-0.4-0.75-1.5-2.2KW
  • Trademark：On Request
  • Origin：Taizhou, Zhejiang, China
  • HS Code：8483409090
  • Production Capacity：200PCS,Day

Description

Overview

Product Description

MAIN FEATURES:
1) Made of high quality material,  non-rusting;Both flange and foot mounting available and suitable for all-round installation
2) Large output torque and high radiating efficiency
3)Precise grinding helical gear with Smooth running and low noise, no deformation,can work long time in dreadful condition
4)Nice appearance, durable service life and small volume, compact structure
5)Both two and three stage available with wide ratio range from 5 to 200
6)Different output shaft diameter available 18-22-28-32-40-50mm
7)Modular construction enlarge ratio from 5 to 1400

MAIN MATERIALS:
1)housing with aluminium alloyand cast iron material;
2)Output Shaft Material:20CrMnTi
3)Good quality no noise bearings to keep long service life
4)High performance oil seal to prevent from oil leakage

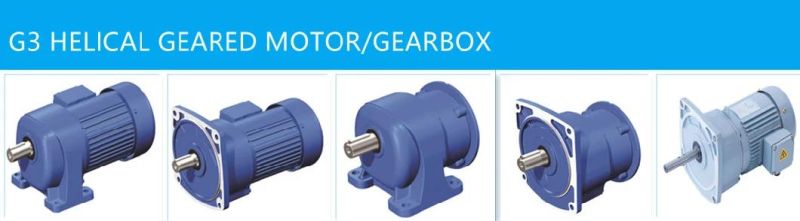

Detailed Photos

Inline Shaft G3 Helical Gear Reducer AC Geared Motor for Conveyor Transmission

Product Parameters




Company Profile

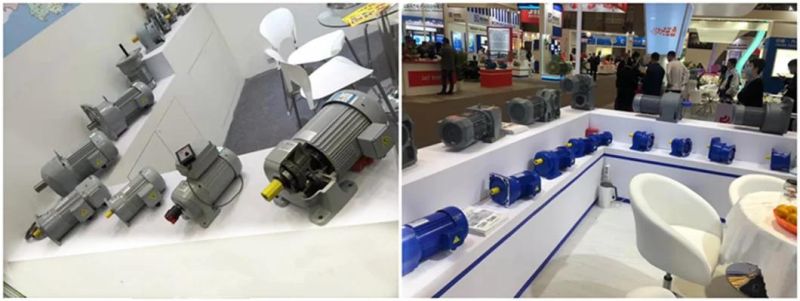

Exhibition

Shanghai PTC Fair:
Inline Shaft G3 Helical Gear Reducer AC Geared Motor for Conveyor Transmission

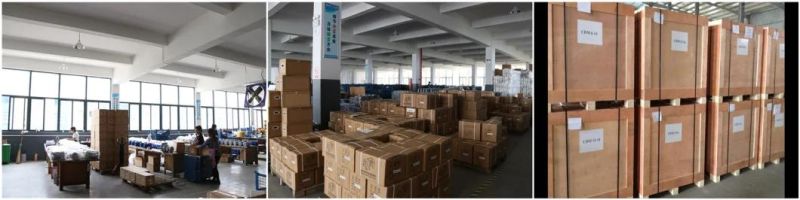

Packaging & Shipping


Inline Shaft G3 Helical Gear Reducer AC Geared Motor for Conveyor Transmission
Inline Shaft G3 Helical Gear Reducer AC Geared Motor for Conveyor Transmission

After Sales Service

FAQ

1.Q:Can you make as per customer drawing?
A: Yes, we offer customized service for customers accordingly. We can use customer's nameplate for gearboxes.
2.Q:What is your terms of payment ?
A: 30% deposit before production,balance T/T before delivery.
3.Q:Are you a trading company or manufacturer?
A:We are a manufacurer with advanced equipment and experienced workers.
4.Q:What's your production capacity?
A:4000-5000 PCS/MONTH
5.Q:Free sample is available or not?
A:Yes, we can supply free sample if customer agree to pay for the courier cost
6.Q:Do you have any certificate?
A:Yes, we have CE certificate and SGS certificate report.
