• Model NO.：5M-15mm
• Trademark：CNFULO
• Origin：Zhejiang
• HS Code：40103500
• Production Capacity：10 Million PCS,Year
• Package size per unit product：36000.00cm * 15.00cm * 0.50cm
• Gross weight per unit product：2.560kg
• Lead Time：10 days (1 - 10000 Meters) 15 days (10001 - 200000 Meters) To be negotiated ( > 200000 Meters)

Basic Info.

Model NO. 5M-15mm Trademark CNFULO Origin Zhejiang HS Code 40103500 Production Capacity 10 Million PCS/Year

Packaging & Delivery

Package size per unit product 36000.00cm * 15.00cm * 0.50cm Gross weight per unit product 2.560kg Lead Time 10 days (1 - 10000 Meters)
15 days (10001 - 200000 Meters)
To be negotiated ( > 200000 Meters)

Product Description

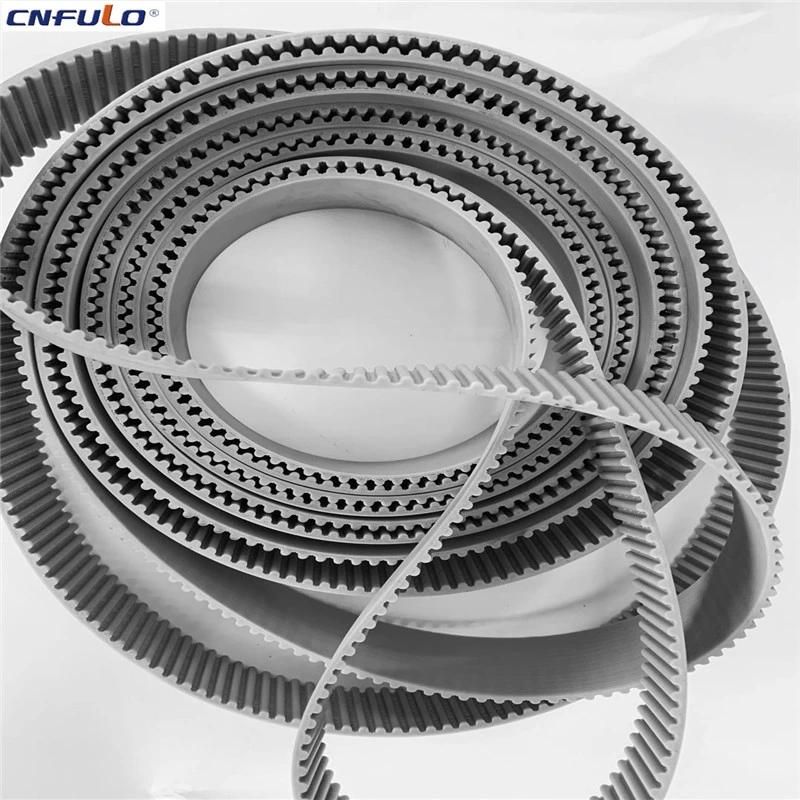

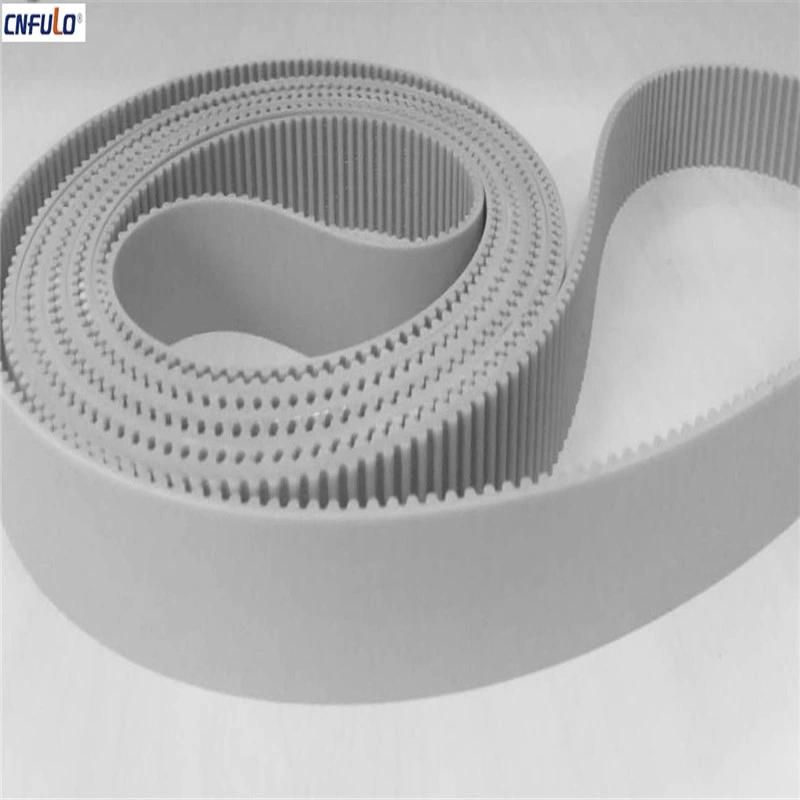

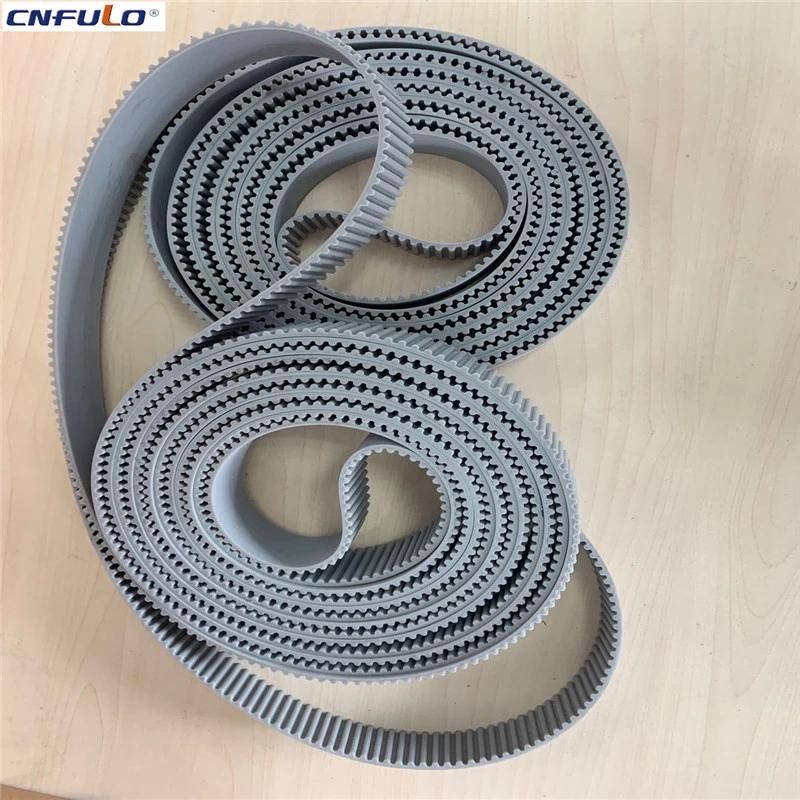

The construction for Polyurethane timing belt is composed of the back, tensile layer and belt tooth these three parts.

(1) Polyurethane Backing

The backing of timing belt is to cover with felt the tensile component. The capability is excellent in flexibility and resistance bent fatigue as well as anti-aging, oil resistance, wear out resistance. At the inner surface of the backing has appropriate shap grooves, with the exception of carfts requirements, but also it can improve the bent fatigue properties of tooth and evacuating the air between belt and tooth while in the process of running so that eliminating the noise.

(2) Tensile Layer-Steel Cord( or terylene cord)

The tensile layer is the tensile component of timing belt for which transfering the power and ensuring the pitch won't be changed during running. Multi-strand steel cord) or terylene cord ) spiraled around the fabric along the rubber belt width, it defines as pitch. The tensile layer must be high tensile strength and bend fatigue strength resistance. Large elasticity moduls and non-stretched feature ensure the pitch can't be changed.

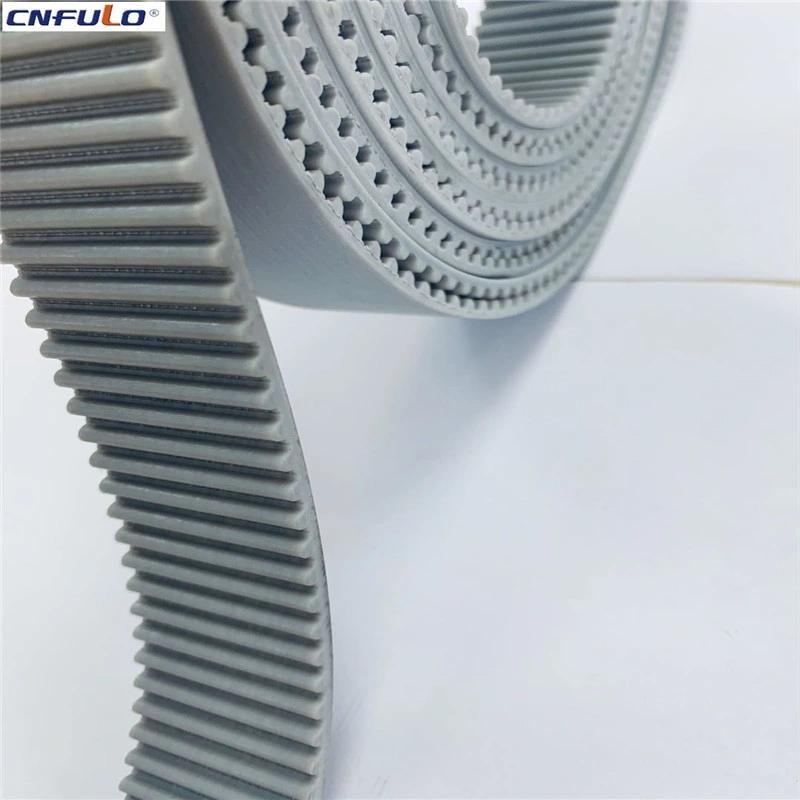

(3) Polyurethane Tooth

Polyurethane tooth should be high resistance shear strength, excellent in resistance wear out and anti-oil. The requirement for pitch array of tooth is very high, the belt tooth should be mesh with pulley correctly, therefore, the correction requirement for tooth geometry parameter is considerable strictly. The polyurethane timing belt is famous for excellent oil resistance and wear out resistance which is suit for the medium power high speed condition, the entironment should be comparative dry and the running temperature is at -20~+80 C.

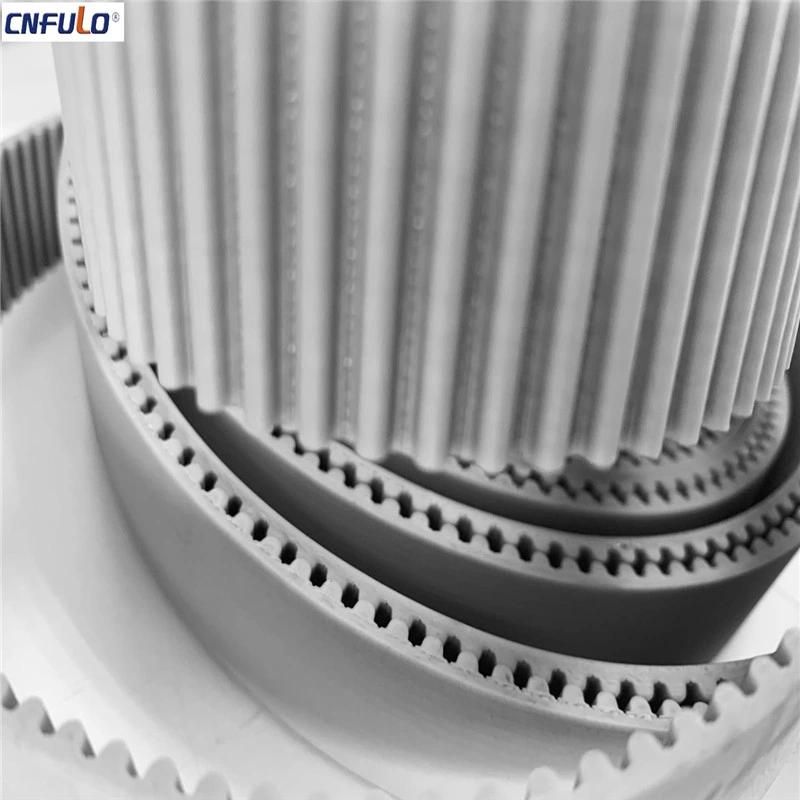

Polyurethane endless transmission belt is made from special molding process.

Excell polyurethane material made the belt has wear out resistance and tear resistance performance.

The steel cord increased the belt strength and tensile resistance made the belt has good dimensional stability

Small tolerance of polyurethane endless transmission blet ensured the accuracy of thickness and length.

Above properties made the polyurethane transmission belt have higher physical and chemical stability.

Seamless Polyurethane Timing Belt is applied to high strength, high accuracy even high speed transmssion system.


Polyurethane belt perforamance
Physical Property
- Stable Dimension
- Low Pull
- Small Noise
- Wear Out Resistance
- No need to maintain
- Excellent Elasticity
- Top linear speed








Chemical Property
- Anti Aging, Anti Hydrolyze, Anti UVAAnti-Ozone
- Work Temperature: -30 ~+80 The Max. Degree within short time can bear +110- Anti-oil and anti-ester
- Anti acid, alkaline cautery resistance

Seamless Polyurethane Timing Belt is excellent applied to low-load synchronous hierarchical transmission, such as office automation systems and home appliances

Type	Pitch Pb(mm)	Tooth height ht(mm)	Belt thickness hs(mm)
XL	5.080	1.27	2.30
L	9.525	1.91	3.60
H	12.70	2.29	4.30
3M	3	1.17	2.4
5M	5	2.06	3.8
8M	8	3.36	6.00
T5	5	1.20	2.20
T10	10	2.50	4.50
AT5	5	1.20	2.70
AT10	10	2.50	5.00
