Good Quality of Single Screw Plastic Extruder Gearbox
Hangzhou Xiaoshan Shuguang Machinery Factory- Hardness：Hardened
- Type：Bevel Gear
- Color：as The Customer′s Requirement
- Material：High Strength Alloy Steel
- Specially Use：Plastic Extruder
- Manufacturing Method：Cast Gear
Base Info
- Model NO.：ZLYJ series
- Toothed Portion Shape：Bevel Wheel
- Transport Package：Wooden Cases
- Trademark：SG
- Origin：Zhejiang, China(Mainland)
- HS Code：8483409000
- Production Capacity：100000 PCS,Year
Description
Basic Info.
Model NO. ZLYJ series Toothed Portion Shape Bevel Wheel Transport Package Wooden Cases Trademark SG Origin Zhejiang, China(Mainland) HS Code 8483409000 Production Capacity 100000 PCS/YearProduct Description
ZLYJ/ZSYJ Single sclew plastic extruder gear box series
ZLYJ series gearbox is the high-precision transmission device with hard tooth surface and trust bearing designed for single screw extruder. The product design adopts various technical codes regulated by JB/T9050.1-1999.
Main product features:
1. The gear of gearbox adopts high-strength alloy steel, grinded after carburizing and quenching treatment, with level 6 precision. The gear rigidness reaches HRC54-62 and the transmission noise is low.
2. Equipped with thrust bearing with high bearing capacity, with reliable performance, can bear large axial thrust.
3. Equipped with forced lubrication and cooling system except for some small specification product.
4. ZLYJ series gearbox adopts six-side processing box, and can be vertically installed according to the user's requirement besides traditional horizontal installation.
5. The gearbox has high transmission efficiency, low noise, and can guarantee long-term operation.

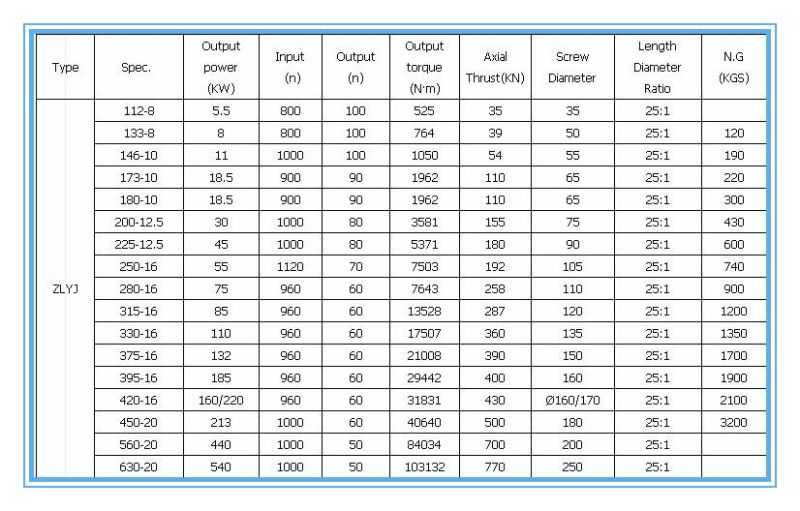

Parameters

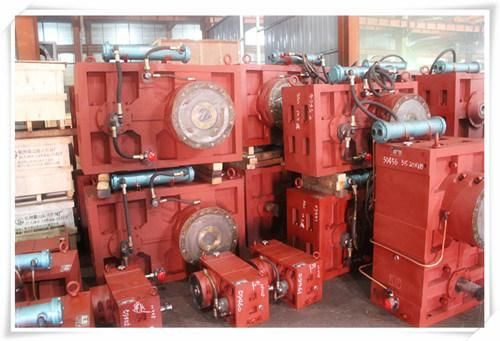

Product show
