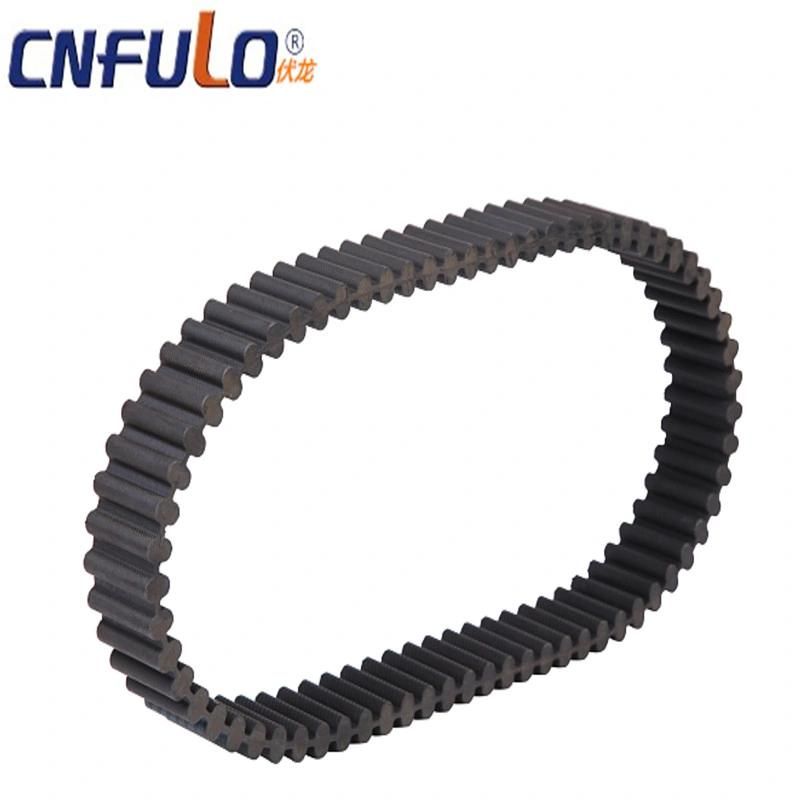

High Quality Double Sided Rubber Timing Belts D-8m D-5m D-14m D-H

Ningbo Fulong Synchronous Belt Co., Ltd.

Application：Textile Machinery, Garment Machinery, Conveyer Equipment, Packaging Machinery, Electric Cars, Motorcycle, Food Machinery, Marine, Mining Equipment, Agricultural Machinery, Car
Feature：Flame-Retardant, Anti-Static, Oil-Resistant, Cold-Resistant, Heat-Resistant, Skid-Resistance, Wear-Resistant, High Temperature-Resistance

Base Info

Model NO.：ALL sizes HTD STD RPP 5M 8M 14M
Tensile Strength：Strong
Material：Rubber
Type：Toothed Belt
Transport Package：Carton Box
Specification：400*500*480
Trademark：CNFULO
Origin：China
HS Code：4010350000
Production Capacity：20000 PCS , Week

Description

TYPESUPPLY CHARACTERISTIC

MXL XXL XL L H XH XXH

T2.5 T5 T10 T20 AT5 AT10 AT20
HTD:2M 3M 5M 8M 14M 20M
STS:S2M S3M S4.5M S5M S8M S14M
RPP:RP2M RP3M RP5M RP8M RP14M

1.Company leading products, more than 4000 moulds are available.
2.Cutting or provide sleeve according to customer's requirement.
3.Anti-static,heat-resistant,low temperature resistance ect.
4. Normal product no minimum order quantity requirements.TypePitch Pb(mm)Tooth height ht(mm)Belt thickness hs(mm)Angle β°DetailsMXL2.0320.511.1440DetailsXXL3.1750.761.5250DetailsXL5.0801.272.3050DetailsL9.5251.913.6040DetailsH12.702.294.3040DetailsXH22.2256.3511.2040DetailsXXH31.7509.5315.7040DetailsT2.52.50.71.3040DetailsT551.202.2040DetailsT10102.504.5040DetailsT20205.008.0040DetailsAT551.202.7050DetailsAT10102.505.0050DetailsAT20205.009.0050DetailsTypePitch Pb(mm)Tooth height ht(mm)Belt thickness hs(mm)Angle β°Details

HTD

2M20.751.36Details3M31.172.4Details5M52.063.8Details8M83.366.00Details14M146.0210.00Details20M208.413.20Details

STPD/STS

S2M20.761.36DetailsS3M31.142.20DetailsS4.5M4.51.712.81DetailsS5M51.913.4DetailsS8M83.055.3DetailsS14M145.310.2Details

RPP/HPPD

2M20.761.36Details3M31.151.9Details5M51.953.5Details8M83.25.5Details14M146.0010De
