• Model NO.：KC10020
• Material：Cast Steel
• Type：Universal Coupling
• All Weight：32.4kg
• Casing Weight：4.6kg
• Color：Green & Yellow
• Chain Type：100-2*22
• Casing Material：Aluminum
• Transport Package：Wooden Case
• Specification：KC10020
• Trademark：KASIN
• Origin：China
• HS Code：8483600090
• Production Capacity：2500000set,Year

Basic Info.

Model NO. KC10020 Material Cast Steel Type Universal Coupling All Weight 32.4kg Casing Weight 4.6kg Color Green & Yellow Chain Type 100-2*22 Casing Material Aluminum Transport Package Wooden Case Specification KC10020 Trademark KASIN Origin China HS Code 8483600090 Production Capacity 2500000set/Year

Product Description

Product Description

     The roller chain coupling is a flexible coupling of amazingly simple construction. It consists of a combination of one coupling chain and a pair of coupling sprockets. Flexible and strong, the  roller chain coupling is suitable for a wide range of coupling applications.
     Roller chain coupling can used for the environment which with high temperature, wet and dirty conditions. It is not suitable for the occasion which is in high speed and with strong impact load. Roller chain coupling should working with excellent lubrication and protection cover conditions.
The common chain coupling includes double roller chain coupling, single row roller chain coupling, tooth shape chain coupling, nylon chain coupling. Its scale is compact and its weight is light. But roller chain coupling don't have high requirement to installation precision.
     Generally speaking, it is usually in long service life. Production line equipment for various kinds of frozen food and dehydrated vegetables should transport by stainless steel chain. Roller chains are widely applied to household, industrial and agricultural machinery, includes conveyor, drawing machine, printing machine, automobile, motorcycle and bicycle.

Main Features
1.Simple structure,easy assembly and disassembly.
2.Light weight,and long service life.
3.Have a certain ability to compensate for installation less precision.
4.Suitable for high temperature,wet and dusty industrial environment.
5.Can not for high speed,violent vibration.

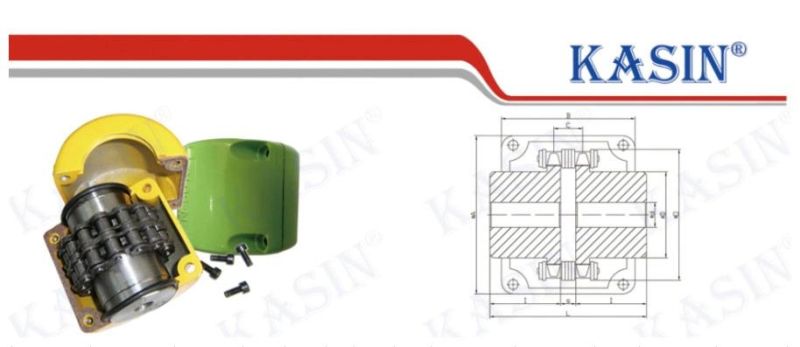

Techncial Date

KASIN No.	Chain Type	d	L	G	S	D	H	C	Weight/Kg	A	B	Casing Weight/Kg
3012	06B-2 × 12	12~16	64.8	29.8	5.2	35	45	10.2	0.31	69	63	0.22
4012	40-2 × 12	12~22	79.4	36	7.4	35	62	14.4	0.73	77	72	0.3
4014	40-2 × 14	12~28	79.4	36	7.4	43	69	14.4	1.12	84	75	0.31
4016	40-2 × 16	14~32	87.4	40	7.4	50	77	14.4	1.5	92	72	0.35
5014	50-2 × 14	15~35	99.7	45	9.7	55	86	18.1	2.15	101	85	0.47
5016	50-2 × 16	16~40	99.7	45	9.7	62	93	18.1	2.75	110	87	0.5
5018	50-2 × 18	16~45	99.7	45	9.7	70	106	18.1	3.6	122	85	0.6
6018	60-2 × 18	20~56	123.5	56	11.5	85	127	22.8	6.55	147	105	1.2
6020	60-2 × 20	20~60	123.5	56	11.5	100	139	22.8	8.38	158	105	1.6
6022	60-2 × 22	20~71	123.5	56	11.5	110	151	22.8	10.4	168	117	1.8
8018	80-2 × 18	20~80	141.2	63	15.2	110	169	29.3	13.2	190	129	2.5
8020	80-2 × 20	20~90	145.2	65	15.2	120	185	29.3	16.2	210	137	2.9
8022	80-2 × 22	20~100	157.2	71	15.2	140	202	29.3	21.8	226	137	3.6
10020	100-2 × 22	65~110	178.8	80	18.8	162	233	38.8	32.4	281	153	4.6
12018	120-2 × 18	35~125	202.7	90	22.7	170	256	45.4	43.2	307	181	6.2
12022	120-2 × 22	35~140	222.7	100	22.7	210	304	45.4	69.1	357	181	8.1

Related Products

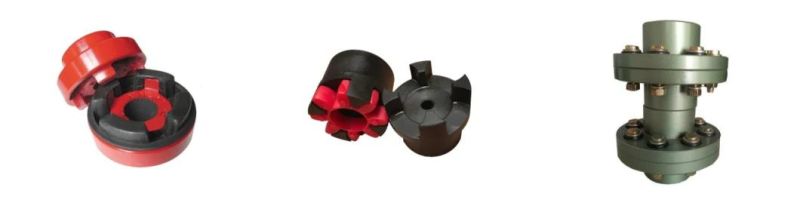

                           NM Coupling                                                          Curved Jaw Coupling                                          FCL Coupling

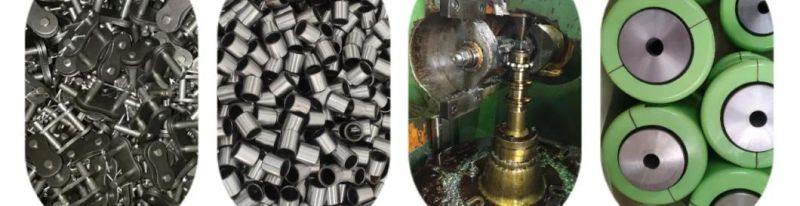

Manufacturing

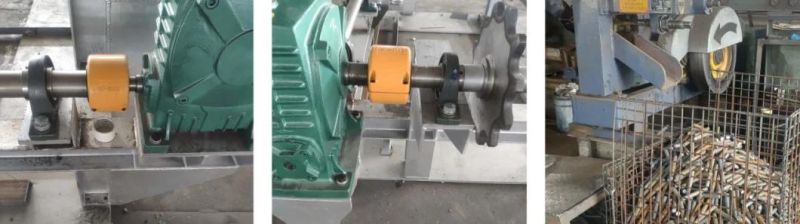

Applications:

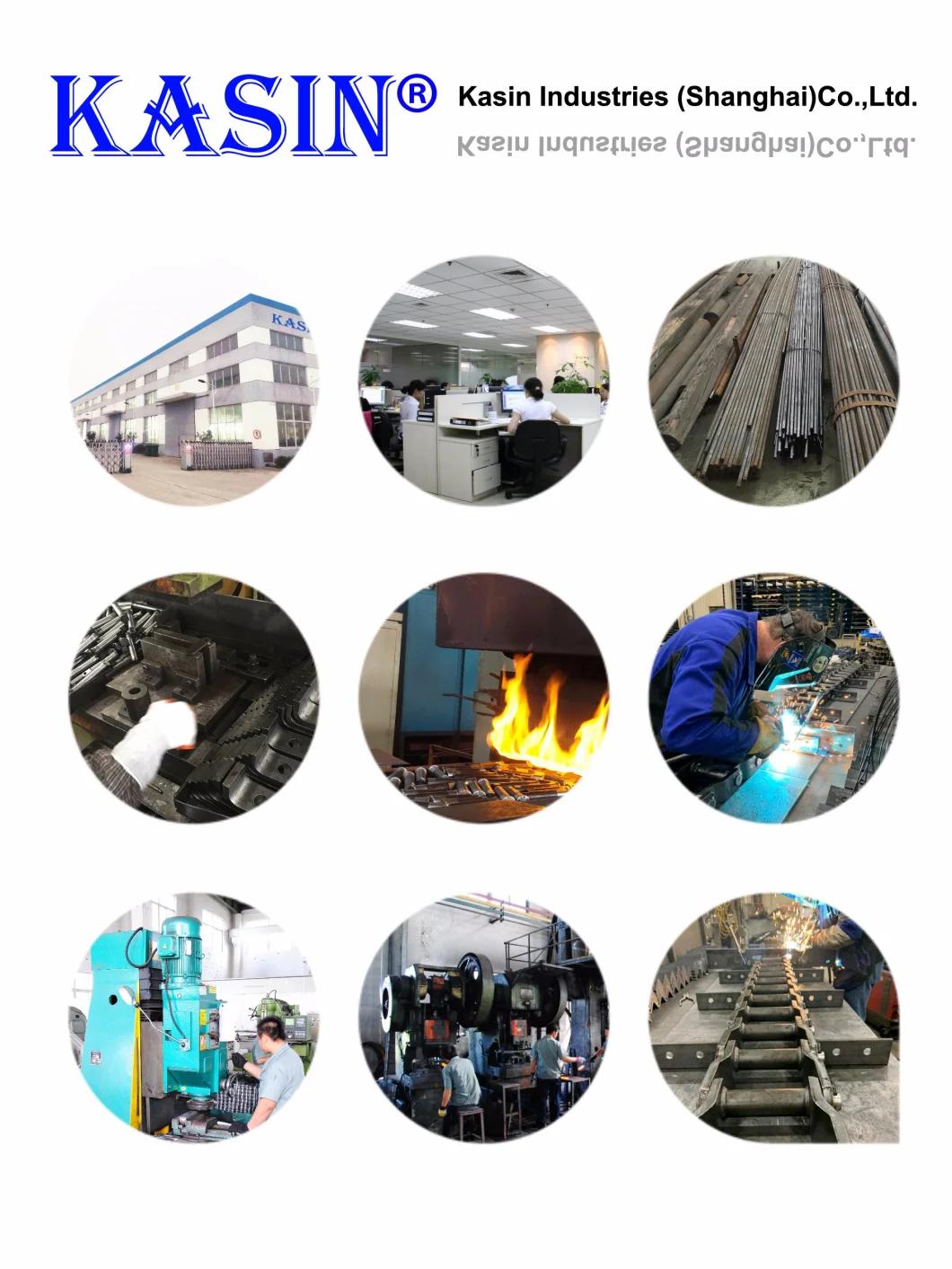

About Us

Kasin group was established in 1989, and its first product is casting carrier trolley for power & free conveyor system. In 1995, Kasin purchased Luoyang Guoping Forging Factory (LYGP), a marketer of forging bolts & nuts to power & free line market in china. With this acquisition, Kasin positioned itself as one of major parts suppliers of monorail and power & free conveyor system in china.

In 2005, H&H Corp., a professional manufacturer of large size conveyor chain, was purchased a portion as sharehould by Kasin, and worked as export window to all over the world, especially bucket elevator chain, sugar mill chain, welded mill scaper chain.

In 2015, Kasin established itself machinery company/Kasin machinery(Henan)Co.,Ltd., produced fleixible coupling, eg: FCL Coupling, NM Coupling, Curved Jaw Coupling, Chain Coupling andJaw Coupling.

Nowadays,Kasin is one of the biggest professional specialist of Engineering Class Conveyor Chain, Drop Forged Rivetless Chain,  Forged Chain, Sugar Mill Chain, Bucket Elevator Chain, Flexible Couplings and 100% to oversea market, covering Japan, U.S. and Europ etc.

With the certificate of ISO 9001 and GB/T 19001, Kasin provide top quality products at the reasonable price, to win-win situation in long-terms cooperation, adhering to the slogan: "FIRST TIME, EVERY TIME".

Our mission is to provide highest quality products at the best possible price. And in doing so, to provide an unmatched customer experience and to build customer trust and satisfaction. Honest, Quality, Efficient, Developing, Security the five crucial components constituting KASIN, which is the key motto for all of the KASIN employees. Therefore, we keep striving to build a corporate system that is highly appreciated and we hope that you continue to select and use Kasin products with pride and satisfaction.

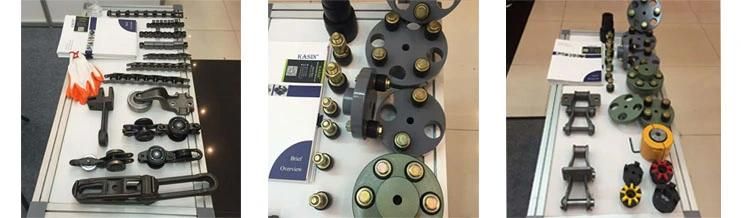

Exhibition





Certificates




Our Service

1. The questions about the coupling will be answered within 24 hours.

2.  Update the procession of manufacturing.

3. Our professional engineer can answer technical questions,help you solve technical problems and   help you choose the most suitable product according to your requirment.

4. Warranty 12 months: Free replacement of defective products within 12 months.

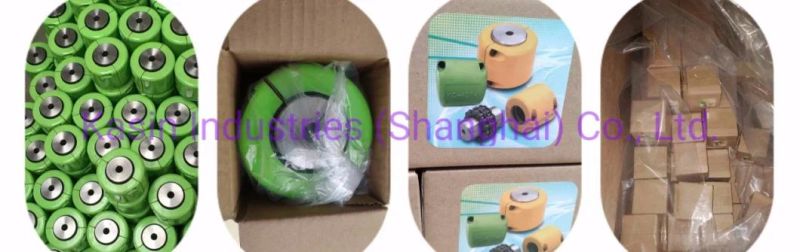

Packing Details & Delivery
