Cw/Wh Series Hollow Flank Worm Reducer Whx280

Jiangsu Province Jinxiang Transmission Equipment Co., Ltd.
  • Standard or Nonstandard：Standard
  • Application：Food Machinery
  • Spiral Line：Right-Handed Rotation
  • Head：Multiple-Head
  • Transport Package：Wooden Box
  • Trademark：JINXIANG

Base Info

  • Model NO.：Whx280
  • Origin：Huaian

Description

Basic Info.

Model NO. Whx280 Origin Huaian

Product Description

CW/WH series hollow flank worm gearbox is divided into circular cylindrical worm reducer (GB9147-88) and circular arc tooth cylindrical worm reducer series, using the single-stage worm reduction drive. Suitable for metallurgy, mining, lifting, transport, cement, textile, chemical, construction, energy, light industry and other industry machinery reduction drive.

  • Reducer input speed n1 1500 r/min or less.
  • Reducer working environment temperature for - 40 ~ 40 ºC; When the working environment temperature is lower than 0 ºC, before the start of the lubricating oil must be heated to 0 ºC above; When the working environment temperature is higher than 40 ºC, the cooling measures must be taken.

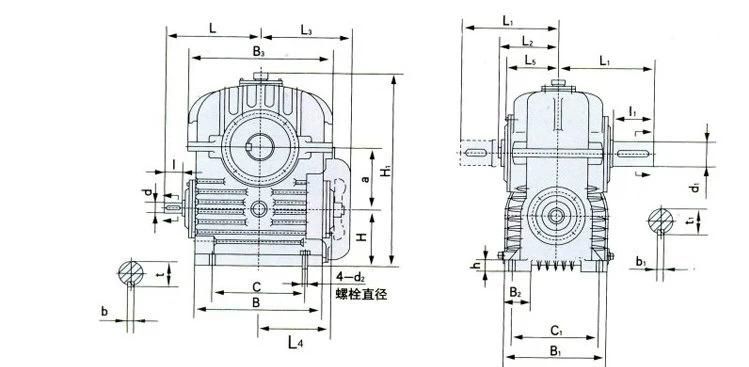

Cw/Wh Series Hollow Flank Worm Reducer Whx280

Cw/Wh Series Hollow Flank Worm Reducer Whx280



Model: WHX280

Ratio: 5, 6.3, 8, 10, 12.5, 16, 20, 25, 31.5, 40, 50, 63(could be changed according to customer).
Input speed(rpm): 750, 1000, 1500(could be changed according to customer)
Input power(kW): 3.5-189
Center distance(mm): 280
Weight(kg): 550
