Dlk1-5 Electromagnetic Brake Dry Type Multidisc Electromagnetic Clutch
Changzhou Suma Precision Machinery Co., Ltd.- Application：Textile Machinery, Garment Machinery, Conveyer Equipment, Packaging Machinery, Mining Equipment, Agricultural Machinery
- Surface Treatment：Other
- Material：Steel
- Product Name：Dlk1-5 Electromagnetic Brake Dry Type Multidisc EL
- Type：Multi Disc Type
- OEM：Accept
Base Info
- Model NO.：DLK1-5
- Market：Global
- Transport Package：Single Box or as Your Requirements
- Specification：P0
- Trademark：SUMA
- Origin：Changzhou, Jiangsu, China
- HS Code：84836000
- Production Capacity：1000PCS,Month
Description
Basic Info.
Model NO. DLK1-5 Market Global Transport Package Single Box or as Your Requirements Specification P0 Trademark SUMA Origin Changzhou, Jiangsu, China HS Code 84836000 Production Capacity 1000PCS/MonthProduct Description

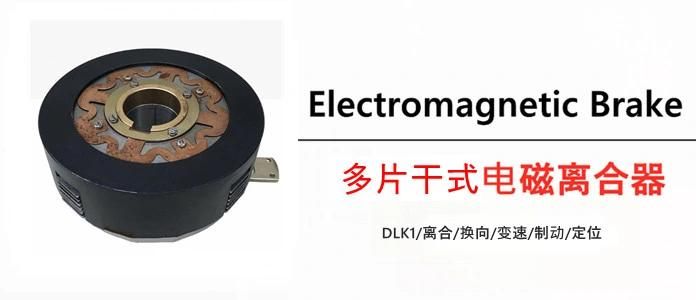

DLK1-5 Electromagnetic Brake Dry Type Multidisc Electromagnetic Clutch
Description of DLK1-5 Electromagnetic Brake Dry Type Multidisc Electromagnetic Clutch
DLK1 series is a multi-chip electromagnetic clutch with no slip ring and power-on operation. The coil does not rotate, a friction pair, compact structure, large transfer moment, fast response and no no-load loss. The mechanical transmission system suitable for high frequency operation can combine or separate the driven part and the active part when the active part is running. It is widely used in packaging machinery, printing machinery, textile machinery, light industry machinery and office machinery.
The clutch can work reliably under the following conditions:
1. The ambient air temperature is 5 ºC+40 ºC.
2. There is no gas or conductive dust that corrodes metals and destroys insulation in a medium without explosion risk.
3. Clutch must work under the condition of lubricating oil.
4. Voltage fluctuation of clutch coil does not exceed rated voltage of + 5% and - 15%.
5. The clutch installation site shall not exceed 200 meters above sea level.
The advantages of electromagnetic clutch are as follows:
1. Non-slip ring, coil static type, more convenient power supply.
2. Small volume and large moment.
3. Low-state combination and higher operation.
4. Responding leaf spring and sensitive action.
