Power Transmission Parts

China Manufacturer Gear Motor for Car Parking System

Zhejiang Donghai Reducer Co., Ltd.
  • Application:Motor, Machinery, Car Parking System
  • Hardness:Hardened Tooth Surface
  • Installation:Horizontal Type
  • Layout:Coaxial
  • Gear Shape:Helical
  • Step:Three-Step

Base Info

  • Model NO.:DHTC series
  • Type:Gear Reducer
  • Mount Position:Foot Mounted
  • Input Speed:1400 Rpm
  • Insulation Protection:IP 55
  • Certification:ISO 9000 CE CCC
  • Transport Package:Wooden Carton
  • Specification:2 sets in one carton
  • Trademark:Donghai , TGS
  • Origin:Zhejiang, China
  • HS Code:8483409000
  • Production Capacity:5000000 Pieces ,Year

Description

Basic Info.

Model NO. DHTC series Type Gear Reducer Mount Position Foot Mounted Input Speed 1400 Rpm Insulation Protection IP 55 Certification ISO 9000 CE CCC Transport Package Wooden Carton Specification 2 sets in one carton Trademark Donghai / TGS Origin Zhejiang, China HS Code 8483409000 Production Capacity 5000000 Pieces /Year

Product Description

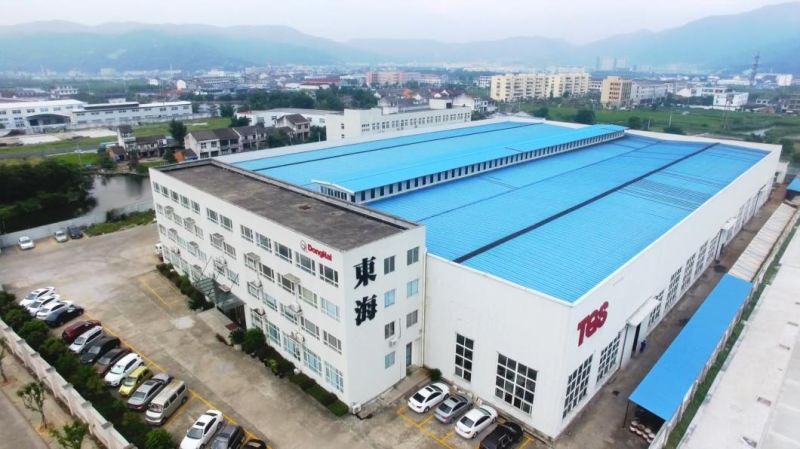

Company  Profiles



-We are a leading gear motor manufacturer
Zhejiang Donghai Reducer is a leading manufacturer of gear motor and gearbox.
Since 1991, we have specialized in manufacturing a wide range of gear motor and gear box including:




  • helical gear motor
  • helical bevel gear motor
  • parallel shaft helical gear motor
  • helical worm gear motor
  • hoist drive
  • heavy-duty helical gearbox
  • heavy-duty helical bevel gearbox
  • gear motor for car parking system
  • sprial bevel gearbox
China Manufacturer Gear Motor for Car Parking System

Product Description


DHTC series gear motor for car parking lifting system

The brake adopts flat spring-loaded electromagnetic brake.Its braking rate is 182%, and quick brake time is 0.03s to 0.05s. The fast brake locking value is less than 5cm.With the non-asbestos brake disc dry friction, the overall brake is equipped with titanium cover plate to prevent the damp brake from malfunctioning, which can keep working at full load all day. The input voltage of the fast brake rectifier is 270VAC 50/60Hz, the insulation withstand voltage is 1800VAC 50Hz 1min, and the service life is 1 million times.

The motor adopts aluminum alloy hot high-pressure casting, all copper wire copper enameled wire through deep dipping, insulation class F, protection class IP55, working system S1 operation, moisture-proof and dust-proof fully sealed. Suitable for outdoor working environment +80 ºC to -25 ºC, and not suitable for direct corrosion of objects, the motor power is more than 1.2 times the national standard value.

The special reducer (reduction motor) uses 20CrMnTi gear steel, which is carburized to ensure the hard tooth surface and strength, and is processed by CNC precision grinding to ensure the technical requirements of gear hardness and accuracy. Reducer load operation noise is less than 52dB (A), fully sealed and no oil leakage, maintenance-free and zero-fault design method is adopted, and the service life is 30 years.

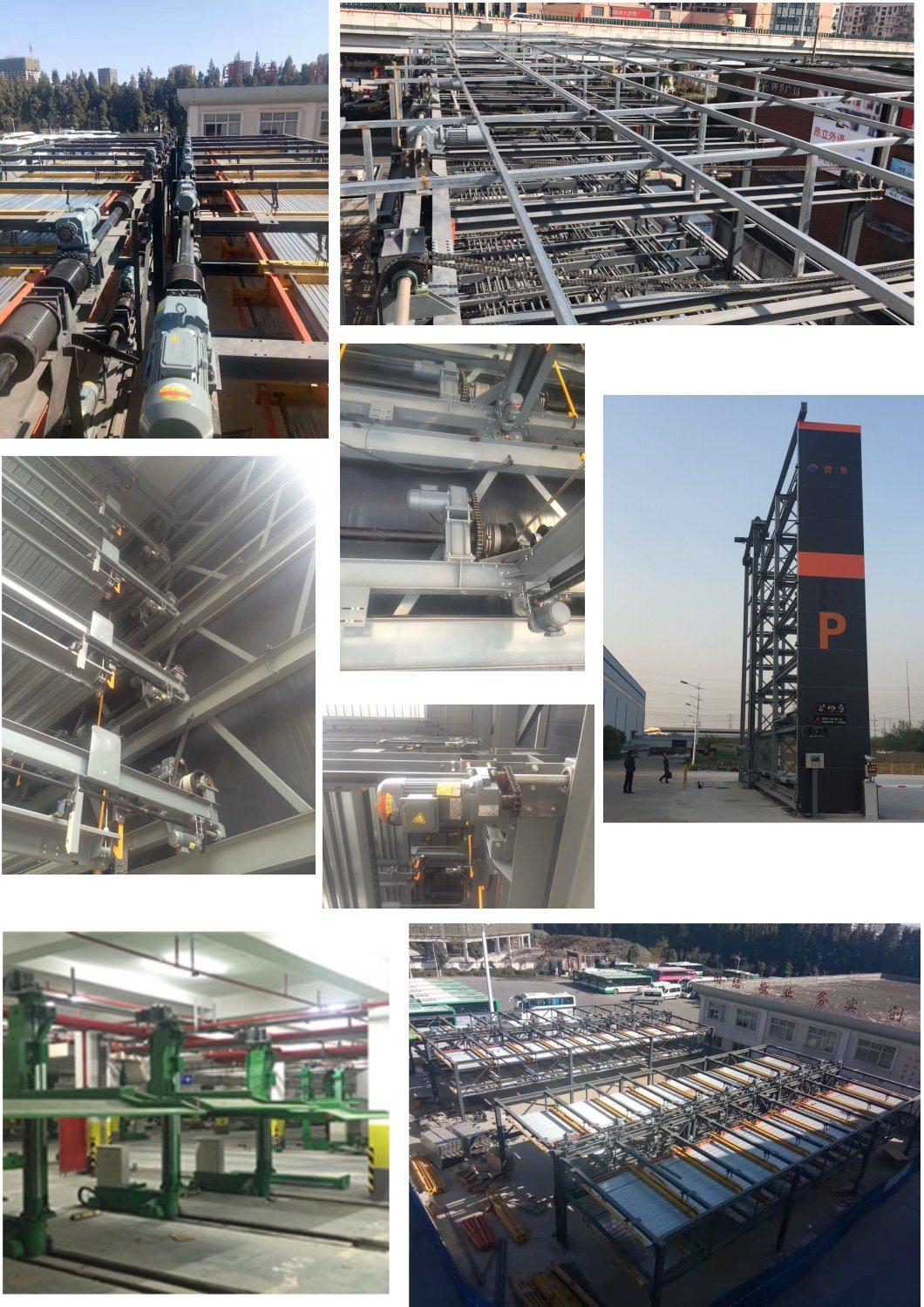

Product Show
China Manufacturer Gear Motor for Car Parking System

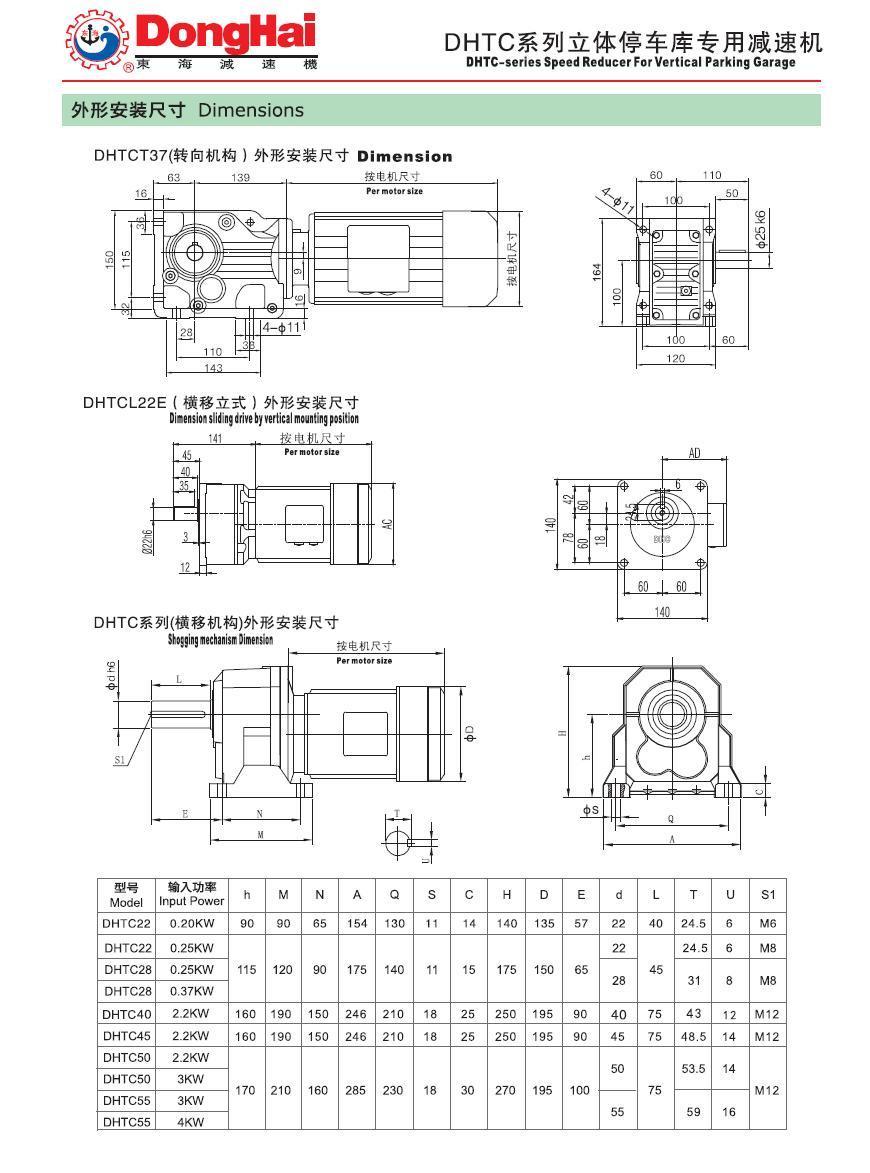

Product Specification

China Manufacturer Gear Motor for Car Parking System




Package

Plastic bag + wooden carton


Certificate

China Manufacturer Gear Motor for Car Parking System


China Manufacturer Gear Motor for Car Parking SystemChina Manufacturer Gear Motor for Car Parking System

FAQ

Q: Can you print other colors?
Yes. Customized color can be printed on the gear motor according to your requirements.
Q: Is that factory price?
Yes. We assure you all prices are based on factory.
Q:  What is the life span? what is the guarantee
The lifespan of gear motor can reach 5-20 years depending on different working conditions .The guarantee time is one year after delivery.
Q: What documents are available?
A full range documents including structural drawings, packing list, installation manual and relative certificates can be provided. Moreover, customs declaration is provided. We provide one-stop service for you.
Q: Is it able to customized?
yes, we could re-design and produce the gear motor as your requirements if the quantity is large.
